LOG CARRIAGE -TANDEM BAND SAW

ÜSTÜNKARLI UTA_Z4/UHM120_H_T

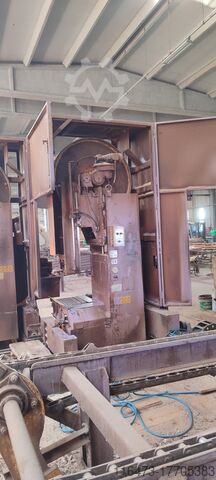

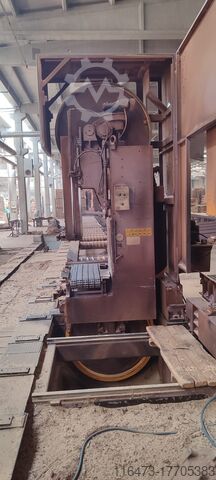

UHM120_H_T TANDEM BAND SAW
Diameter of Wheels Ø 1200 mm
Width of Wheels 140 mm
Max. Cutting Height 1090 mm
Max. Cutting Width 620 mm
Upper Wheel Tilting 2×0.37 kW
Movement of the Tandem 0.75 kW
Hydraulic Unit Motor 2.2 kW
Main Motor 2×45 kW – 1450 rpm
Weight without Motor ~9000 kg

• Capability to saw two timbers in one pass by tandem lined two band saws
• Timber thickness is adjusted by two axes control system on band saw and log carriage system
Gijdpfx Aeu Rmqiopqou


UTA_Z4 HYDRAULIC LOG CARRIAGE
Max opening of headblocks :1000 mm
Max opening of hooks : 1070 mm
Forwarding speed :160 m/min
Speed of headblocks :320 mm/sec
Hydraulic unit of forwarding :22 kW
Headblocks : 4 pcs
Width of rails : 1220 mm

• Fixed fence-horizontol movable hooks. The distance between fence and hooks can be adjusted to desired position min: 35 mm- max: 145 m
• Independent horizontal move hooks, log is able to be easily aligned according to cut axis while clamped and is able to be adjusted to a fix distance of the hook and the fence –min:15mm – max:145mm
• Two sets of joysticks with six button each to control head blocks, hooks and turning arms and 1 set of hydraulic pedal for carriage forward backward movement
Conveyors
1. 14 mt longitudinal log conveyor
2. 6 mt Trasnversal Log Decking
3. 7 mt Longitudinal Timber Conveyor
