Vidalı kompresör

ALMIG Combi XP 11-270D

Exhibition unit, immediately available:

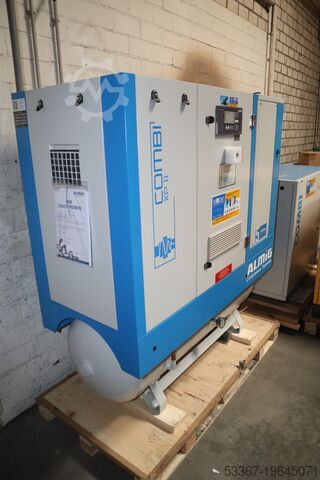

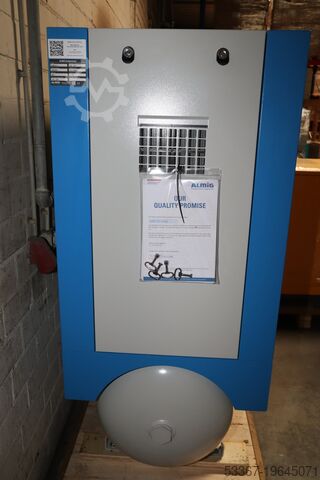

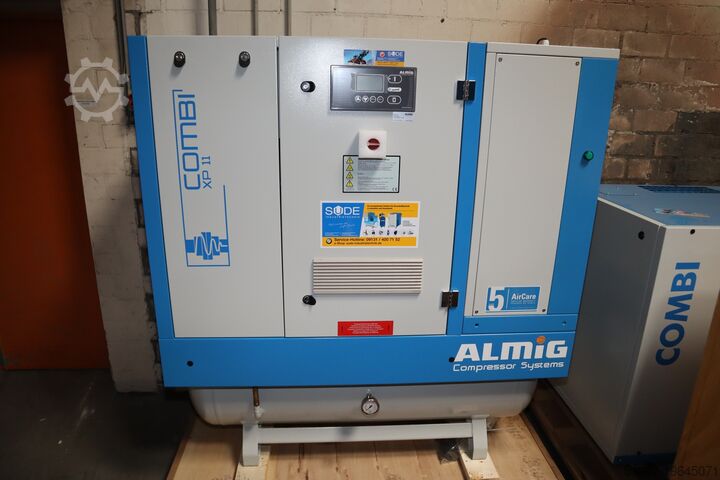

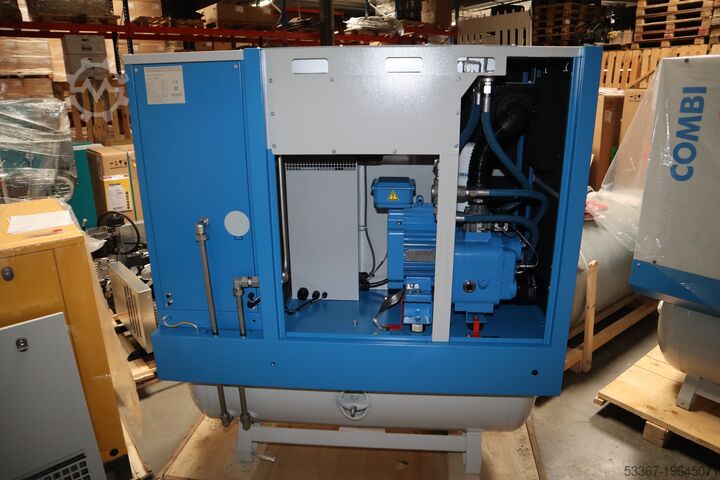

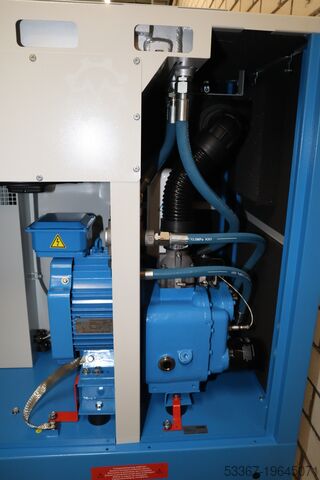

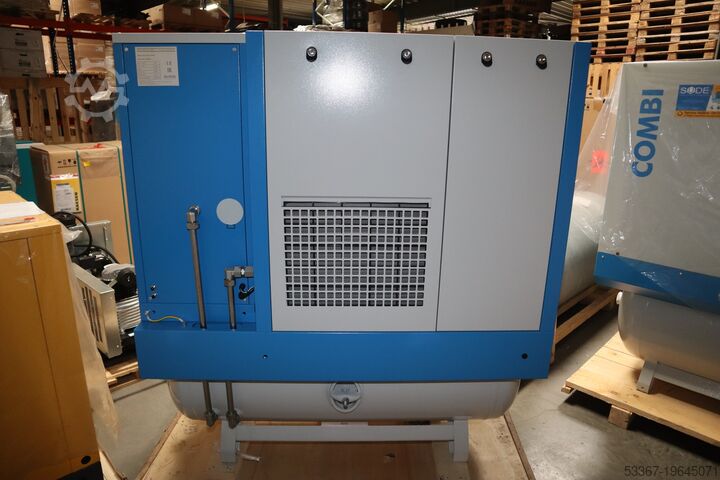

Almig variable screw compressor COMBI XP 11-270D – 11 kW –
with integrated refrigeration dryer with time-controlled condensate drain
with 270 liter tank
with Aircontrol Base controller

Model: Combi XP 11-270 D

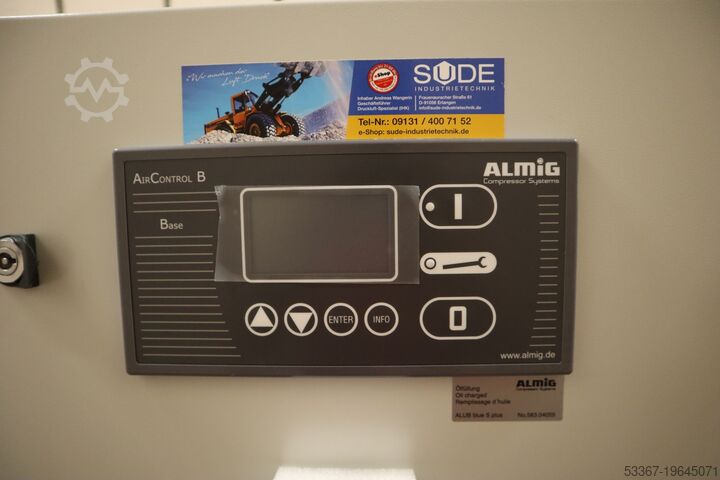

Controller: AIR CONTROL BASE
Year: 2025

Technical Data
Model: Combi XP 11-270D
Adjustable operating pressure (continuously adjustable): 5 – 13 bar

Free air delivery at minimum / maximum speed, measured according to ISO 1217 Annex C:
at 5 bar (g): 0.30 to 2.00 m³/min
at 6 bar (g): 0.30 to 1.89 m³/min
at 7 bar (g): 0.30 to 1.78 m³/min
at 8 bar (g): 0.29 to 1.67 m³/min
at 9 bar (g): 0.29 to 1.57 m³/min
Dedpfx Aaew Duytogsur
at 10 bar (g): 0.29 to 1.46 m³/min
at 11 bar (g): 0.28 to 1.36 m³/min
at 12 bar (g): 0.28 to 1.24 m³/min
at 13 bar (g): 0.27 to 1.17 m³/min

Installed motor power: 11 kW
Degree of protection / insulation class drive motor: IP 23
Operating voltage / frequency: 400 / 60-315 V/Hz
Compressed air connection: 3/4" G

Dimensions and weight:
Length (mm): 1530
Width (mm): 700
Height (mm): 1640
Weight (kg): 590 kg

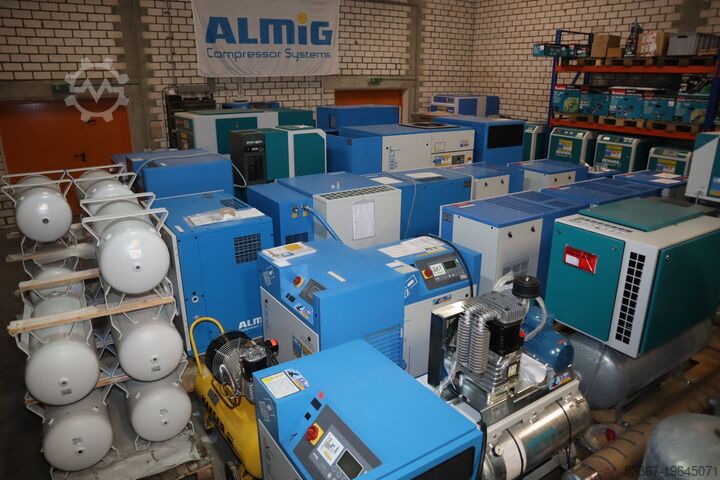

Visit our premises in Erlangen – we always have a large selection of new and used screw compressors in stock.
