Dağıtıcı testere tipi RP-500-G maks. yükseklik

AMIX Rozmietacia píla typ RP-500-G

1. Centring table CPRC-600, length 1.2 m
- length 3 m
- two feed speeds (working and return)
- two centring arms
- pneumatic clamping

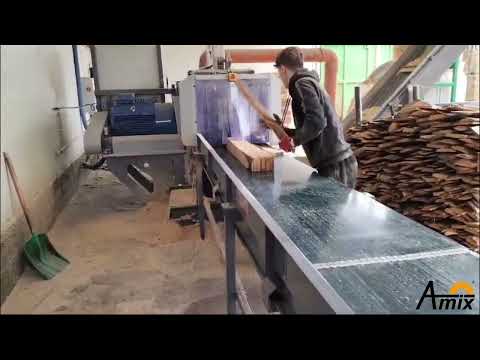

2. Multirip saw type RP-500-G, max. cutting height 160 mm
- saw shaft drive motor 55 kW, feed motor 2.2 kW (variable speed – inverter)
- chip conveyor belt for sawdust collection
- robust side press rollers for extraction of offcuts
- automatic feed control
- automatic bearing lubrication
- maximum number of saw blades on shaft: 15 pcs (Ø 450 x 70)
- maximum thickness of processed timber (cant): 160 mm
- minimum thickness of processed timber: 50 mm
- minimum length of processed timber: 1.2 m
- 6 lower drive shafts
- upper extraction: automatic pneumatic sawdust extraction, extraction pipe Ø 250 mm
- lower sawdust extraction + belt + diffuser, extraction pipe Ø 200 mm, portable control panel
- machine length: 2100 (2600) mm
- machine width: 2080 mm
- machine height: 1800 mm
- machine weight: 2200 kg
- machine capacity: 6–10 m³/h
- saw blades not included
Nkjdpfx Aeynkgiogfju
- power consumption approx. 62 kW

3. Outfeed conveyor DPTOZ-100 for ripped boards
- length 4 m
- 2 cross chains

4. Cross chain conveyor for sorting and removing boards
- width 1 m
- length 2.5 m

Very little used.
Like new.
TOP CONDITION.
