Freze makinesi - evrensel

BERNARDO UWF 130 SERVO DIGI

x-travel 1000 mm
y-travel 360 mm
z-travel 400 mm
Spindle taper ISO 40
Table: 1370 x 320 mm
Feed: Horizontal 80 - 830 / Vertical 23 - 625 mm/min
Speed: Horizontal 35 - 1500 / Vertical 45 - 1660 rpm
Distance spindle/table: Horizontal 30 - 430 / Vertical 210 - 610 mm
Rapid traverse Z-axis: 750 mm/min
Ksdpfxjxaagne Adpslp
Overhang: 305 - 805 mm
T-slots: 3 x 14.0 mm
Table – swiveling: °
Max. workpiece weight: 300 kg
Coolant pump: 25.0 L/min
Total power requirements: 7.6 kW
Machine weight approx.: 1540 kg
Dimensions LxWxH: 1840 x 1830 x 2050 mm

The universal milling machine UWF 130 Servo is a further development of the well-known UWF 130. The HURON milling head, adjustable to any angular position, and a travel distance of 1000 mm on the x-axis make this machine versatile in operation. A distinctive feature of this model is the rapid traverse and the 8-stage feed on all axes, powered by a servomotor (version "SERVO").

- Oversized box slideways on the y- and z-axis ensure increased stability
- 8-stage automatic feed and rapid traverse on all axes, driven by servomotor
- Universal milling head, Huron system, adjustable to any angular position
- Swiveling control panel with ergonomically arranged switches
- Heavy machine base made of cast iron for vibration-free operation
- High running smoothness due to ground, oil-bath lubricated gear wheels

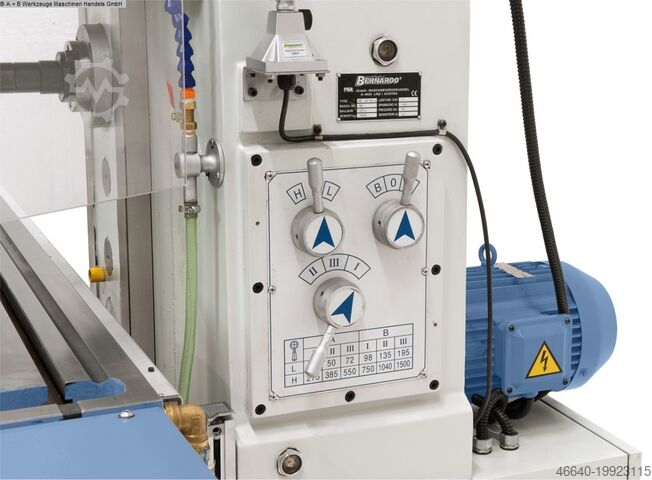

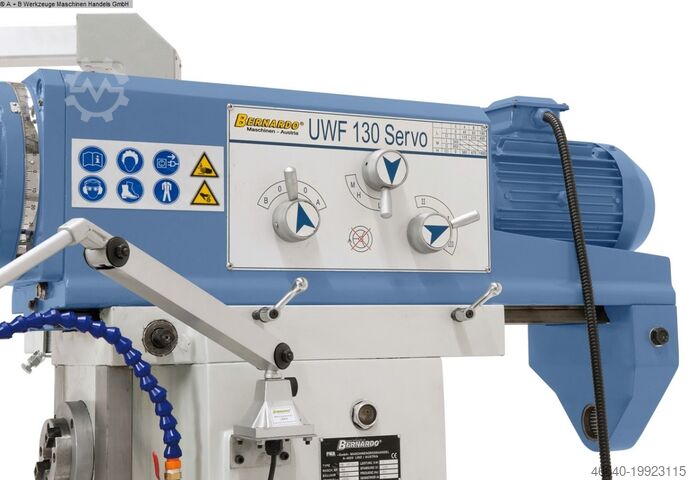

- Upper arm with clearly laid out gear shift for spindle speed setting
- Digital position display for x-, y-, and z-axes included
- Precisely surface-machined cross table with T-slots

Scope of delivery
- 3-axis digital readout ES-12 H with LCD display
- Drawbar M16
- LED machine lamp
- Feed for x-, y-, and z-axis
- Coolant system
- Counter support
- Long milling arbor ISO 40 / 27 mm
- Combination shell end mill arbor ISO 40 / 27 mm
- Coolant tray
- Adjustable safety device
- Central lubrication for x-, y-, and z-axis
- Operating tools
