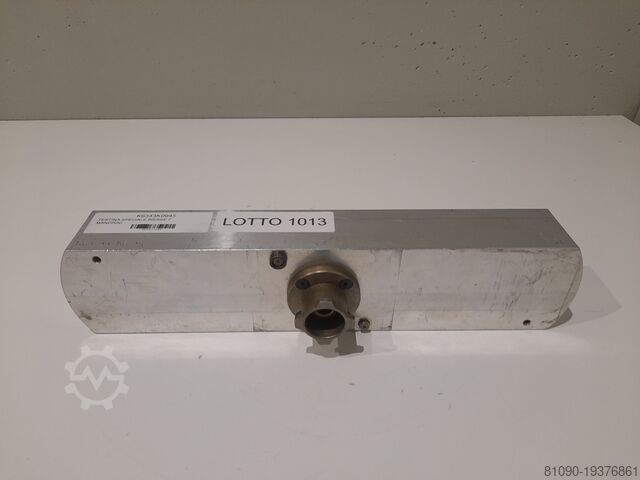

TEST.SPECIAL 7 MİLLİ EK 4 ADIM 57

BIESSE

Durumu: incelemesiz (kullanılmış), Üretim yılı: 2016, Fonksiyonellik: denenmemiş, kenar kalınlığı (maks.): 22 mm, dönüş hızı (maks.): 12.000 dev/dak, Donanım: CE işareti, The machine has the following configuration: - Pre-milling unit - Automatic, time-controlled intervention and positioning via NC - Lamps for preheating the panel edge - Edge strip magazine - Glue pot for EVA hot-melt adhesive - Pre-melter for EVA hot-melt adhesive QM-705 End trimming unit IN-801 - Number of motors: 2 Top and bottom trimming unit RS-100 - Number of motors: 2 - Motor power: 2 kW - Speed: 12,000 rpm Finishing and corner rounding unit RF-100 - Number of motors: 2 - Motor power: 2 kW - Speed: 12,000 rpm Corner rounding unit AR30 - Number of motors: 2 - Motor power: 0.8 kW - Speed: 12,000 rpm - Automatic, time-controlled intervention Cut-off unit RB02 - Positioning via NC Klodeyxndbjpfx Aagor Glue scraper unit RCC-701 Polishing unit SP-501 - Number of motors: 2 - Motor power: 0.25 kW Spraying unit LPT-700 TECHNICAL DETAILS - Minimum panel height: 10 mm - Maximum panel height: 60 mm - Minimum edge thickness: 0.4 mm - Maximum edge thickness: 22 mm MACHINE DETAILS - Total connected load: 22 kW EQUIPMENT - Pressure with rubber band - Panel support guides with NC positioning - CE marking The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial descriptive documents. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7673

Durumu: incelemesiz (kullanılmış), Üretim yılı: 2000, Fonksiyonellik: denenmemiş, X ekseni hareket mesafesi: 5.900 mm, Y ekseni hareket mesafesi: 1.560 mm, X ekseni ilerleme hızı: 80 m/dak, Y ekseni ilerleme hızı: 60 m/dak, dönüş hızı (maks.): 20.000 dev/dak, No reserve price – sale guaranteed to the highest bidder! TECHNICAL DETAILS X-axis working area: 5,900 mm Y-axis working area: 1,560 mm X-axis rapid traverse: 80 m/min Y-axis rapid traverse: 60 m/min Z-axis rapid traverse: 25 m/min Drilling spindles Vertical drilling spindles: 20 Horizontal drilling spindles in X direction: 6 Horizontal drilling spindles in Y direction: 2 Total number of vertical and horizontal spindles: 28 Milling spindles Number of controlled axes: 4 Motor power: 10 kW Speed: 20,000 rpm Tool magazine Number of positions: 10 Tool: positioned on the head Klodpfxoyxm Swj Aagsr MACHINE DETAILS Total installed power: 24 kW Control system: WINDOWS Machine programming software: WRT EQUIPMENT Worktable with suction cups Number of suction bar rows: 10 Suction cups for securing the workpiece Vacuum pump The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents for descriptive purposes. The buyer is entitled to inspect the goods prior to collection and assumes responsibility for installation, securing, and operation of the machine at the place of destination. External reference: 8173

Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2017, makine/araç numarası: 1000017221, Fonksiyonellik: tamamen fonksiyonel, X ekseni hareket mesafesi: 2.500 mm, Y ekseni hareket mesafesi: 900 mm, Z ekseni hareket mesafesi: 60 mm, kontrolör modeli: BSuite3, milling sayısı: 17, TEKNİK DETAYLAR Çalışma alanı X ekseni: 2.500 mm Çalışma alanı Y ekseni: 900 mm Çalışma alanı Z ekseni: 60 mm Eksen sayısı: 3 Takım: ISO 30 MİL BİLGİLERİ Toplam mil sayısı: 17 6 adet X ekseninde dikey 5 adet Y ekseninde dikey 4 adet X ekseninde yatay 2 adet Y ekseninde yatay MAKİNE DETAYLARI Sayısal kontrol ünitesi: BSolid Yazılımı - BSuite3 DONANIM Otomatik boşaltma ünitesi Yiv açma için entegre bıçak Ön koruma ve güvenlik sistemleri ile güvenlik matları Çevreleme güvenlik çitleri Klodeyzpcdjpfx Aagjr Harici referans: MME002

Durumu: yeni gibi (sergi parçası), Üretim yılı: 2026, CNC machining centres Rover Multi Up M C S Working area *: X = 3280 mm; Y = from 1580 to 1660 mm, depending on working conditions Kljdpfx Aey Ehrxeagsr Z = 200 mm – 5-axis processing unit and drilling unit, with vacuum modules H=74 mm Z = 245 mm – 5-axis processing unit and drilling unit, with vacuum modules H=29 mm Workpiece clearance *: Y = 1900 mm Axis travel ranges *: X = 3706 mm; Y = 2294 mm; Z1 = 515 mm; Z2 = 371 mm VACUUM SYSTEM Division of the vacuum system into 2 working zones and 2 clamping zones in X. AUXILIARY VACUUM SYSTEM – 2 zones Allows for the clamping of workpieces using vacuum templates. Remote control RM850 Rover Multi Up M C S Panel – Multi Purpose Regular Configuration 2 Compatible with the 16-position rotary tool changer and the 12-position side-mounted tool magazine. The tool magazines can also be retrofitted. Uninterruptible power supply (UPS) for the machine PC. 6 ATS workpiece supports – 18 module holders — 6 aluminium workpiece supports. The supports are guided on linear rails with recirculating ball carriages. Clamping is performed on the front and rear linear guides using pneumatic cylinders. Clamping is released via a push-button located at the front of each workpiece support. — 18 module holders, 132 x 132 x H 41.5 mm, with independent pneumatic clamping The vacuum modules can be rotated in 15° increments on the module holders; an ideal solution for shaped components. — 18 blinds for module holders without templates. SA worktable (Set-Up Assistant) for worktables up to 1550 mm. Supported manual positioning system with travel direction indicator and position indicator. — Sensors on each worktable and along the X-axis of the working area. — Display of reached direction and position for the carriage during positioning, mounted on each worktable According to the worktable programming, the system suggests to the operator the movement direction of each worktable and carriage, and signals with a green LED and beep when the target position (tolerance: +/- 1.5 mm) is reached. Segmentation of the pneumatic system into 2 working zones in X Processing unit with 5 interpolating axes, 13 kWp (17.4 HP), with HSK F63 interface, liquid-cooled – 20,000 rpm Extraction hood with 12 NC-controlled positions for the 5-axis electrospindle. Flange for the preparation of a 5-axis machining unit for aggregate installation. Coolant system Additional Z-axis support for rear machining units, with independent Z-axis. Drilling head BH 24 L Side-mounted tool magazine with 12 positions in the machine bed. Rotary tool changer with 16 positions, installed directly on the X machining unit. Tool holder HSK F63, equipped with a long integrated flange, for saw blades on 5-axis head. Saw blade 300 mm, for tool holder. Hi-Tech tool set Complete set of tools for acceptance test Consisting of the following 9 items Upgrade from standard PC to high-performance PC. Digital device for measuring tool length, for diameters up to 130 mm. bSolid NC-HOPS 8 MacroCAM Rover 1. AV NC-HOPS MacroCAM 1. license WorkCenter vacuum cup suggestion 5-axis simultaneous Material removal simulation 12-month warranty period Location: ex stock 54634 Bitburg - Immediately available -

Durumu: kullanılmış, makine/araç numarası: 008480, Çalışma alanı X ekseni: 4600 mm Çalışma alanı Y ekseni: 1935 mm Çalışma yüzeyi: Vakumlu konsol tablalar ile Ana mil gücü: 18 kW Kledpfx Aoy Edqkoagsr Kontrollü eksen sayısı: 5 eksen Matkap mili sayısı: 31 Takım istasyonu sayısı: 58

Durumu: kullanılmış, makine/araç numarası: 008515, Maks. panel uzunluğu: 3200 mm Kodpfx Aasy Edpgegelr Toplam ünite sayısı: 6 Toplam ünite sayısı: 2

Durumu: kullanılmış, makine/araç numarası: 008272, Pozisyon 1: 5 eksenli işleme merkezi BIESSE + KUKA-ROVER A + KR210 R3100 Kledox A Tfvjpfx Aagor Pozisyon 2: Robot BIESSE + KUKA-ROVER A + KR210 R3100

Durumu: kullanılmış, makine/araç numarası: 007811, Pozisyon 1: Yükleyici BIESSE - RBO-STREAM SB Pozisyon 2: Çift taraflı kenar bantlama makinesi BIESSE - RBO-STREAM SB Kedpfx Aasv Dyxcsgolr Pozisyon 3: Plaka çevirici BIESSE - RBO-STREAM SB Pozisyon 4: Çift taraflı kenar bantlama makinesi BIESSE - RBO-STREAM SB Pozisyon 5: Geçişli delme makinesi BIESSE - RBO-STREAM SB Pozisyon 6: Geçişli delme makinesi BIESSE - RBO-STREAM SB Pozisyon 7: Plaka çevirici BIESSE - RBO-STREAM SB Pozisyon 8: Boşaltıcı BIESSE - RBO-STREAM SB

Durumu: kullanılmış, makine/araç numarası: 007289, Çalışma aralığı X ekseni: 3200 mm Kljdpowukyqefx Aagsr Çalışma aralığı Y ekseni: 900 mm Ana mil gücü: 4,5 KW HAYIR. Kontrol edilen eksenler: 3 eksen Delme mili sayısı: 16

Durumu: kullanılmış, makine/araç numarası: 005836, X ekseni çalışma aralığı: 3000 mm Y ekseni çalışma aralığı: 1000 mm Ana iş mili gücü: 3,5 kW Kontrol edilen eksen sayısı: 3 eksen Kjdpfjwuckusx Aagslr Delme milli sayısı: 82
