Sıvı halkalı vakum pompası Alaşım 59

BUSCH 7,5 kW ; 195m³/h ; 33mbar Dolphin LC 0220 A ZZO XX ZZ

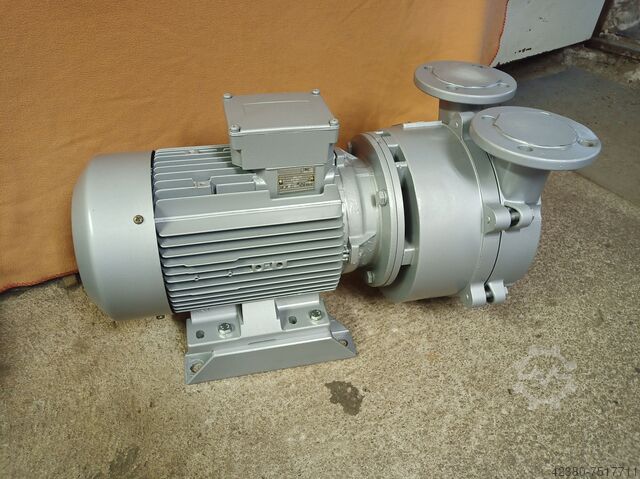

1 piece liquid ring vacuum pump.
Please read the description carefully to the end!!

The pump is not suitable for:
Water, food industry, and non-corrosive media.
For these media, more cost-effective materials such as 1.4408 or 1.4571 are better suited.

Attention!!
Djdpfx Ameigqutsmskp
The pump does not have any explosion protection certificates.
It is also not possible to exchange the motor, as it is a special long-shaft motor.
The mechanical seal also does not have any EX certificates!

The pump is made of the special alloy Alloy 59!!
This alloy is used when conventional chromium-nickel steels are no longer sufficiently corrosion-resistant.
Especially when chloride-induced pitting and crevice corrosion and stress corrosion cracking are an issue.

Alloy 59 is used in: environmental technology, chemical industry (chemical processes with oxidizing and reducing acids, resistance to moist chlorine gas), and waste incineration plants. Mainly, 2.4605 is used in the chemical industry, pulp and paper industry, as well as flue gas desulfurization plants.

Outstanding resistance to mineral acids such as nitric, phosphoric, sulfuric, and hydrochloric acid, and especially to sulfuric/hydrochloric acid mixtures.

Typical applications include:

- Plant components for organic chemical processes involving chloride-containing media, especially when chloride-based catalysts are used
- Multipurpose plants in the chemical industry
- Plant parts in fine chemicals and pharmaceutical industry
- Scrubbers, heat exchangers, dampers, fans, and agitators for flue gas desulfurization plants (FGD) in fossil-fired power plants and waste incineration plants

- SO2 scrubbers for marine diesel engines
- Components for seawater and concentrated brines
- Equipment and components for geothermal and sour gas applications
- Reactors for acetic acid and acetic anhydride
- Reactors for hydrofluoric acid
- Sulfuric acid coolers
- Pipelines in geothermal power plants
- Components in flue gas desulfurization plants

Manufacturer: Busch
Type: LC 0220 A ZZO XX ZZ
Volume flow: 195 m³/h
Motor power: 7.5 kW
Voltage: 400/690 Volt
Speed: 1440 rpm
Vacuum: 33 mbar
Material: 2.4605 (Alloy 59) NiCr23Mo16Al

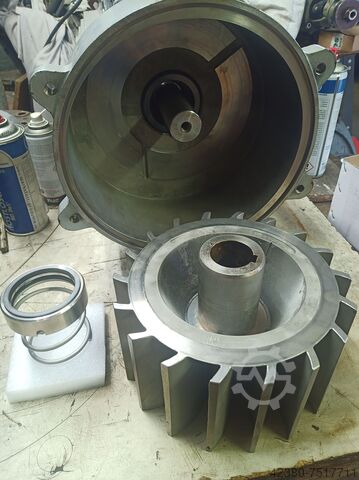

All ball bearings new, mechanical seal refurbished by a specialist company.
Weight: 121 kg
Dimensions: Length 960 mm, Width 370 mm, Height 370 mm
Connection: DN 50 (2")

Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
