Tel erozyon makinesi (wire EDM)

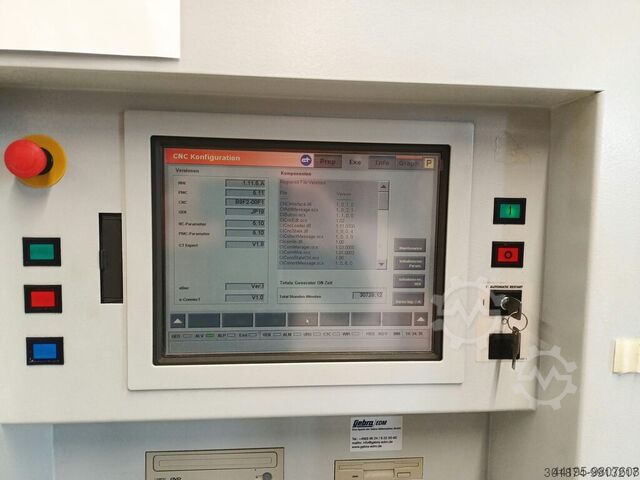

CHARMILLES Robofil 440

Country of manufacture CH
Voltage 400V / 50/60Hz / 3ph.
Net weight (machine + electrical cabinet) 3250 kg + 400 kg
Customs tariff number 8456.30 20
Dimensions 260x281x225 cm

TECHNICAL SPECIFICATIONS

Machining type immersion

Maximum workpiece dimensions 1200x700x400 mm
Maximum workpiece weight 1500 kg

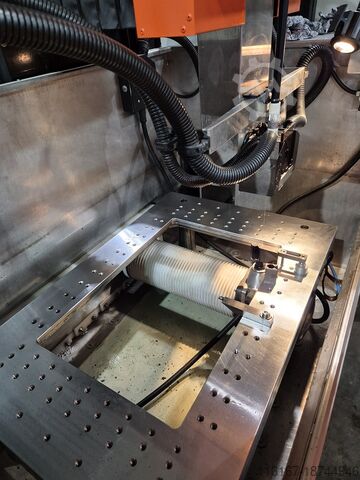

Table size 900x600 mm
Floor-to-table distance 900 mm
Total dielectric volume 1200 L

X, Y, Z, U, and V axes
X, Y, Z travels 550 x 350 x 400 mm
U, V travels 550 x 350 mm
Collision protection X, Y, U, V, Z axes

Taper machining, max. angle +/- 30° / 400 mm

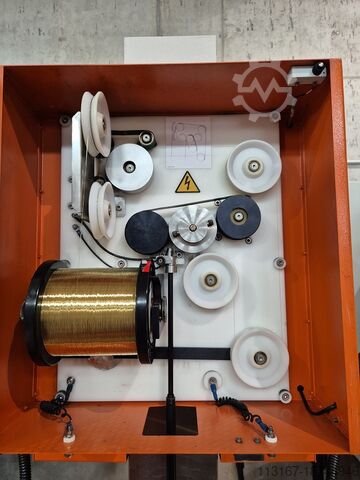

Available wire diameters Ø 0.25 mm (options: 0.1/0.2/0.3 mm)
Guide type closed diamond, gapless
Available spool weight and type (DIN standard) 1.6 kg (K 100) to 8 kg (K 160)
Available spool weight and type (JIS standard) 3 kg (P3) to 5 kg (P5)

Dielectric
Paper filters 2 cartridges
Dielectric temperature +/- 1°C
Total deionizing resin volume 20 L
Maximum injection pressure 20 bar

Generator double Isopulse source
Bedjw Ucyuspfx Ad Njlp

Power supply 380/400V 3 phases
Total power 10 KVA

Maximum cutting speed 400 mm²/min
Minimum surface roughness 0.20 micron Ra

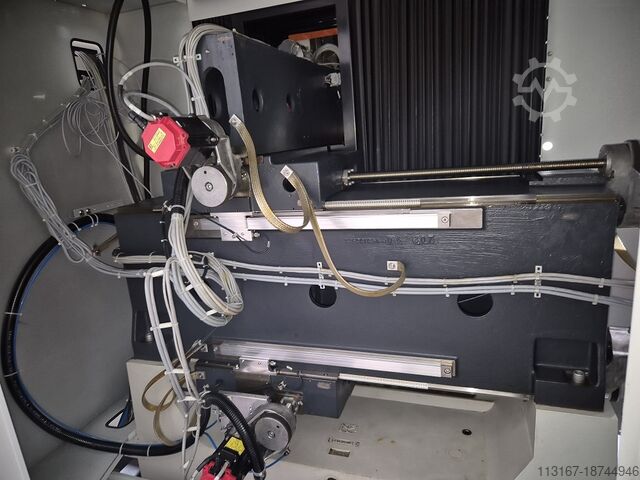

Measuring system glass linear scales
Measuring resolution 0.5 micron

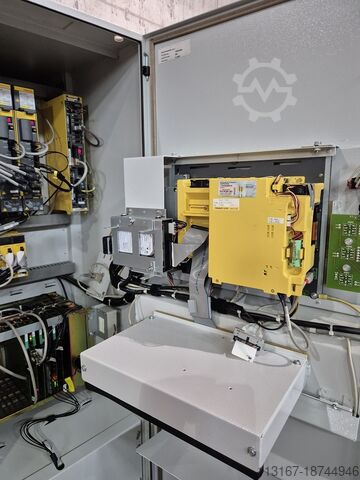

Servomotors AC type

All technical information is provided without guarantee and may be subject to errors or omissions.
