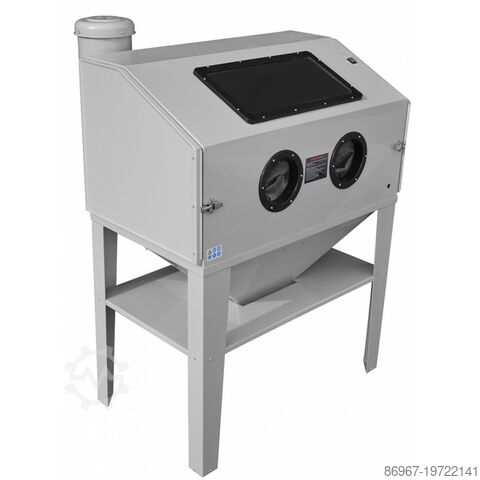

350L Sandblaster - side open

CORMAK KDP350

KDP350 Cabinet Sandblasting Machine

The KDP350 cabinet sandblasting machine is an efficient device designed for cleaning and surface treatment of metal components. It is dedicated to professional workshops, industrial plants, and refurbishment service centers.

The 330-liter working chamber and two side doors with perimeter sealing provide convenient access to the working area and ensure dust-free operation. The machine is supplied with a DC15 cyclone dust extraction system, which effectively removes dust generated during the blasting process.

The KDP350 is an ideal solution as a wheel sandblaster and for cleaning metal components requiring precise abrasive treatment.

Main Advantages of the KDP350 Sandblaster
Large working chamber – 330 liters of capacity allows processing larger components.
Two side doors – located on the left and right side, making loading and handling of workpieces easier.
Dust-free operation – thanks to sealing gaskets and dust extraction ports with diameters of Ø63 mm and Ø90 mm.
Csdpow H N R Sofx Ahzehd
Sandblasting gun with ceramic nozzles – 4 interchangeable tips (4, 5, 6, and 7 mm) provide precise blasting performance.
Working area lighting – improves visibility and accuracy during operation.
Protective gloves integrated into the cabinet – wear-resistant gloves protect the operator’s hands.
Compatibility with various abrasives – including quartz sand, glass beads, silicon abrasive, emery, and plastic granulate.
Precision, Efficiency, and Versatile Applications

The KDP350 cabinet sandblaster is suitable for removing rust, paint, scale, and technological deposits from metal, steel, and aluminium surfaces.

It is an excellent solution for sandblasting:

aluminium and steel wheels,
engine blocks,
hinges,
machine housings,
and other components requiring precise abrasive surface treatment.

Adjustable operating parameters, including pressure from 4–8 bar and air consumption of 400–700 l/min, allow the machine to be adapted to different materials and abrasive types.

Dust Extraction System – DC15 Cyclone Extractor

The KDP350 is supplied with a high-performance DC15 cyclone dust extraction system, which efficiently separates dust and fine particles generated during surface treatment.

The integrated filter and flexible connecting hose provide comfortable and safe operation, maintaining cleanliness inside the cabinet and in the surrounding workspace.

Thanks to cyclone filtration technology, filter service life is extended and the need for frequent replacement is reduced.

Standard Equipment
DC15 cyclone dust extractor with filter and hose
12 V fluorescent lamp (230 V power supply with switch)
2 integrated rubber protective gloves
Sandblasting gun with 4 ceramic nozzles (sizes: 4, 5, 6, 7 mm)
4 protective films for the viewing window
2 dust extraction ports: Ø63 mm and Ø90 mm
2 side doors with perimeter sealing gaskets
User manual in Polish
Technical Specifications – KDP350 Sandblasting Cabinet
Parameter Specification
Working volume 330 L (0.33 m³)
Operating pressure 4–8 bar
Air consumption 400–700 l/min
Air connection 1/4" quick coupling
Viewing window area 580 × 270 mm
Doors 2 pcs. (left and right side)
Dust extraction connection Ø63 mm and Ø90 mm
Internal dimensions 890 × 655 × 360/610 mm
External dimensions 960 × 720 × 1500 mm
Weight 88 kg

Note: The machine is supplied in parts and requires self-assembly according to the included instructions.
