Kompresör + kurutucu + dikey tank seti

CORMAK LUFT 1500 INVERTER + N20S + BUTLA 500L

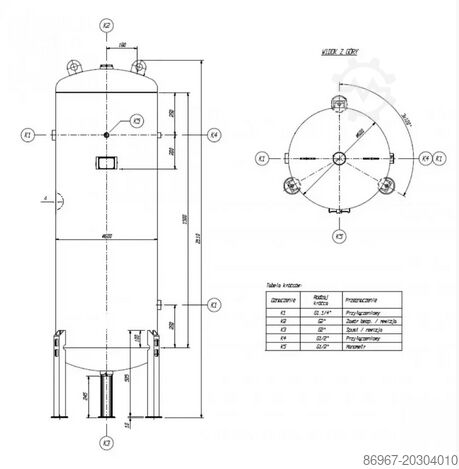

Durumu: yeni, Üretim yılı: 2025, Set including LUFT 1500 screw compressor with inverter, vertical compressed air receiver with fittings (capacity: 1,000 l), and IZBERG N20S dryer. The CORMAK LUFT series screw compressor, a Polish brand, offers state-of-the-art pneumatic solutions, combined with high-quality materials and components. Low operating costs, user-friendly operation, ergonomic and robust design, and high efficiency guarantee reliable and trouble-free performance. Technical specifications LUFT 1500 INVERTER: - Motor power: 11 kW - Voltage: 400V/50Hz - Output at 0-6 bar: 1,620 L/min - Output at 6 bar: 1,580 L/min - Output at 8 bar: 1,350 L/min - Output at 10 bar: 1,230 L/min - Outlet connection diameter (G): 1" - Dimensions: 1,170 x 730 x 1,020 mm - Weight: 243 kg Technical specifications IZBERG N20S: - Inlet/outlet pipe diameter (BSP): 1" - Max. working pressure: 10 bar - Max. inlet air temperature: ≤ 38°C - Dew point temperature: 3°C - Capacity: 2,800 l/min - Power: 0.58 kW - Supply voltage: 230 V - Dimensions (L x W x H): 420 x 700 x 690 mm - Weight: 37 kg - Refrigerant type and quantity: R134a, 550 g Technical specifications 1,000L VERTICAL AIR RECEIVER: - Weight: 230 kg - Connections: 6 - Connection size: 2", 1/2" - Size: 230 x 80.8 cm Hfjdpsxnyhuefx Ac Hjn - Tank capacity: 1,000 l - Working pressure: 11 bar - Wall thickness: 4 mm - Diameter: Ø 808 mm - Height: 2,300 mm
