Edge Banding Machine for Curve Panels

DANIBRUM AC Contur 2

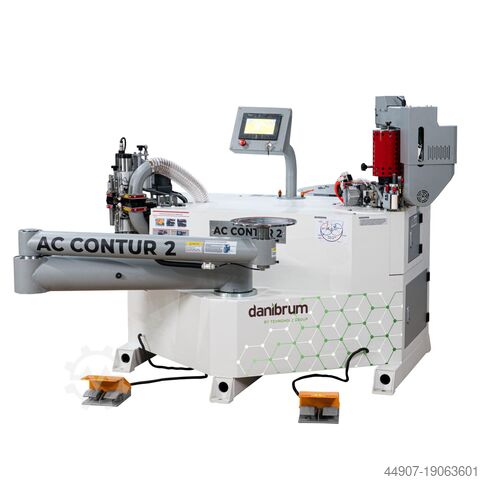

DANIBRUM AC CONTUR 2 – Edge Banding Machine for Curved, Round, and Irregular Panels

The DANIBRUM AC Contur 2 is the ideal solution for precision edge banding on panels with non-standard shapes — from oval, round, and rectangular parts to undefined curved geometries. Its operational flexibility allows edge application on 90° angles as well as open and closed arcs, thanks to an advanced mechanical feed system and adjustable profiling setup.

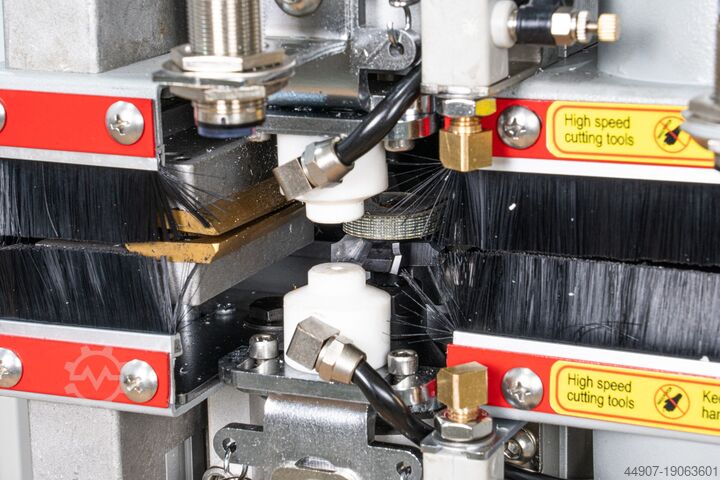

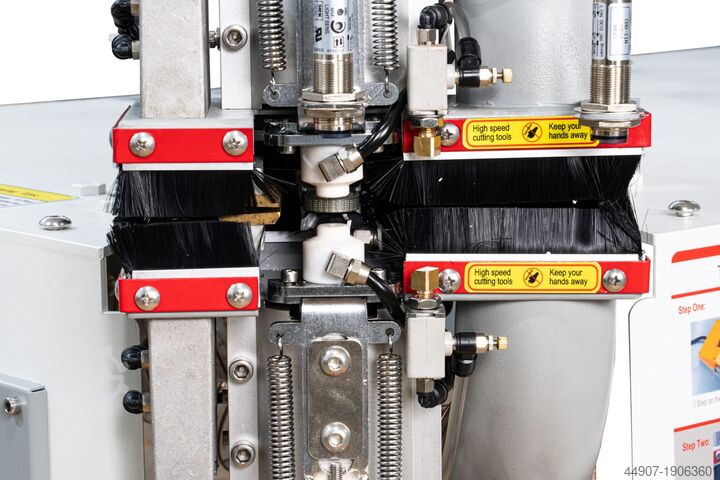

A key advantage of this machine is its high-precision edge trimming, enabled by a laser sensor that perfectly synchronizes the edge tape ends, ensuring flawless joints with a tolerance of just ±0.3 mm.

Operation is intuitive through a touch-screen interface that allows fast adjustment of all working parameters. The system features a vacuum-supported mobile arm, extendable up to 2250 mm, providing reliable and stable support for the workpiece during processing.

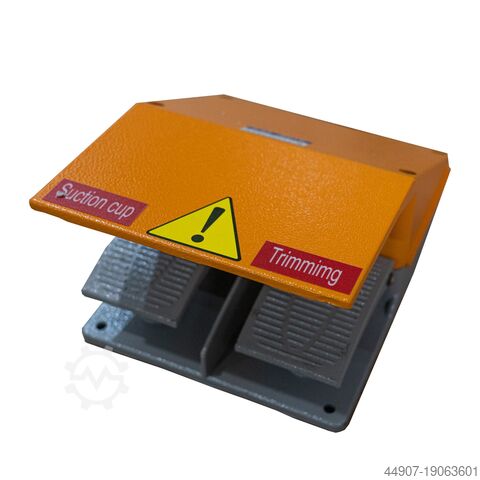

For safe and efficient use, the machine is equipped with a foot pedal control system, while the adjustable feed speed enables edge banding at 0 to 30 cm/s and longitudinal profiling at 0 to 24 cm/s.

Optimized for Complex Workpieces
This machine is designed to handle:

Edge tape thickness: 0.5 – 3 mm

Panel thickness: 12 – 60 mm

Minimum working radius: 20 mm
Cjdpfewg E Hvex Aazeri

Compatible with various panel formats:

Round pieces up to Ø2400 mm

Rectangular panels: 1200 x 2400 mm

L-shaped panels: 1400 x 1600 mm

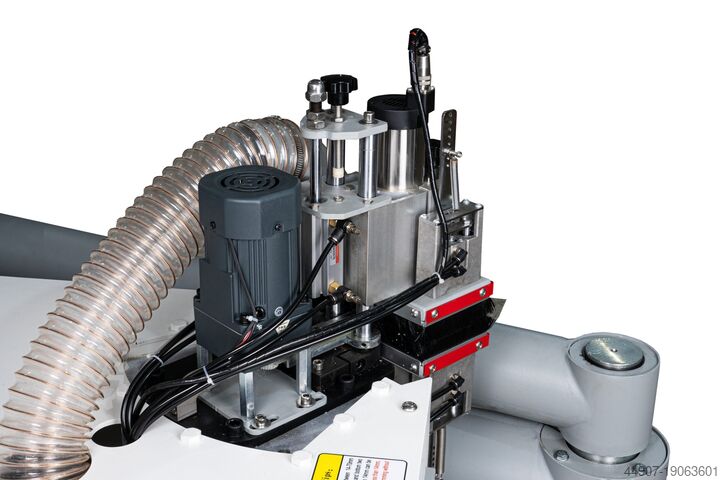

Equipped with high-speed longitudinal profiling cutters (24,000 rpm), it guarantees a high-quality finish even on complex contours.

The AC Contur series includes multiple models, such as AC Contur 2 and AC Contur 3, the latter featuring two extendable arms for increased productivity.

Technical Specifications
Edge tape thickness: 0.5 – 3 mm

Minimum working radius: 20 mm

Panel thickness: 12 – 60 mm

Material dimensions:

Round: Ø2400 mm

Rectangular: 1200 x 2400 mm

L-shape: 1400 x 1600 mm

Cutter speed (longitudinal profiling): 24,000 rpm

Feed speed:

Edge banding: 0 – 30 cm/s

Profiling: 0 – 24 cm/s

Edge tape joint accuracy: ±0.3 mm

Compressed air pressure: 0.6 – 0.8 Mpa

Working temperature: 110 – 210°C

Adhesive tank capacity: 2.6 liters

Arm extension length: 2250 mm

Installed power: 6.5 kW

Power supply: 400 V – 3 Phase – 50 Hz

Weight: 430 kg

Overall dimensions: 1870 x 1400 x 1530 mm
