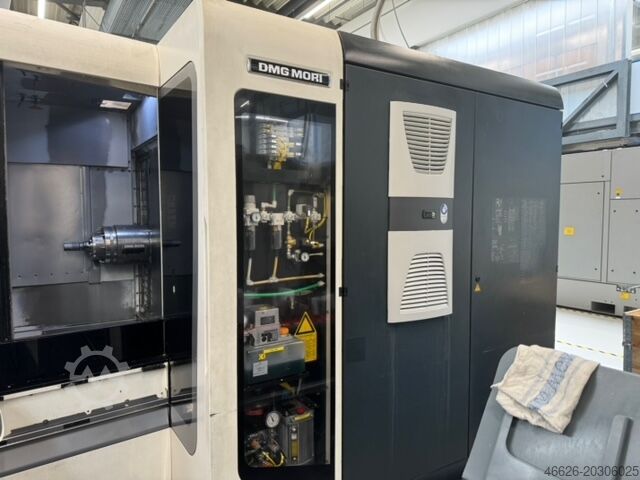

Yatay işleme merkezi

DMG MORI NHX 4000

BASIC DATA

Condition: Very good
Availability: 01/2025
Machine model: DMG NHX 4000
Year of manufacture: 2017
Operating hours: 41,220 h
Spindle hours: 21,663 h

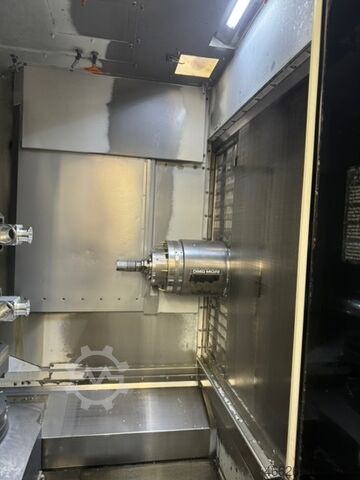

Working area:
X-axis travel: 560 mm
Y-axis travel: 560 mm
Z-axis travel: 660 mm

TRANSPORT WEIGHT AND DIMENSIONS

Transport weight
Machine incl. tool magazine and chip conveyor: 9,300 kg
Coolant system KF 110/700: 1,500 kg
Cooling unit: approx. 82 kg
Sheet metal covers: 125 kg
Documentation and accessories: 60 kg
Transport dimensions of the machine incl. tool magazine:
Length x Width x Height: 4.20 m x 3.20 m x 2.80 m

SPINDLE INFORMATION

Spindle power
Spindle type: SK004 motor spindle speedMASTER® HSK-A63
Spindle speed: 20–20,000 rpm
Power: 35 kW (40% duty cycle), 25 kW (100% duty cycle)
Torque: 130 Nm (40%), 86 Nm (100%)
Workpiece weight per pallet: max. 400 kg
Pallet size: 400 x 400 mm
Maximum workpiece diameter: 630 mm
Maximum workpiece height: 900 mm

TOOL CLAMPING SYSTEM AND TOOL CHANGER

Hsdpexn Adlefx Ac Hsfn
Tool holder: HSK-A63
Standard: DIN 69893 Form A
Clamping mechanism:
Clamping: Mechanically by spring force
Unclamping: Hydraulic
Tool changer:
Capacity: 40 tools (drum-type magazine system)
Maximum tool diameter: 70 mm (adjacent slots free), 170 mm (adjacent slots occupied)
Maximum tool length: 450 mm
Maximum tool weight: 12 kg
Optional tool changer:
Drum-type tool magazine with 60 slots (HSK-A63)

ENERGY SUPPLY

Voltage: TN-S network, 400 V
Power consumption (at 100% DC):
Basic machine: 45 kVA
Coolant system: 48 kVA
Band filter system: 55 kVA
Connected load with Siemens Sinamics S120
16 kW: 0.48 MVA
36 kW: 1.08 MVA
55 kW: 1.65 MVA
80 kW: 2.40 MVA
120 kW: 3.60 MVA

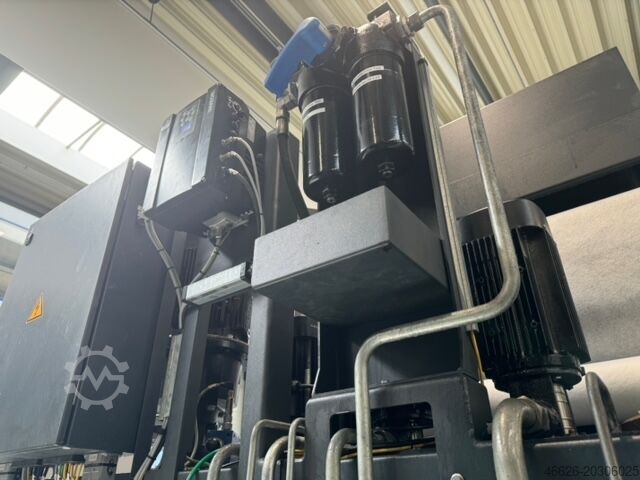

COOLING SYSTEM AND CHIP DISPOSAL

Cooling medium: Water-soluble coolant
Interface for high-pressure cooling system: Up to 70 bar, compatible with Knoll systems
Coolant rinsing system: Includes cleaning guns
Additional components:
Rotating viewing window on the work area door
Coolant rinsing system for internal cleaning of the machine
Upgraded cooling system:

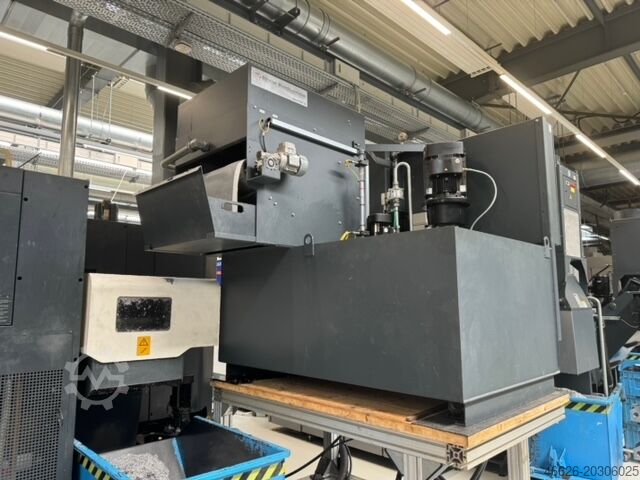

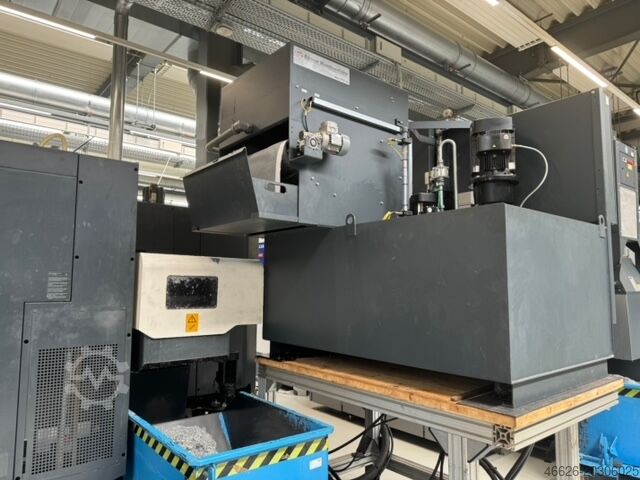

Larger Bürner filter system (DMG upgrade, see attachment)

MEASUREMENT AND MONITORING SYSTEMS

Tool breakage control system in the tool magazine
Spindle sensor measuring system with Renishaw OMP60 for automatic measurement and centring

CONTROL SYSTEM

Control: CELOS® with Siemens 840D sl Operate
Control panel: 21.5" ERGOline® Control with multi-touch screen
Functions:
Apps for simplified machine operation as well as for integrated management, documentation, and visualization of order, process, and machine data.
Networking with CAD/CAM and compatibility with PPS/ERP systems.

WORKTABLE

NC rotary table: With direct drive technology
Minimum indexing: 0.001°
Maximum rotation speed: 100 rpm

DOCUMENTATION AND ADDITIONAL FEATURES

Electrical diagrams and operating instructions in German
Languages:
Screen texts available in German and English
CELOS products
DMG MORI NETSERVICE for remote diagnostics
SERVICE AGENT for maintenance monitoring
MESSENGER for real-time machine status
