Güvenlik test cihazı

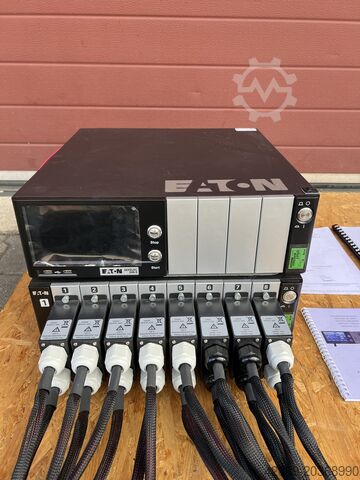

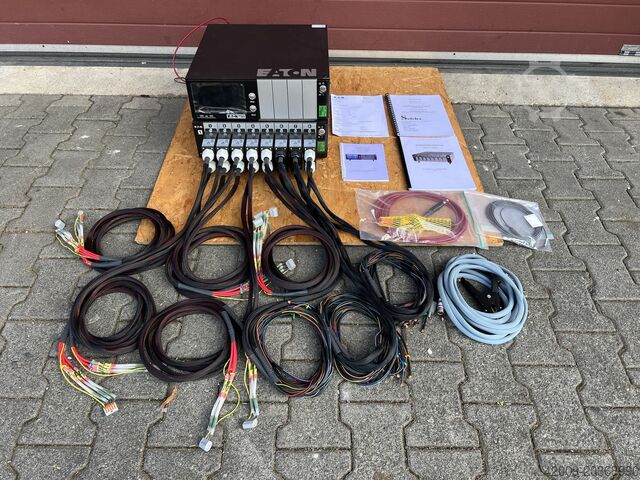

Eaton Sefelec 506-S + 64-SC

Safety Tester with Scanner for High Voltage Test Station

- EATON Sefelec 506-S
- EATON Sefelec 64-SC

The devices were purchased in 2023/2024 and are in excellent condition.

The SEFELEC 506-S test device for electrical safety testing, a next-generation EATON model, is based on ARM Dual Core technology components and is controlled by DSP. This technology provides the operator with optimal measurement stability and repeatability.
Its high precision and test speed are tailored to meet quality assurance requirements in production and incoming goods inspection.
The sequence function facilitates operation of the SEFELEC 506-S test station when integrated into a test stand or test bench.
The 7" touchscreen of the new SEFELEC model range impresses with its simple and intuitive operation.

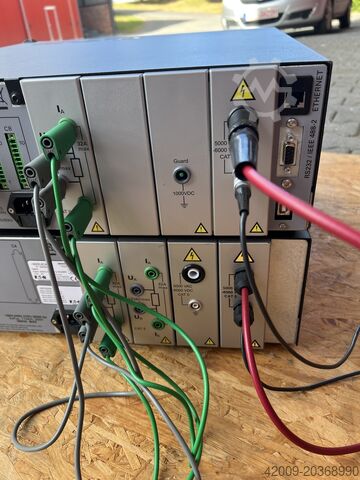

- Standard interfaces: Ethernet / RS232 / USB / PLC
- Optional: IEEE488-2 interface
- Dual SIL2 safety circuit
- Automatic selection of test series
- Sequence mode for combining multiple sequential tests

Dielectric strength at 5kVAC 500VA and 6kVDC
Detection modes based on current threshold or current fluctuations (ΔI)
Burn-in mode without current detection
Megohmmeter to 200 GΩ, test voltage from 20 VDC to 1000 VDC
Optional: 2TΩ range
PE measurement at 32A - 8VAC, measurement range 0 ... 1Ω
Optional: test current up to 50A
Programmable test ramps
Lrjdpfxexqxw To Afzeu
Ramp-up, hold, ramp-down
Multi-ramp mode, up to 7 stages
TFT touchscreen 7”, 16 million colors, for programming and display of ongoing tests and results
Integrated ARM Dual Core control & Nand 3D technology for optimal precision, stability, and repeatability
Integrated DSP enables higher test speeds
Large internal memory for storage of configurations and test results
Fully compliant with IEC 61010-2-034 (safety requirements for measuring and testing equipment for insulation resistance measurement and for dielectric strength test equipment)

Shipping available upon arrangement.

#8312-2
