Döner freze makinesi
FIMAL TX 160

Name: FIMAL TX 160
Brand: FIMAL
Availability: InStock

Durumu

Yeni

Konum

Aalen

Haritayı göster

Makineye ait bilgiler

Makine tanımı:: Döner freze makinesi

Makine üreticisi:: FIMAL

Model:: TX 160

Durumu:: yeni

Fiyat ve Konum

Satıcının konumu:: Elisabethenstr. 41, 73432 Aalen, Almanya

Ara

Teklif detayları

Listeleme kimliği:: A205-78445

Referans no.:: 1305-6974

Son güncelleme tarihi:: 20.11.2025

Açıklama

Table size: 1,200 x 780 mm
Motor power: 7.5 kW
Spindle diameter: 30 mm
Fimal TX 160 Tilting Spindle Moulder
-----
Partnership Edition offer:
- Fimal TX 160 (7.5 kW)
- 10 HP motor
- Reversible motor (right/left rotation)
- Top control panel with electronic digital display for spindle height and tilt adjustment
-----
General technical manufacturer’s description:

The FIMAL TX160 sets new standards in modern woodworking. Featuring a precise tilting spindle, innovative control technologies, and a robust construction, it delivers maximum stability and flexibility for demanding milling tasks.

Thanks to the stepless tilting adjustment, precise digital controls, and powerful motorization, the TX160 is ideally suited for joiners, cabinetmakers, and industrial production environments.

- Milling fence including parallel adjustment with handwheel and numerical readout, handwheel adjustment with numerical readout for front fence jaw, electric travel tilt device for entire fence, quick-release lever for fixing the aluminum fence jaws and pressure unit
- Curved work milling fence
- Electromotive spindle height adjustment including numerical indicator and decimal step setting
- Table insert adjustable to milling cutter diameter (instead of table insert rings)
- Indicator lights for selection of milling speed
- Electricals and safety devices in accordance with CE standards
Itodpfx Acsxyafqs Eep
- Table dimensions: 1,200 x 780 mm
- Spindle diameter: 30 mm, height: 140 mm
- Milling spindle speeds: 1500/3000/4500/6000/8000/10000 rpm
- Maximum tool diameter below the table: 320 mm, height: 50 mm
- Motor: 5.5 kW / 7.5 HP / 50 Hz
- Sound level according to EN 27960: 83.9 – 87.3 dB(A)
- Spindle tilting range: -45° to +45°
- Electromotive spindle tilting adjustment with electronic display and decimal step setting
- Maximum spindle height for 30 or 35 mm diameter: 140 mm
- Maximum spindle height for 40 or 50 mm diameter: 180 mm
- Total spindle stroke: 220 mm
- Table opening: 340 mm
-----
Price for the listed machine on request!

(Technical specifications as per manufacturer's information – subject to change/no liability!)
All prices are net plus VAT as required by law.

Images show a similar model. Original images not yet available.

Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.

Belgeler

20578445-01.pdf

Tedarikçi

İlk kayıt tarihi: 2002

110 çevrimiçi ilan

Ara

İstek gönder

Telefon & Faks

+49 7364 ... ilanlar

+49 7361 ... ilanlar

Faks:

Bu ilanlar da ilginizi çekebilir.

küçük ilan

Döner freze makinesi FIMAL TX 160 L mit 4-Achs-Steuerung

Aalen

2.278 km

Döner freze makinesi
FIMALTX 160 L mit 4-Achs-Steuerung

Ara

Durumu: kullanılmış, Table size: 2500 x 780 mm Motor power: 7.5 kW Spindle diameter: as required Speed: 1,500 - 10,000 rpm FIMAL Tilting Spindle Moulder TX 160 L --- 4-Axis Control: Spindle height, spindle tilt, parallel adjustment of the fence, and motorised adjustment of the table insert, including upper control panel with automatic star-delta starting for the milling motor. Touchscreen, tool management, and program control based on Windows system Milling fence including controlled parallel adjustment (1st axis), handwheel adjustment with digital display for the front fence jaw, electric swing device for the complete fence, quick-release lever for locking, aluminium fence jaws and pressure device Controlled electromotive spindle height adjustment (2nd axis) Controlled electromotive spindle tilt adjustment (3rd axis): -45° to +45° Table insert adjustable to milling tool diameter (instead of table rings) Motorised table insert (4th axis) Milling speeds: 1,500 / 3,000 / 4,500 / 6,000 / 8,000 / 10,000 rpm (displayed via touchscreen) Electrics and safety devices according to CE standard Table dimensions: 1,200 x 780 mm Max. tool size under table: d = 320 mm, H = 50 mm Motor: 7.5 kW / 10 HP / 50 Hz Version "L" with dual-sided table extension and pull-out workpiece support with emergency stop button Reversible operation (clockwise/counterclockwise) according to CE standard Curved workpiece fence Optional, at surcharge: 4-roller power feed type VSA 2048 L Constant feed speed without power loss Reversible (clockwise and counterclockwise) Including stand, individually swiveling and adjustable for horizontal and vertical use Eight speeds available, speed selection via switch and change gearbox Isdpfx Ajxpi D Ioc Ejtp Surcharge: 1,149.00 Euro Freight costs, including installation and 4-hour operator training: Surcharge: 1,400.00 Euro (Technical specifications as provided by manufacturer - subject to confirmation)

Detayları gör

küçük ilan

Seevetal

2.500 km

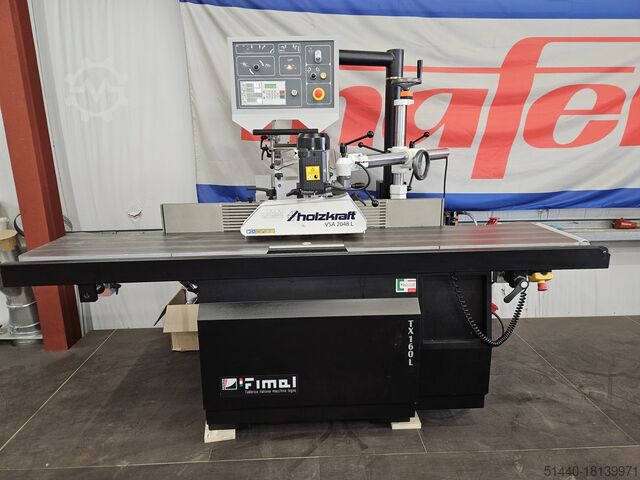

Masa freze makinesi
