Bevel-helical gear units Industrial gear units

Flender TGL 37088 14LA0-355x16 el380t

1 unused industrial slip-on bevel-helical gear for conveyor belt drives.

Manufacturer: Flender Penig
Type: 14LA0-355x16 el380t TGL37088
Rated power: P = 257 kW
Torque: 37,700 Nm

Ratio: i = 16 (15.8351)
Speed n1: 1,000 rpm
Speed n2: 62.5 rpm

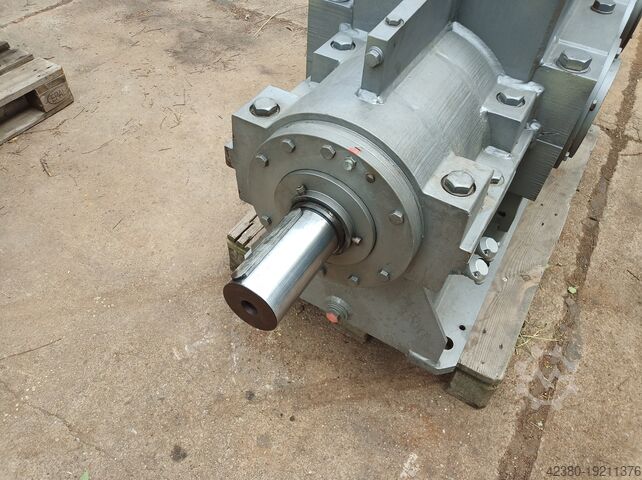

Input shaft diameter: 90 mm x 170 mm
Output shaft: Hollow shaft Ø170 mm

0 = Shaft end right
355 = Size
16 = Ratio
e = Anti-reverse device (input shaft rotation right)

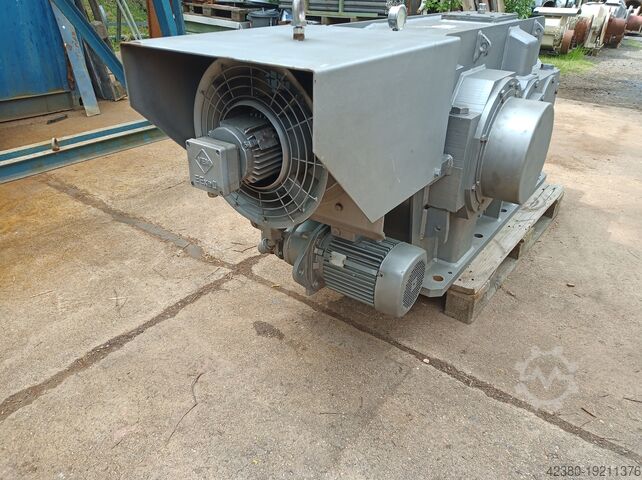

l = Fan
380 = Pump and fan voltage in volts
t: 2 TPM resistance thermometer temperature monitors
Cjdpfx Aowmlduolyshd

Hydraulic pump: 1.5 kW
Fan: 0.75 kW

Dimensions:
Length with fan: 2400 mm
Width: 780 mm
Height: 810 mm
Weight with fan: 1760 kg

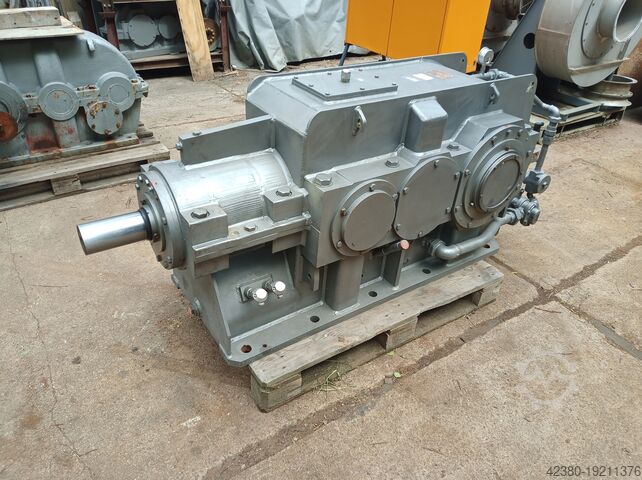

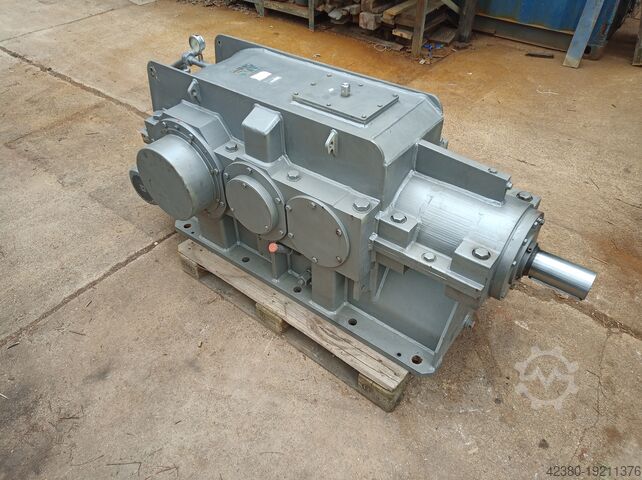

The 14 LA series bevel helical gear units are three-stage gear units with hardened gears and welded housings. The shafts are mounted in roller bearings. The low-speed shaft is designed as a hollow shaft. The torque is transmitted from the hollow shaft to the connecting shaft via cones and keyways. The gear units can be operated in both directions of rotation. The gear units can be mounted on the right or left side without any modification to the gearbox.
