Çift vidalı ekstrüder

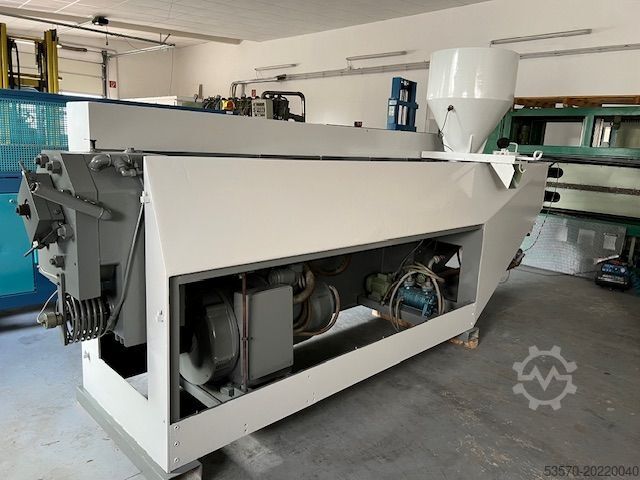

Hans Weber Maschinenfabrik DS 85

Twin-screw extruder, parallel design
Manufacturer: Weber
Model: DS 85
Year of manufacture: 1979/2022
Machine no.: 85-399
Screw geometry: for rigid PVC profiles
Cedpoxlcfkjfx Ad Ujhc
Screw diameter: 2 x 85 mm
Screw length: 17 x D
Screw speed: max. 30 rpm
Screw torque: 12,000 Nm
Drive power: 3.3 - 25.0 kW,
Main drive motor: Commutator motor Elektra Faurndau
Barrel heating/cooling zones: 4/2 (air cooling with fan)
Adapter heating zones: 1
Die heating zones: 8
Temperature control: 12 x digital temperature controllers KS 40 (PMA)
Accessories: melt pressure transducer and melt temperature sensor
Connected load: approx. 60 kW (without tooling)
Extrusion height: 1000 or 1100 mm
Output capacity: approx. 150 - 180 kg/h for rigid PVC profiles
Accessories: material hopper and connecting fan
Accessories: vacuum pump (1.1 kW) incl. material separator
Dimensions: 4500 x 1200 x 2100 mm (LxWxH), incl. material hopper
Weight: approx. 4000 kg
Note: The electrical control cabinet was completely renewed approx. 3 years ago. Since then, the extruder has only operated for 216 hours.
