Pres freni - hidrolik

HESSE by DURMA PBF 30200

Condition: New
Year of manufacture: 2024
Stock number: 8319
Delivery time: immediate, subject to prior sale
Country of origin: Turkey
Price: €77,982
Leasing rate: €1,326.78
In stock: 1 unit
Special price: €70,200
Press force: 200 t
Bending length: 3050 mm
Axes: Y1 / Y2 / X and R axis
Stroke: 210 mm
Distance between uprights: 2550 mm
Throat depth (side frame): 250 mm
Installation height: 445 mm
Drive system: hydraulic
Rapid traverse Y-axis: 100 mm/s
Kledpfxowiqp Io Aager
Working speed Y-axis: 7 mm/s
Return speed Y-axis: 73 mm/s
Backgauge travel X-axis: 620 mm (with optional R-axis)
Backgauge speed X-axis: 250 mm/s
Table height: 858 mm
Table width: 104 mm
Oil tank: 150 l
Motor power: 15 kW
Length: 3750 mm
Width: 1390 mm
Height: 2500 mm
Weight: 8,160 kg
4 axes (Y1, Y2, X, and R axis)

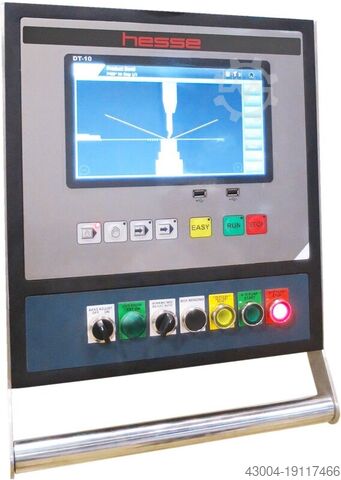

CNC CONTROL DT-10
- 2D graphic display, 10”
- Intuitive touchscreen operation (simple contour drawing with finger)
- User-friendly dialog programming
- Automatic calculation of bending sequences
- Automatic calculation of developed length for sheet cutting
- Graphical product and tool storage
- Correction facility
- USB ports for backup and program transfer
- PC software: programs can also be created on PC and transferred to the machine via USB
CNC-controlled backgauge with linear guides and ball screws
CNC-CONTROLLED CROWNING SYSTEM IN THE TABLE
Extension pieces for the upper tool clamping
Upper tool 1010/A/75°/0.8, sectionalized, bending radius hardened and ground
Die holder for 60 mm dies
Die 2009/85° (V 16, 22, 35, 50 mm), sectionalized, entry radii hardened and ground
Fiessler AKAS laser safety device mounted on the upper beam
Sheet support arms
Side and rear safety guards
Equipment according to CE standards
Filled with oil
Operating manual in GERMAN or ENGLISH

ADVANTAGES OF THE PBF SERIES:
- Compact design
- Economical model due to series production of standardized models without compromising on quality and accuracy

OPTION:
Motorized crowning system adjustable via CNC control

Including:
CNC-controlled R-axis (adjustable in X = 500 mm)
Including DBend, 3D CAD/CAM import and simulation software (import formats: step, iges, and dxf)

WE HAVE OVER 600 REFERENCES!
