Demo 5'li Kombi CU410N2 her şey dahil

Holzprofi 7-CU410N2-3,0-3x4kWI

Exhibition machine

Aluminium sliding table (anodized) with hardened steel guide rods. Anti-kickback device on thickness planer. Anodized parallel fence with micrometric fine adjustment. Saw blade tilting up to 45° via handwheel. Table opening ø260 mm with under-table extraction. Milling fence 250 mm. Slot mortising unit with Westcott collet chuck, Mori safety device. Interchangeable milling spindle with MK4 mount, made in EU!

Surface planer unit:
Table width: 410 mm
Table length: 1800 mm
Cutterblock diameter: 100 mm
Number of planer knives: 4 pcs
Cutterblock speed: 4500 rpm
Motor output: 5 kW - S6 (4 kW S1)

Bedpfx Aswzzgusd Njlp
Thickness planer unit:
Thickness capacity, min/max: 4 - 225 mm
Feed speed: 8 m/min

Spindle moulder:
Usable spindle length: 125 mm
Spindle height adjustment: 175 mm
Motor output: 5.5 kW - S6 (4.5 kW S1)
Max. tool diameter
for profiling: 250 mm
for tenoning: 300 mm
Spindle speeds: 10000/8000/6000/5000/4000/3000 rpm
Table openings: 260 mm

Circular saw:
Sliding table length: 3000 mm
Saw blade diameter min/max: 315 mm / 250 mm
Tilting range: 90° - 45°
Max. cutting height 90°/45°: 103 mm / 72 mm (saw blade 315 mm)
Motor output: 5 kW - S6 (4 kW S1)
Weight: 1090 kg

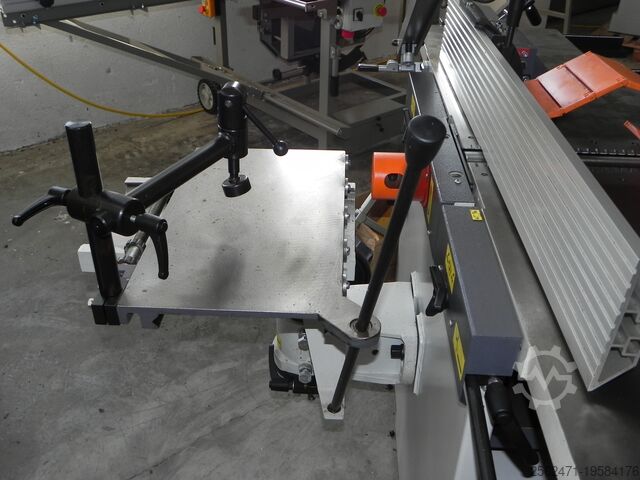

Slot mortising unit:
Table size: 300 x 500 mm
Slot length: 250 mm
Slot depth: 210 mm
Height adjustment: 160 mm
