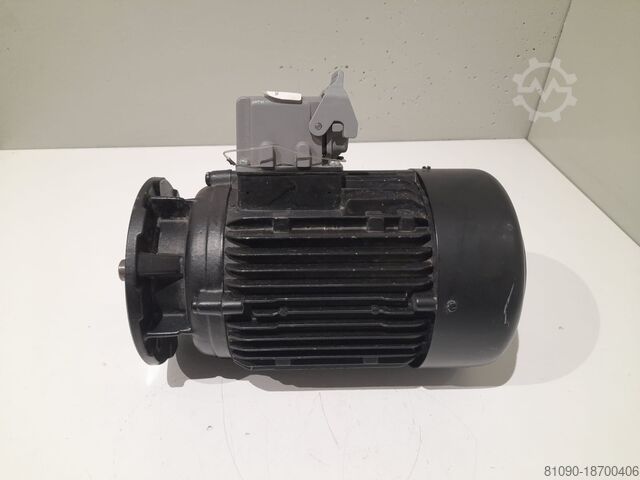

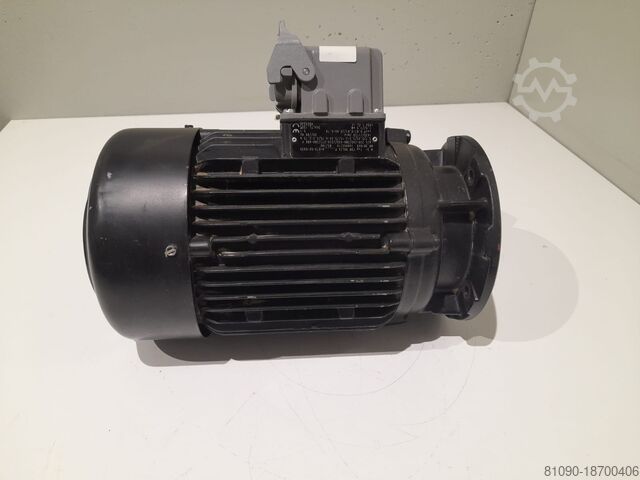

FDR MOTORU

HOMAG

Koşul: ikinci el, Üretim yılı: 2007, güç: 43 kW (58,46 bg), kesme yüksekliği (maks.): 90 mm, kesme genişliği (maks.): 1.200 mm, kesme uzunluğu (maks.): 5.600 mm, X ekseni ilerleme hızı: 40 m/dak, The machine originates from a company liquidation. Inspections under power are possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Minimum panel width: 150 mm Minimum panel length: 250 mm Minimum panel height: 8 mm Gisdoy R S I Ujpfx Ahkot Maximum panel height: 90 mm Maximum feed speed: 40 m/min The machine is configured as follows: Number of processing units: 4 Unit 1: Double cutter, top and bottom Motor power: 11 kW Speed: 7,090 rpm Unit 2: Scoring unit Motor power: 2.2 kW Speed: 6,920 rpm Unit 3: Milling unit Motor power: 8 kW Speed: 7,090 rpm Unit 4: Milling unit Design model: mounted on rear table Motor power: 2.2 kW Speed: 6,920 rpm MACHINE DETAILS Control system: WINDOWS Machine programming software: POWER CONTROL PC22 Total connected load: 43 kW EQUIPMENT Upper pressure unit Additional guide for workpieces Rubber belts Positioning via NC The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and descriptive technical/commercial documentation. The buyer is entitled to inspect the goods prior to collection and assumes responsibility for installation, securing, and operation of the machine at the destination. External reference: 8448

Koşul: ikinci el, Üretim yılı: 2007, X ekseni hareket mesafesi: 6.000 mm, Y ekseni hareket mesafesi: 3.000 mm, takım magazinindeki yuva sayısı: 10, kontrolör modeli: POWER CONTROL PC85, maksimum mil hızı: 24.000 dev/dak, The machine originates from a company liquidation. Inspections under power are possible! TECHNICAL DETAILS Travel range X-axis: 6,000 mm Travel range Y-axis: 3,000 mm Working area X-axis: 5,600 mm Working area Y-axis: 1,200 mm Traverse speed X-axis: 80 m/min Traverse speed Y-axis: 80 m/min Traverse speed Z-axis: 30 m/min Milling spindles: 2 Main electrospindle power: 11 kW Spindle speed: 24,000 rpm Total number of tool changer positions: 10 MACHINE DETAILS Machining type: Milling Control system: POWER CONTROL PC85 Machine programming software: WOODWOP 5.0 Number of controlled axes: 4 Vacuum cups: 32 Single vacuum pump capacity: 120 + 80 m³/h Number of pumps: 2 Total installed power: 27 kW EQUIPMENT Vacuum loading Motorized transfer system Automatic panel loading system Automatic panel stacking system Liquid cooling system CE certification Protective structure for operating units with safety sensors Safety mesh on the machine Gsdpfx Ahjy R Swiokjit Waste chip conveyor The machine is offered and delivered in its actual legal and physical condition (“as seen and approved”) based on photo documentation and technical/commercial documents of a descriptive nature. The buyer is entitled to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination. External reference: 8457

Koşul: ikinci el, Üretim yılı: 2002, X ekseni hareket mesafesi: 10.500 mm, Y ekseni hareket mesafesi: 2.700 mm, takım magazinindeki yuva sayısı: 24, kontrolör modeli: POWER CONTROL PC83, frez mili devir hızı (maks.): 18.000 dev/dak, The machine comes from a business closure. Inspections under power are possible! TECHNICAL DETAILS Travel path X-axis: 10,500 mm Travel path Y-axis: 2,700 mm Working area X-axis: 5,600 mm Working area Y-axis: 1,200 mm Speed X-axis: 80 m/min Speed Y-axis: 80 m/min Speed Z-axis: 30 m/min Main electrospindle power: 12 kW Number of milling spindles: 2 Milling spindle motor power: 12 kW Milling spindle speed: 18,000 rpm Number of controlled axes: 4 Number of tools in changer: 24 Number of tool magazine positions: 12 (2 magazines) Maximum workpiece thickness: 40 mm Minimum workpiece thickness: 10 mm MACHINE DETAILS Type of machining: edge processing, milling Control system: POWER CONTROL PC83 Programming software: WOODWOP 5.0 Total installed power: 51 kW Number of working zones: 1 Number of rails: 5 Number of vacuum pods: 10 Number of vacuum pumps: 2 Capacity per pump: 120 m³/h Giedpsy R Si Ssfx Ahkjt EQUIPMENT Worktable: Pod and rail design Positioning via NC Automatic panel loading system: vacuum loading system Automatic panel stacking system Vacuum pump Liquid cooling system Adhesive unit with premelter for hot-melt glue Edge band magazine Rear tool magazine on the machine Protective structure for operating units with safety sensors Protective net attached to the machine Safety system: front safety mats Waste chip conveyor The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photo documentation and technical/commercial documents of descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for installation, fixation, and operation of the machine at the place of destination. External reference: 8458

Koşul: ikinci el, Üretim yılı: 2007, iş parçası yüksekliği (maks.): 60 mm, kenar kalınlığı (maks.): 35 mm, X ekseni ilerleme hızı: 40 m/dak, kontrolör modeli: POWER CONTROL PC22", The machine comes from a business liquidation. Inspection under power is possible! TECHNICAL DETAILS Number of working units: 11 Max. feed speed: 40 m/min Max. panel thickness: 60 mm Min. panel height: 16 mm Min. panel width: 85 mm Min. edge thickness: 0.3 mm Max. edge thickness: 35 mm Pressure system: rubber belt Workpiece support guides Positioning via NC Panel infeed alignment system The machine is configured as follows: PRE-MILLING / MILLING UNITS Number of pre-milling/milling units: 2 Unit 1: Pre-milling unit Motor power: 4.5 kW Speed: 5,860 rpm Automatic, timer-controlled engagement Unit 2: Cross-cutting unit Motor power: 1.8 kW Godpoy R R T Nefx Ahkjit Automatic tool change GLUING AND EDGE FEEDING Number of edge coils: 68 Number of pressure rollers: 14 (2 x 7) Lamps for preheating the panel edge Pre-melter for PUR adhesive Gluing system Glue pot for PUR adhesive Positioning via NC EDGE PROCESSING UNITS Number of edge processing units: 8 Unit 1: Cross-cutting unit Number of motors: 2 Motor power: 0.22 kW Speed: 10,350 rpm Positioning via NC Unit 2: Top and bottom flush trimming unit Number of motors: 2 Motor power: 0.55 kW Speed: 11,400 rpm Unit 3: Corner rounding unit Number of motors: 2 Motor power: 0.4 kW Speed: 10,980 rpm Automatic tool change Positioning via NC Automatic, timer-controlled engagement Unit 4: Edge scraping unit Positioning via NC Unit 5: Glue joint scraping unit Unit 6: Buffing unit Number of motors: 4 Motor power: 0.25 kW Speed: 1,390 rpm Automatic, timer-controlled engagement Unit 7: Buffing unit Number of motors: 1 Motor power: 0.30 kW Speed: 3,000 rpm Unit 8: Buffing unit Number of motors: 2 Motor power: 0.18 kW Speed: 1,370 rpm MACHINE DETAILS Control system: WINDOWS XP Machine programming software: POWER CONTROL PC22 The machine is sold and delivered in its actual and legal condition ("as seen and approved") on the basis of photographic documentation and technical/commercial documents with descriptive character. The buyer has the right to inspect the goods before collection and is responsible for the installation, securing, and use of the machine at the destination. External reference: 8453

Koşul: işlem için hazır (kullanılmış), Üretim yılı: 2008, makine/araç numarası: 0-250-23-0021, Fonksiyonellik: tamamen fonksiyonel, iş parçası uzunluğu (maks.): 2.500 mm, iş parçası genişliği (maks.): 1.000 mm, iş parçası yüksekliği (maks.): 80 mm, X ekseni ilerleme hızı: 138 m/dak, Y ekseni ilerleme hızı: 80 m/dak, Teklif verme, 15.06.2026 tarihine kadar zamanında alım yapma zorunluluğu doğurur! TEKNİK DETAYLAR X Eksen Hızı: 138 m/dak Y Eksen Hızı: 80 m/dak Z Eksen Hızı: 50 m/dak İş parçası uzunluğu: 300–2.500 mm İş parçası genişliği: 100–1.000 mm İş parçası yüksekliği: 4–80 mm MAKİNE DETAYLARI Kontrol ünitesi: power control PC 85 T Gedpfoy Sad Hjx Ahkoit Boyutlar (U x G x Y): 6.500 × 2.300 × 2.700 mm Elektrik: 3 × 415 V / 50 Hz Güç tüketimi: 19,5 kW Sigorta: 50 A Pnömatik: min. 7 bar Hava tüketimi: 2.500 NL/dak Emiş borusu: 2 × 280 mm Emiş kapasitesi: min. 4.450 m³/saat

Koşul: mükemmel (kullanılmış), Üretim yılı: 2021, Fonksiyonellik: tamamen fonksiyonel, used 5-axis CNC machining center Manufacturer: Homag Model: Centateq 110 (5-axis) Year of manufacture: 2021 Last manufacturer service: 18.05.2026 Console table with LED vacuum cup position indicator 6 manually adjustable consoles (length 1360 mm), each with 3 vacuum cups, 4 support rails Workpiece clamping via vacuum pump 63 m³/h LED system for vacuum clamps Working area X: 3100 mm Working area Y: up to 1250 mm with front stop; up to 1405 mm at the back with 25 mm tool diameter Working area Z: 260 mm / 160 mm with standard vacuum cups Drilling head: 12 vertical spindles; 6 (4+2) horizontal drill spindles Grooving saw 90° swiveling, max. 125 mm diameter Main spindle DRIVE Future 10 kW, liquid-cooled, 1,500 – 24,000 rpm Gijdpjy Nzc Sefx Ahkst 14-position tool changer (carousel) at rear and 10-position fixed linear tool changer at the side Aggregate carrier for 2 Z-axes (main spindle + drilling gearbox) Chip conveyor, program-controlled extraction hood Power-Control PC 86 POWERTOUCH control with Woodwop (incl. Lamello CLAMEX-P component) WoodWop also for offline programming (Office Professional version; DXF import Basic) UPS for the PC; Tapio Ready capable Basic barcode scanning system Documentation: German The tools, HSK tool holders, drill bits, etc. shown are not included in the scope of delivery! Machine available from end of May 2026 The attached PDF file for the machine description refers to the delivery condition of the machine from the manufacturer in 2021 and is not binding for the current delivery condition as a used machine.

Koşul: ikinci el, makine/araç numarası: 008522, Pozisyon 1: Robot HOMAG + KUKA-KFL10 + KR Godpfxoy Nx U Es Ahkoit Pozisyon 2: Tek taraflı kenar bantlama makinesi HOMAG + KUKA-KFL10 + KR Pozisyon 3: Robot HOMAG + KUKA-KFL10 + KR Pozisyon 4: Plaka geri besleme sistemi HOMAG + KUKA-KFL10 + KR

Koşul: ikinci el, makine/araç numarası: 008323, Takılan kenar türü: ince kenar, kalın kenar, masif ahşap Yapıştırma sistemi: EVA, PUR Birleştirme frezeleme: evet Çok fonksiyonlu ünite: evet Maks. ilerleme hızı: 20 m/dak Maksimum plaka kalınlığı: 60 mm Gjdpfxox Hpkxe Ahkoit Çalışma üniteleri: 7 adet

Koşul: ikinci el, makine/araç numarası: 008526, Çalışma alanı X ekseni: 4000 mm Çalışma alanı Y ekseni: 1100 mm Çalışma yüzeyi: Vakumlu konsol destekli Ana mil gücü: 12 kW Kontrollü eksen sayısı: 5 eksen Delme mili sayısı: 35 Gedpfx Ahoy Nx Uljksit Takım yeri sayısı: 29

Koşul: ikinci el, makine/araç numarası: 008324, Panelin maksimum genişliği: 1000 mm Gjdpfx Ajx Hpkrshkoit Panelin maksimum uzunluğu: 2500 mm Konveyör uzunluğu: 7000 mm Parça geri dönüşü için kenarbantlama makinesi: sağ
