TEK TARAFLI KENAR BANTLAMA MAKİNESİ-PARTİ 1

HOMAG TBR 100 + KAR 350 + TFU 200

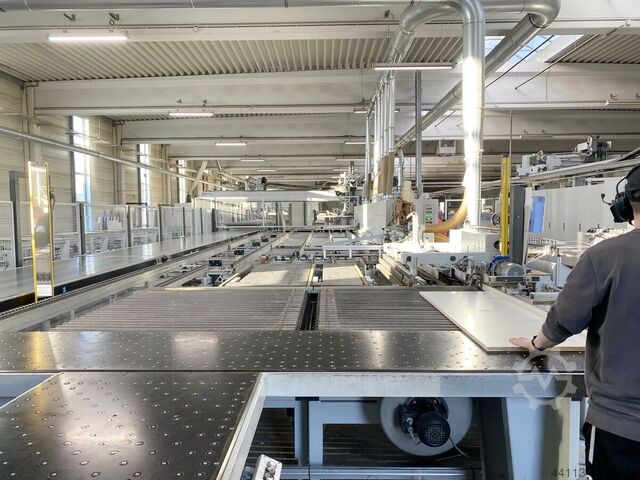

FLEXIBLE BATCH SIZE 1 PRODUCTION LINE AND SINGLE-SIDED EDGE BANDING PLANT (Right-hand configuration)
Comprising the following machines:

M.01) FEED TABLE AND AUTOMATIC WORKPIECE RETURN SYSTEM
"BARGSTEDT" Model PROFI TBR100/20/30/F

Hnodpfx Aeinigmji Hok
M.02) SINGLE-SIDED EDGE BANDING MACHINE (RIGHT-HAND SIDE) "HOMAG" Model Profi KAR350/12/A
Panel thickness (min/max) mm 8 / 60 - Working width (min/max) mm 200 / 1200
Control / Software: PC 22
Feed speed (adjustable) m/min 18 - 32
Panel infeed system WZ 14/30
Jointing milling unit with CNC control (2 x 3 kW)
DOUBLE gluing unit (PUR adhesive + premelter) 2 x PU 34
Pressure zone (CNC-controlled) - Edge magazine for rolls (12-way)
End trimming unit WK13 (CHAMFER/STRAIGHT automatic adjustment)
Pre-milling unit (2 x 0.55 kW) pneumatic adjustment
Multi-profile milling unit (CNC-controlled) MF 21 (2 x 0.55 kW)
Copy shaping unit (tracing) FF 32 (4 x 0.4 kW) with automatic changeover device
Contour trimming unit (for fine trimming) CNC-controlled FK 31 (30 m/min)
recently added after a technological overhaul
Multi-profile scraper unit (CNC-controlled) MN 21 (servo-driven)
Finishing unit (flat scraper + polishing unit) FA 11
Universal milling unit for grooving/rabbetting and profiling UF 11 (1 x 4 kW)

M.03) FEEDING AND STACKING SYSTEM "BARGSTEDT" Model TFU200/L/30/12/S
