Horizon APC-61II

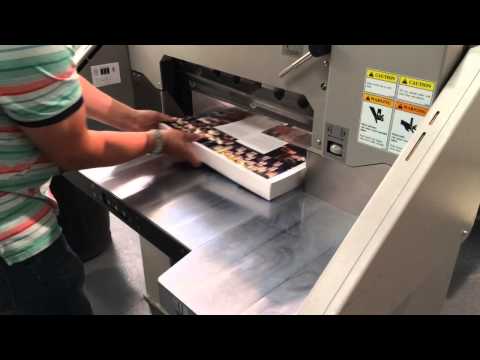

The Horizon APC-61II is a high-precision, programmable hydraulic guillotine designed for professional printing and finishing environments that demand reliability, productivity, and user-friendly operation.

Thanks to its hydraulic cutting and clamping system, this machine ensures consistent, high-quality cuts even for demanding jobs. Its intuitive touchscreen interface enables straightforward operation, with no need for highly specialized personnel.

The unit features an advanced programming system capable of storing up to 99 jobs with 99 steps each (for a total of 3,000 steps), optimizing repeatability and reducing setup times.

The backgauge, powered by a servomotor, ensures positioning accuracy of ±0.1 mm, guaranteeing precise results with every cut.

🔧 Key Features
- Hydraulic cutting and clamping system
- User-friendly intuitive touchscreen
- Job memory programming (99 programs)
- Automatic backgauge positioning via servomotor
- Clamp pressure adjustment from 4.9 to 16.6 kN
- Pre-clamp pedal for cut verification
- Frontal adjustment for blade angle and depth
- Safety system with dual push-button and automatic return
- Optional: safety beam

📐 Technical Specifications
- Cutting width: 610 mm
- Cutting height: 100 mm
- Infeed depth: 620 mm
- Accuracy: ±0.1 mm
- Cutting cycle speed: 3.1 seconds
- Ejector length: 20–150 mm
- Power supply: Three-phase 200 / 220 / 400 V – 50/60 Hz
- Dimensions: approx. 1,078 x 1,480 x 1,440 mm

💡 Advantages
- High precision and repeatability
- Easy operation (ideal even for non-specialist operators)
- High productivity thanks to programming features
- Robust and durable construction
- Perfect for print shops, copy centers, and bindery operations

🎯 Applications
- Cutting paper, cardboard, and printed materials
- Publishing production
- Professional graphic finishing
Laodpfx Acjywtyrs Hef
- Medium and long print runs
