HURCO BMC 25 /M - Ultimax 3

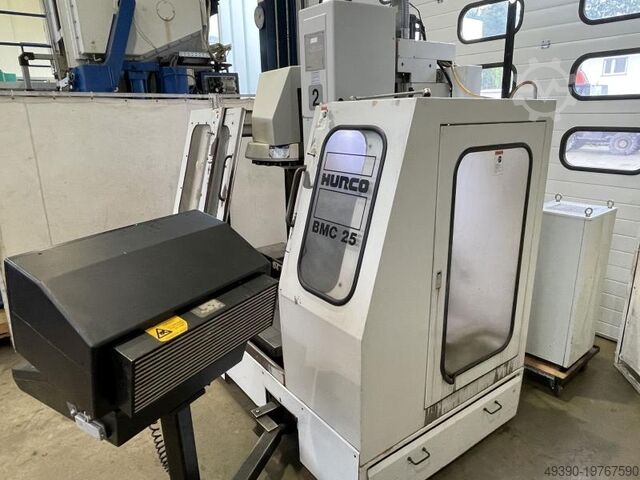

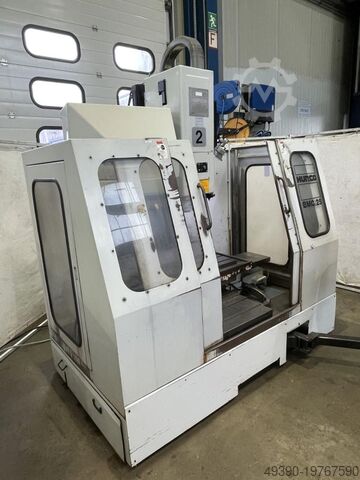

CNC Vertical Machining Center HURCO Type BMC 25/M
Serial No: ZB9-001-052 Year of manufacture: approx. 1995
Travel distances X: 610 mm, Y: 410 mm, Z: 560 mm
Table size (clamping area) 845 x 400 mm
Table size (with coolant groove) 1050 x 500 mm
Spindle taper SK 40
Distance spindle nose - table 155 - 710 mm
Table load capacity max. 500 kg
Overhang 420 mm
Spindle speed max. 10,000 rpm
Feed rate 3 to 5,080 mm/min
Nledpfxjw Nklhe Abloi
Rapid traverse 10 m/min
Spindle drive approx. 5.5 kW
Electrical connection 400 Volt, 50 Hz
- CNC path control Ultimax 3 with two TFT monitors
- electronic handwheel
- Indirect measuring system with rotary encoders on the ball screw

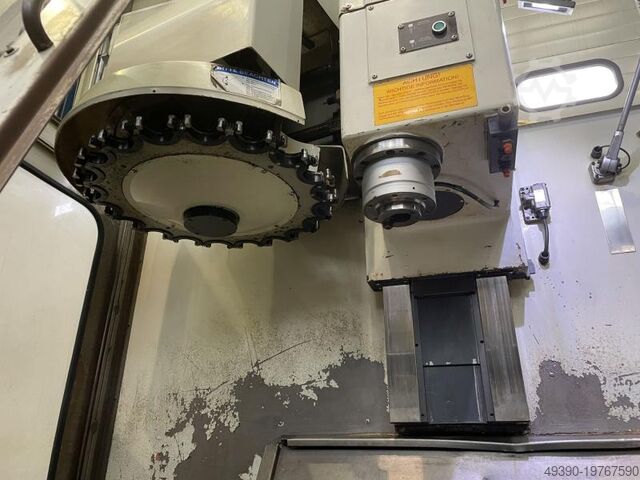

- Tool changer with 20 tool stations
- Fully enclosed cabin with sliding door
- Swiveling control panel
- Yaskawa spindle drives (Japan)
- Pneumatic mechanical tool clamp
- Without coolant system - pump available - coolant tank missing
Machine width 2,400 mm
Transport space required (L x W x H) 3,000 x 2,400 x 2,650 mm
Weight 4,200 kg
Good condition
