CNC işleme merkezi - 5 eksenli yapıştırma

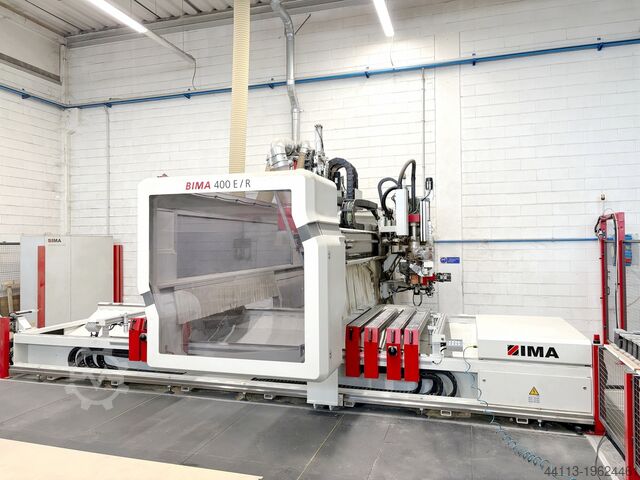

IMA BIMA Cx40 E / R / 145 / 400

5-axis (X-Y-Z-C + 5°) CNC MACHINING CENTER (POINT-TO-POINT)
CNC machining center for milling, drilling, cutting, and edge banding
Control: ICOS CNC (IMAWOP software)
Maximum working area (X - Y - Z) mm: 4000 x 1600 (2000) x 100 (Z-axis travel 650 mm)
Maximum working area (X - Y - Z) for edgebanding (mm): 4000 x 1600 x 100
No. 8 clamping table with consoles (number of consoles) - 1400 mm
LED setup aid for positioning vacuum pods (sleeves) (Y-axis)
No. 2 vacuum pumps (capacity 140 m³/h)
Work head safety enclosure, safety tread mats
Iiedpfsw A Ruqex Apyoc
Chip conveyor

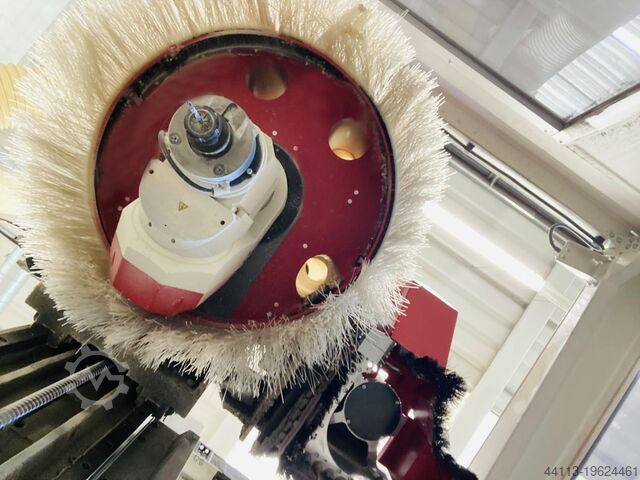

No. 1 vertical main spindle (milling unit) ROBOT HEAD HSK F63 (16 kW)
Automatic tool changer (carousel) with 18 tool positions
No. 21 independent vertical drilling spindles (4 x 1.2 kW)
No. 8 independent horizontal drilling spindles (4 in X + 4 in Y)
Grooving saw unit (swivels 90° in X-Y axis), diameter 200 mm
Gluing unit (PUR glue + premelter 283.203) VT 100 / 100
WITH 45° SWIVEL GLUING UNIT
No. 2 edge magazines for rolls

OPTIONS:
No. 1 adapter aggregate for flush or chamfer milling
No. 1 adapter aggregate for flush milling and profile scraper
