Double-side SIZING & EDGE BANDING machin
IMA Combima II / 190 / B / R3

Durum

İkinci el

Konum

Roreto

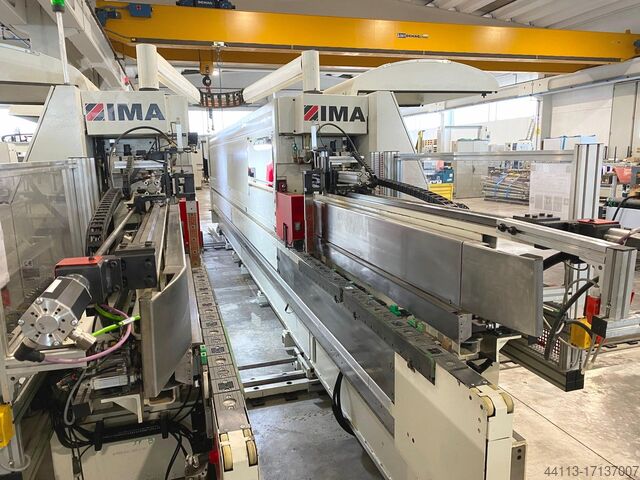

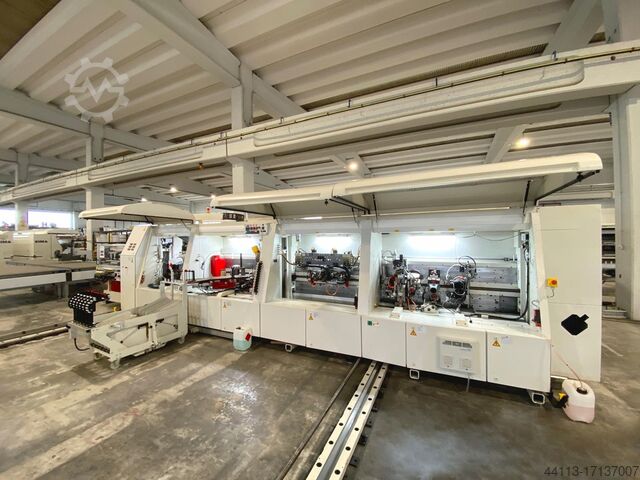

Double-side SIZING & EDGE BANDING machin IMA Combima II / 190 / B / R3

Temel veriler

Makine adı:: Double-side SIZING & EDGE BANDING machin

Üretici:: IMA

Model:: Combima II / 190 / B / R3

Durum:: mükemmel (kullanılmış)

Fiyat ve Konum

Konum:: 12062 Roreto CN, Italia

Ara

Teklif detayları

İlan Kimliği:: A171-37007

Referans numarası:: W06028

Son güncelleme tarihi:: 29.07.2026

Açıklama

Double side - Independent Machine (or 1st and/or 2nd in a line)
Edges (tape) thickness in rolls (min/max) mm 0,3 / 3
Panels thickness (min/max) mm 8 / 45 (60)
Working width (min/max) mm 236 / 1300
Numerical Control / Software ICOS Open (Windows base)
Without Transmission bar (Master & Slave system)
Adjustable feeding speed (m/min ) 10 - 50
Safety and sound-proof enclosures/cabins
"Hopper Feeder" (panels fall directly onto the feeding chains)
Distance (center-axes) of the Disappearing Dogs (mm) 270

SIZING PART (for each side):
Spraying unit (Anti-sticking liquid)
Anti-chipping Milling Unit 75.186 (1 x Kw 4,4)
Hogging Units (2 x Kw 6,6)
Free space

EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt + Quick Melt Unit) 04.1570 + 283.201
Pressure zone
Edge coils supporting unit (No. of reels) 6
Snipping (end-cutting) unit 08.42 (2 x Kw 0,66) 30 m/min (0°-25°)
Fine Trimming unit 08.055 (2 x Kw 0,66) 30 m/min
Glue scraping unit 08.521
Codpjum Untsfx Aazsri
Spraying Unit (for polishing liquid)
Buffing unit 08.617-2 (2 x Kw 0,18)
Free space
