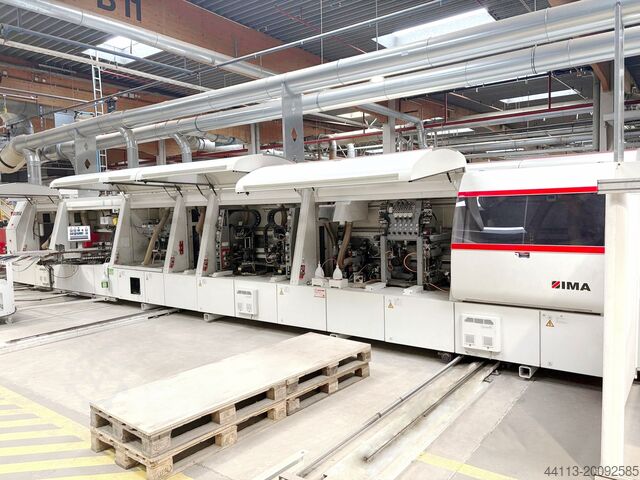

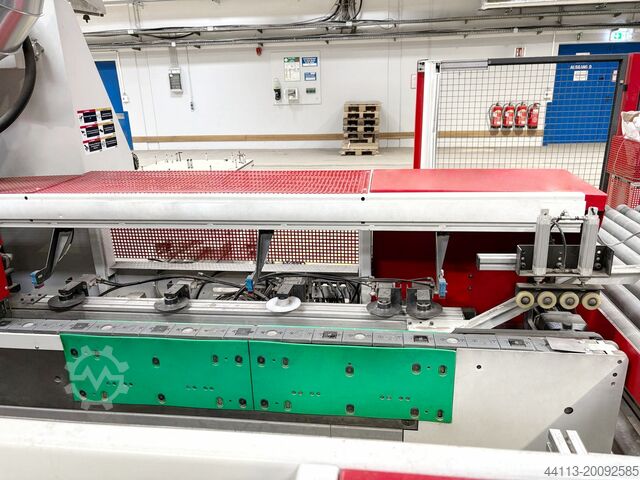

Double-side SIZING-EDGE BANDING Machine

IMA Combima II 590 / B / R3

Double side - Independent Machine (or 1st and/or 2nd in a line)
Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 + in stips / lippings (max mm 1)
Panels thickness (min/max) mm 8 / 45 (60)
Working width (min/max) mm 236 (266) / 3300
Numerical Control / Software ICOS Open (Windows base)
Adjustable feeding speed (m/min ) 10 - 50 (Master & Slave)
Safety and sound-proof enclosures/cabins

SIZING PART (for each side):
Anti-chipping Milling Unit 75.186 (1 x Kw 4,4)
Bedjxggzljpfx Alyoww
Hogging Units (2 x Kw 6,6) Max 35 m/min
Milling unit (Joint Trimmer) 75.186 (1 x Kw 4,4)

EDGE-BANDING PART (for each side):
Glueing Unit (P.U.R. Glue + Quick Melt system) VTG 3-24 + 283.203
Pressure zone + Edge coils supporting unit (No. 24 reels)
Snipping (end-cutting) unit 08.42 / 30 / B (2 x Kw 0,66) 30 m/min (0°-25°)
Rough/Fine Trimming unit 08.055 (2 x Kw 1) 0°-30° (30 m/min)
Multi Function Unit (Profile contour Trimming unit) MFA 08.342 (2 x Kw 0,66) SERVO - 20m/min
OPTIONAL: KFA 30
Profile Scraping unit 08.519
Glue scraping unit 08.521
Buffing unit 08.604 (Kw 0,25 x 4)
No. 2 Grooving units 08.190 (1 x Left-hand + 1 x Right-hand) (Kw 4,5 x 2) swivelling 90°/180°/270°
