Ekstraksiyonlu 3 eksenli işleme merkezi

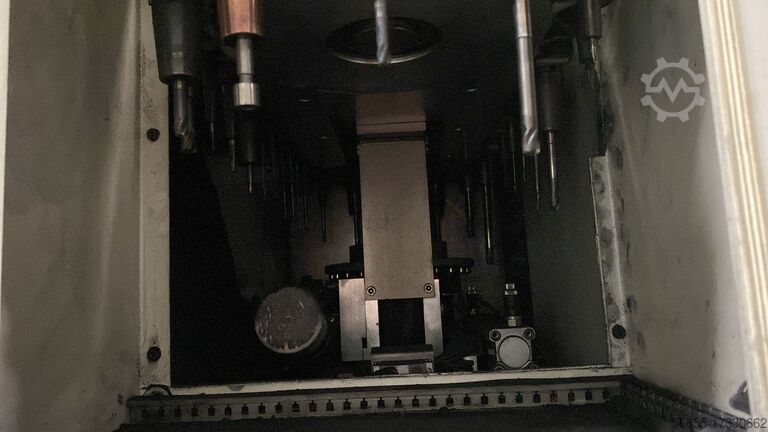

Ingersoll OPS 800 HSC-42.000 1/min

Durumu: iyi (kullanılmış), Üretim yılı: 2018, Internal Article No.: 25043 5-Axis CNC Machining Center Lsdpfx Aewz I Acsfrjhp POSmill H 500 U Year of Manufacture: 2018 Only approx. 1,000 spindle hours since spindle replacement Total machine operating hours: approx. 20,500 Spindle replaced in 2024 (18,000 rpm) Machine geometry recalibrated in 2024 Travel paths: X 650 / Y 850 / Z 500 mm Rotary table: 360° continuous Controller: Heidenhain iTNC 530 Spindle: 18,000 rpm Spindle interface: HSK-A63 Machine equipped as follows: - 60-position tool changer - Through-spindle coolant system (IKZ; 20 bar) with belt filter unit - Air through the spindle - Kessler rotary table, 500 mm diameter - Infrared 3D part measurement probe - Tool measurement via BLUM laser - Rotating inspection window - POS DCM collision avoidance module - Mobile electronic handwheel - Oil mist extraction - Heidenhain linear measurement system on X, Y, Z - Air purge for all linear measurement systems - Active air-to-air control cabinet cooler - Active cooling for the 4th and 5th axis, controlled - Network connection + USB port - Controlled spindle chiller - Heidenhain rotary measuring system - Contour protection with POSkontur - External hinge belt chip conveyor - Coolant pump at head, controlled by M-code - Chip flushing device and pump - Chip flushing equipment - Machine status light - Air at the spindle - Electro-mechanical oil/coolant separator - Automatic coolant level monitoring - 3-way media connection at table center - Hydraulic power unit with M-code control Connected load: 60 kVA Machine dimensions: W 4,800 / D 4,600 / H 3,000 mm + IKZ unit (LxWxH) 2,200 x 1,300 x 1,400 mm Weight: approx. 13,000 kg The machine is in excellent, well-maintained condition and comes from a small, family-run business. In 2024, the spindle was replaced and the geometry was re-calibrated (linear guides repaired and adjusted). The machine has only seen limited production since then.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2012, Fonksiyonellik: tamamen fonksiyonel, Kontrol MITSUBISHI MELDAS M70 Masa ölçüleri 910 x 400 mm Maksimum. masa yükü 960 kg X hareketi 760 mm Y hareketi 445 mm Z hareketi 520 mm Mil hızı 12000 rpm MAS BT40'ı kaydetme Ledpfjv H D E Ssx Afrjhp Tahrik gücü 22 kW 22 yönlü dergi Ağırlık 4400 kg Boyutlar 2200 x 2200 x 2700 mm Ekipman, aksesuarlar - Soğutma sistemi - Talaş konveyörü - Kılavuzlar

Durumu: kullanılmış, Üretim yılı: 2004, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 012004026074, İşletme kapanışı nedeniyle uygun fiyata verilecektir. Lhsdjwzlgxepfx Afrsp

Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2008, - KULLANILMIŞ - 5 EKSENLİ KÖPRÜ TİPİ DİKEY İŞLEME MERKEZİ     X EKSENİ HAREKETİ: 1750 mm Y EKSENİ HAREKETİ: 1400 mm Z EKSENİ HAREKETİ: 600 mm HIZLI BESLEMELER X-Y-Z: 35 m/dak Lsdpfxowl R Dds Afrehp İŞ MİLİ: 18000 rpm; 18,5-25 kW; HSK A63 TABLO BOYUTU: 1000 x 1200 mm KABUL EDİLEN MAKSİMUM YÜK: 5000 Kg TAKIM DERGİSİ: A CATENA ; 30 POS BAŞLIK: A/B EKSENİ OTOMATİK KONTROL ÜNİTESİ: HEIDENHAIN iTNC 530 AĞIRLIK: 18000 Kg GENEL BOYUTLAR: 6000 x 4000 x 3850 mm AKSESUARLAR: TALAŞ KONVEYÖRÜ ; TAŞINABİLİR EL ÇARKI ; LAZER TAKIM DÜZENLEYİCİ
