Veneer shears

JOSTING EFS 2600

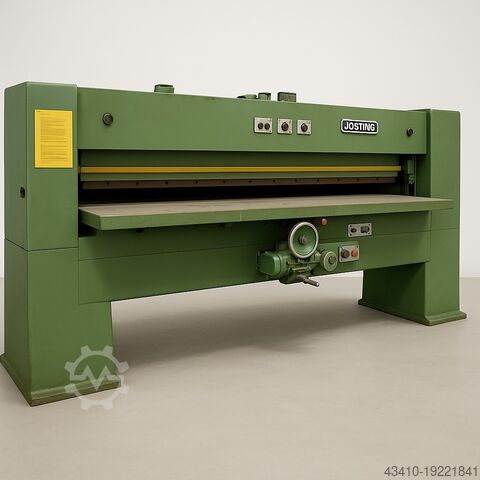

JOSTING EFS 2600 Veneer Shear
Year of manufacture: 1981
S/N 9443
Manufacturer: JOSTING Maschinenfabrik GmbH & Co. KG
Model: EFS 2600
Good condition

Purpose: Precise cutting and trimming of veneer sheets and veneer bundles

Technical specifications:
Cutting length:
2,600 mm (effective cutting width)
Material thickness:
up to approx. 3 mm (depending on veneer type and condition)
Drive:
Electric motor drive via belt and eccentric shaft
Cutting principle:
Upper blade moves vertically against a fixed lower blade (guillotine cut)
Blades:
High-quality high-speed steel (HSS), ground and replaceable
Feed mechanism:
Manual or optionally pneumatic/hydraulic, depending on the model
Table height:
approx. 850 mm (ergonomic for Operator)
Backgauge:
Manually adjustable with scale; Optionally available with digital display or motorized adjustment
Operation:
Two-hand safety control with emergency stop button
Foot pedal for the clamp on certain models
Clamp:
Mechanical or pneumatic, ensures precise fixation of the veneer stack
Safety features:
Two-hand operation
Emergency stop
Protective covers

Electrical connection:
400 V / 3 Ph / 50 Hz
Power rating: approx. 4–5 kW
Weight:
approx. 1,800–2,000 kg
Dimensions (L x W x H):
approx. 3,400 x 1,300 x 1,700 mm

Special features:
Bodpfxowmxmvj Al Iolp
Solid, torsion-resistant welded construction
High repeatability for serial cuts
Suitable for all common veneer types (beech, oak, maple, exotic woods, etc.)
Areas of application:

Veneer processing in joineries and Furniture factories
Veneer production and sorting
Interior and vehicle fittings (e.g., for yachts)
