KK Kletzer CNC Abkantpresse KKI EUROPA XL 3020 mm x 135 to, Y

Pressure: 135
Bending length: 3020
Frame width: 2555
Installation height: 550
Max. stroke length: 320
Throat depth: 450
Dimensions (LxWxH): 3745 x 2250 x 2835 mm
Approximate weight: 9300 kg
4 CNC axes (Y1, Y2, X, R): Yes, all axes controlled via Esa S630 (2D graphical control)
CNC crowning via control: Yes, via Esa S630 (2D graphical control)
Motor power: 15 kW
Technical specifications XL 30135
Unit
Bending length 3020 mm
Bending force 135 t
Approach speed 160 mm/s
Bending speed 10 mm/s
Return speed 130 mm/s
Stroke 320 mm
Installation / daylight height (E) 550 mm
Throat depth (D) 450 mm
Frame gap (B) 2555 mm
Machine length (L) 3745 mm
Machine width (W) 2280 mm
Width without front gauge (Y) 1720 mm
Maximum height 2835 mm
Main motor 15 kW
Oil tank volume 190 l
Machine weight 9600 kg

The robust EUROPA XL press brake stands out for its high precision, accuracy, and versatile application possibilities. The Europa XL offers a very large daylight opening, resulting in a long stroke (ram travel). The throat depth is also above average, providing maximum flexibility.
Rjdpfxed Ehino Agfjp

We focus on quality, which is also reflected in the controller. As standard, we use the high-quality Esa S640 (2D graphical control). Additionally, the KKI Europa XL press brake comes equipped with CNC axes Y1, Y2, X, and R—all managed through the controller. Of course, CNC crowning control via the Esa S640 (2D graphical control) is also included.

We make no compromises with the upper tool and die, fitting the KKI EUROPA XL CNC press brake with premium tooling from EUROSTAMP Italy. The quality of the machine is matched by our service—it is only as good as the support provided. That’s why we place a strong emphasis on highly qualified staff with long-standing experience in CNC sheet metal processing.

Key Features:

- CNC axes Y1, Y2, X, and R
- Esa S640 (2D graphical control)
- Backgauge with double linear guide and ball screw

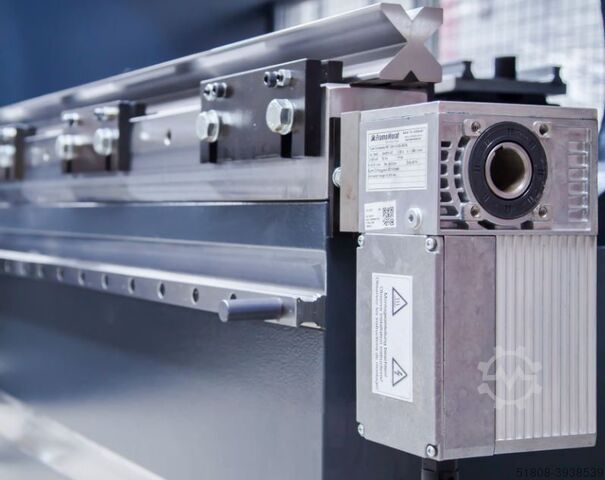

- Motorized CNC-controlled crowning

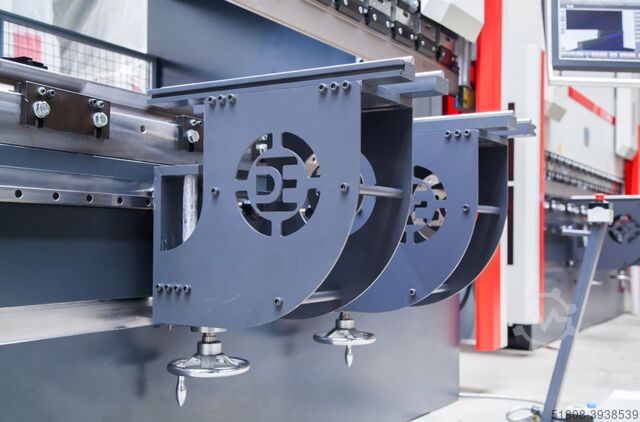

- 2 heavy-duty front support arms, height adjustable with handwheel; from 175 t, heavier version on linear guide
- Laser safety device on upper beam
- CE safety equipment
- Various options available

Available Controllers:
ESA 640 2D 15" touchscreen control €4,520 (incl.)
ESA 675 W 3D 21" touchscreen control (Windows-based) €6,485
DELEM 66 T 2D 17" touchscreen control (Windows-based) €10,165
DELEM 69 T 3D 17" touchscreen control (Windows-based) €16,350
