KK Kletzer CNC Abkantpresse KKI EUROPA XL 4050 mm x 175 to, Y

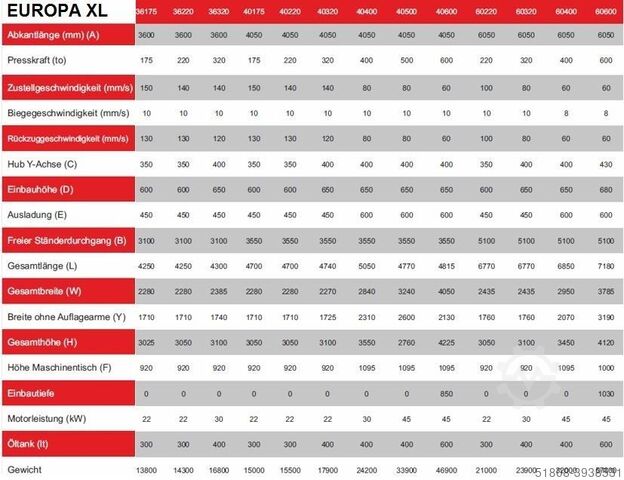

Pressure: 175 (unit unspecified)
Bending length: 4050 mm
Frame width: 3550 mm
Installation height: 600 mm
Max. stroke length: 350 mm
Hsdpfxsd Ehide Agfji
Throat depth: 450 mm
Dimensions (LxWxH): 4790 x 2290 x 3030 mm
Approx. weight: 13,250 kg
4 axes (Y1, Y2, X, R): Yes, all axes controlled via Esa S630 (2D graphic control)
CNC crowning via control: Yes, via Esa S630 (2D graphic control)
Motor power: 22 (unit unspecified)

The XL CNC Economic, a powerful, fast, and precise new Smart XL model, is designed for companies in the small and medium-sized sheet metal processing sector. The ESA S 640 2D series CNC controls, which are installed as standard on the press brakes, process multi-stage components in a single pass using direct angle programming and a bending step system, with the steps automatically controlled by the CNC.

Programmability of upper beam position, dwell time at the bending point, opening speed of the upper beam after bending, as well as bending speed, allows even challenging bends to be performed easily and also contributes to faster production cycles.

Thanks to the ability to program 2D parts and tools on a computer, programs for subsequent parts can be created while the machine is operating. The bending steps are automatically selected and transferred to the machine via USB or local network.


Standard equipment
- X and R axis backgauge
- European segmented top and bottom tool (Promecam)
- Holders for European segmented top and bottom tool
- 15″ ESA 640 2D control unit
- Manual crowning system under the table
- Large throat depth: 450 mm
- Large cylinder stroke: 350 mm
- Hawe hydraulic systems
- Anti-panic foot pedal with emergency stop button
- Front support arms
- Safety covers on side and rear doors
- CE-certified light barrier
- DSP-AP laser finger protection + MCS Safety PLC (manual)


Optional controls:
- ESA 640 2D 15" touchscreen control ¤ 4,520.00
- ESA 675 W 3D 21" touchscreen control (Windows Base) ¤ 6,485.00
- DELEM 66 T 2D 17" touchscreen control (Windows Base) ¤ 10,165.00
- DELEM 69 T 3D 17" touchscreen control (Windows Base) ¤ 16,350.00

KK-Industries GmbH

There’s something for everyone!
