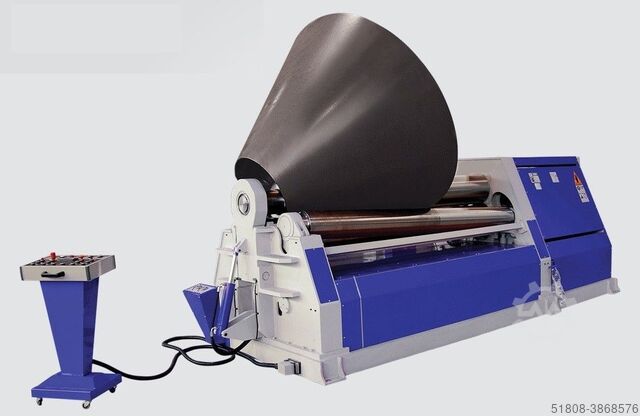

4 rulo sac haddeleme makineleri hidrolik

KK-Industries CY4R-HHS 230-30/8.0

Sheet thickness: 8 mm
Bending length: 3100 mm
Top roll diameter: 230 mm

Technical Data:

Maximum sheet thickness: 8 mm (5/16")
Pre-bending thickness: 6 mm (1/4")
Minimum bending diameter (with top roll diameter = TRD): TRD × 3
Working length: 3,100 mm (10 ft)
Motor power: 7.5 kW (10.1 HP)
Number of rolls: 4
Roll dimensions:
Top roll diameter: 230 mm (9.1")
Bottom roll diameter: 210 mm (8.3")
Side roll diameter: 190 mm (7.5")
Machine dimensions:
Length: 5,200 mm (17.1 ft)
Height: 1,300 mm (4.3 ft)
Width: 1,400 mm (4.6 ft)
Weight: 5,830 kg (12,853 lbs)
Fsdpfx Aod Ab Saodmspb

- Hardened and polished rolls
- Robust body made from ST-52 steel
- 4 symmetrical roll arrangement
- Hydraulically operated top cover for easy material removal
- Digital position display for bottom and side rolls
- Hydraulic adjustment
- Top and bottom rolls driven by hydraulic and gearbox
- Vertical movement of the bottom roll is hydraulically powered
- Mobile control panel
- CE compliant

Options:
- Variable rotation speed EUR 4,681
- Material feed table EUR 3,400
- Oil cooler EUR 1,040
- Central support EUR 8,250
- Side supports EUR 7,070
- Automatic material extractor
- PLC control
- CNC control
- Automatic material loading system
- Interchangeable top roll
- Adjustable bottom roll support system (for special customer requirements)

We have numerous references!
