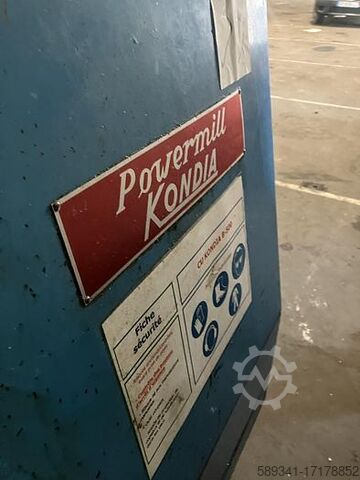

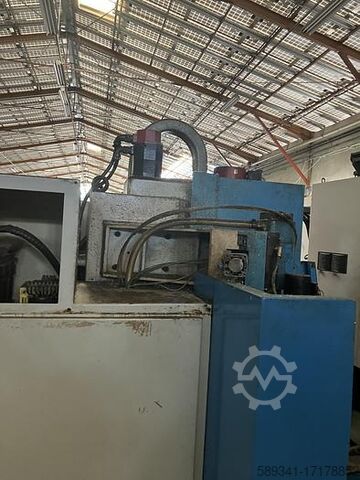

1991 KONDIA B-500

KONDIA B-500

Durumu: incelemesiz (kullanılmış), Üretim yılı: 1997, Fonksiyonellik: denenmemiş, X ekseni hareket mesafesi: 660 mm, Y ekseni hareket mesafesi: 380 mm, Z ekseni hareket mesafesi: 380 mm, kontrolör modeli: HEIDENHAIN TNC 425, maksimum mil hızı: 6.000 dev/dak, No reserve price – guaranteed sale to the highest bidder! Bidding obliges the buyer to collect the item within the specified period between 04/05/26 and 07/05/26. TECHNICAL DETAILS Travel X-axis: 660 mm Travel Y-axis: 380 mm Travel Z-axis: 380 mm Spindle taper: ISO 40 Spindle speed range: 100 – 6,000 rpm Rapid traverse: 15 m/min Positioning accuracy: ±0.01 mm Repeatability: ±0.005 mm Resolution: 0.001 mm Table Table dimensions: 700 x 360 mm Max. table load: 300 kg Distance table to floor: 840 mm Distance from table center to column (min.): 190 mm Distance from table center to column (max.): 570 mm Tools Max. diameter with adjacent tools: 85 mm Max. diameter with free adjacent slots: 135 mm Max. tool length: 250 mm Max. tool weight: 6 kg Max. total tool weight: 60 kg Ball screw Lead: 32 mm Diameter: 10 mm T-slots Number: 3 Width: 18 mm Pitch: 110 mm MACHINE DETAILS Dujdpfx Ajyr I D Tjbfep Control: HEIDENHAIN TNC 425 Connected load: 13 kW Dimensions & Weight Dimensions (L x W x H): 2,300 x 2,000 x 2,450 mm Machine weight: 4,000 kg EQUIPMENT 16-station tool changer Tool holders Touch probe 4th axis Note: The machine vise shown in the pictures is not included in the sale. External reference: Lot 20

Durumu: incelemesiz (kullanılmış), Üretim yılı: 1999, besleme uzunluğu X ekseni: 760 mm, y ekseni ilerleme uzunluğu: 430 mm, Z ekseni ilerleme mesafesi: 500 mm, 4. eksenli ultimax 3 bt 40 pim mil hızı 8000 rpm yarışlar 760X430X500MM 24 takım değiştirici Dsdpfxsvgbrve Abfoup masa 860X508MM

Durumu: incelemesiz (kullanılmış), Üretim yılı: 1990, Fonksiyonellik: denenmemiş, makine/araç numarası: 5098, X ekseni hareket mesafesi: 960 mm, Y ekseni hareket mesafesi: 380 mm, Z ekseni hareket mesafesi: 380 mm, kontrolör modeli: HEIDENHAIN TNC 425, maksimum mil hızı: 6.000 dev/dak, No minimum price – guaranteed sale to the highest bidder! Bidding obliges the buyer to collect the item within the specified period between 04.05.26 and 07.05.26. TECHNICAL DETAILS Travel X-axis: 960 mm Duodpjyr Hlpjfx Abfjp Travel Y-axis: 380 mm Travel Z-axis: 380 mm Table dimensions: 700 x 360 mm T-slot number x width x spacing: 3 x 18 x 110 mm Distance table to floor: 840 mm Maximum table load: 300 kg Distance from table center to column: min. 190 mm, max. 570 mm Positioning accuracy: ±0.01 mm Repeatability: ±0.005 mm Resolution: 0.001 mm Rapid traverse: 15 m/min Spindle speed: 100 to 6,000 rpm Spindle taper: ISO 40 Ball screw X and Y axes: 32 x 10 mm pitch/diameter Tool diameter (adjacent tools max.): 85 mm Tool diameter (with free adjacent stations max.): 135 mm Maximum tool length: 250 mm Permissible weight per tool: 6 kg Total tool weight max.: 60 kg MACHINE DETAILS Control: HEIDENHAIN TNC 425 Connected load: 13 kW Dimensions & Weight dimensions (L x W x H): 2,300 x 2,000 x 2,450 mm Weight: 3,500 kg EQUIPMENT 16-position tool changer 3D touch probe Note: The machine vice visible in the photos is not included in the scope of delivery. External reference: 25

Durumu: incelemesiz (kullanılmış), Üretim yılı: 1992, Fonksiyonellik: denenmemiş, makine/araç numarası: B5133, X ekseni hareket mesafesi: 960 mm, Y ekseni hareket mesafesi: 380 mm, Z ekseni hareket mesafesi: 380 mm, kontrolör modeli: HEIDENHAIN TNC 425, maksimum mil hızı: 6.000 dev/dak, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates timely collection between 04.05.26 and 07.05.26. TECHNICAL DETAILS Dsdpeyr Hinjfx Abfoup X-axis travel: 960 mm Y-axis travel: 380 mm Z-axis travel: 380 mm Table dimensions: 700 x 360 mm T-slot (number x width x spacing): 3 x 18 x 110 mm Distance from table to floor: 840 mm Maximum table load: 300 kg Distance from table center to column (min.): 190 mm Distance from table center to column (max.): 570 mm Ball screw (X and Y axis): 32 x 10 mm Spindle taper: ISO 40 Spindle speed: 100 to 6,000 rpm Rapid traverse: 15 m/min Positioning accuracy: ±0.01 mm Repeatability: ±0.005 mm Resolution: 0.001 mm Maximum adjoining tool diameter: 85 mm Maximum tool diameter with adjacent pockets free: 135 mm Maximum tool length: 250 mm Permitted weight per tool: 6 kg Maximum tool total weight: 60 kg MACHINE DETAILS Control unit: HEIDENHAIN TNC 425 Dimensions & Weight Dimensions (L x W x H): 2,300 x 2,000 x 2,450 mm Weight: 3,500 kg Connection: 13 kW EQUIPMENT 16-position tool changer 3D probe Note: The machine vice visible in the photos is not included in the scope of delivery. External reference: 23

Durumu: kullanılmış, Üretim yılı: 1995, x-path 600 mm y-yolu 350 mm z-path 140 mm Masa sıkıştırma yüzeyi 700 x 300 mm Mil tutucu ISO 40 İş mili hızları 100 - 4000 rpm İş mili merkezinden kolona olan mesafe 395 mm İş mili burnu ile tabla arasındaki mesafe min. 170 - maks. 550 mm TNC 407'yi kontrol edin Frezeleme ilerlemeleri 3 + 2000 mm/dak Hızlı travers 5000 mm/dak İş mili motoru 5,5 kW Toplam güç gereksinimi 9 kW Makine ağırlığı yaklaşık 1,9 ton Alan gereksinimi yaklaşık 2,5 x 1,8 x 2,2 m Heidenhain kontrol TNC 407, Djdpfetv Idxox Abfeup
