Freze makinesi

Kunzmann WF410MA

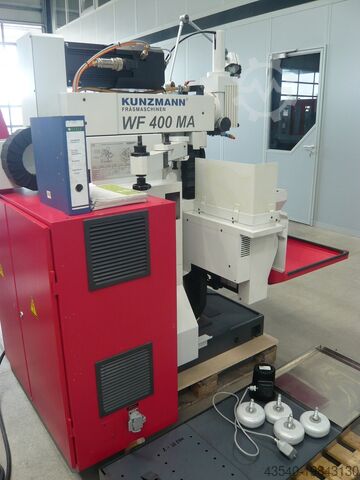

Universal Milling Machine Kunzmann WF 410MA with Heidenhain 3-Axis Active Digital Display – Mint Condition, CE Compliant!

Technical Specifications:

>> Year of manufacture: 2014, Machine No. 410624

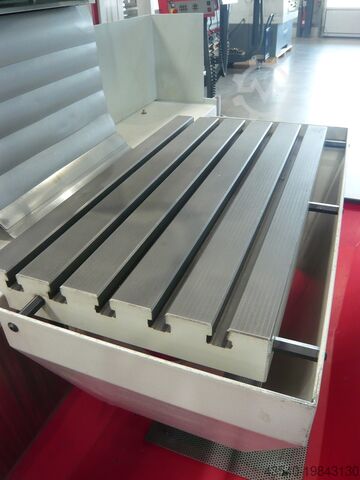

>> Milling table clamping surface: 600 x 375 mm
Clamping slots: 5
Slot width: 14 H7
Max. load: 250 kg
>> Spindle speed range: 1–4,500 rpm
>> Feed rate: up to 5 m/min
>> Travel X/Y/Z: 410/350/450 mm
>> Vertical and horizontal quill – SK40
>> Hydraulic clamping system
>> Weight: approx. 1,800 kg
>> Dimensions (approx.): 2 x 2 x 2 m
>> Main drive motor (100%/25% duty cycle): 8.5/16.2 kW

Equipment and Features:

>> Heidenhain 3-axis active digital display
>> Hydraulic clamping vertically and horizontally
>> Automatic central lubrication
>> Spindle brake
>> Technical documentation, spare parts diagrams, operating manual
Cjdpfx Abjw Swb Ijvsrh
>> Coolant system

About the machine:

Offered here is a Kunzmann WF 410MA universal milling machine, equipped with a Heidenhain 3-axis active digital display. Whether in the workshop, production, or training, it proves its quality every day. This universal milling machine is in mint condition. Additionally, the machine features hydraulic clamping both vertically and horizontally. Conversion from vertical to horizontal operation is straightforward, thanks to the swiveling vertical head. The guideways are lubricated regularly via the central lubricating system. The Kunzmann has been mechanically and electrically tested by us. Take the opportunity to inspect and test the Kunzmann on-site under power.
