100 mm yapıştırma yüksekliğine kadar kenar bantlama makinesi

Lange Maschinenbau B 70 K-100

Used machine

Year of manufacture: 2018

Special feature: Machine suitable for edge heights up to 100 mm!

Condition: Factory-inspected by Lange Maschinenbau


Features and technical specifications:

- Machine table with 13 support rollers for improved workpiece guidance
- Edge feed synchronized with conveyor belt
- Edge thickness adjustable via digital counter

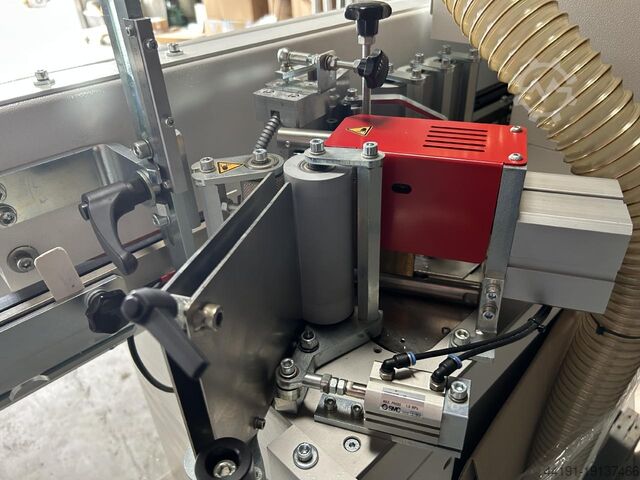

- Pneumatic roller separation with knife (for cuttable edging materials)
- Three pressure rollers

Conveyor feed:
- 0.25 kW
- Approx. 1250 mm long
- Approx. 6.0 m/min
- 50 mm wide toothed belt with thick, workpiece-protective rubber overlay
- Digital counter for height adjustment

- Direct glue application to the workpiece: drip-proof glue pot with bottom glue supply and quick heat-up time after machine standstill

- Flush cutting unit:
- For front and rear workpiece edges
- Automatic sensing on the workpiece
- Pneumatic chopping with knife for cuttable edging materials

- Flush trimming unit:
- With vertical sensing and horizontal guidance
- Reproducible adjustment via digital counters
- Two powerful 0.4 kW high-frequency motors
- Infinitely variable from 4,000 to 18,000 rpm
- Cutter Ø 70 mm, Z4, radius 2 mm/15°
- Central extraction nozzle Ø 100 mm
- Two chip extraction hoods with hose Ø 60 mm

- Automatic height adjustment of top cutter with conveyor feed

- Continuous workpiece support, approx. 1800 mm long
Ledpfx Aaewka S Iomsai
- Workpiece support rail, approx. 300 mm extendable
- Rotatable film reel Ø: 800 mm

- Workpiece width: min. approx. 80 mm
- Workpiece thickness: 10 – 100 mm
- Workpiece length: min. approx. 220 mm
- Edge thickness: 0.4 – 2.0 mm
- Roller separation: max. 1.0 x 55 mm, 2 x 45 mm
- Glue pot heating power: 2.7 kW
- Heat-up time: approx. 10 minutes
- Working height: approx. 880 mm
- Electrical connection: 400V, 50 Hz, 3Ph + N
- Total connected load: 3.8 kW
- Pneumatic connection: 6 bar

Dimensions (without film reel): approx. 1800 x 700 x 1300 mm
Weight: approx. 260 kg

Availability: short-term

Location: Flörsheim
