EUROMIX MTP - 12m³ Betonmischer-Auflieger

X TO GO? EUROMIX TO GO? OFFERS YOU IMMEDIATELY AVAILABLE NEW STOCK VEHICLES FROM OUR LOCATION IN PORTA WESTFALICA/GERMANY.

FOR ALL CUSTOMERS WITH URGENT NEEDS (SHORT-TERM CAPACITY EXPANSION OR REPLACEMENT INVESTMENT)

Your Benefits:

* Fully equipped vehicles (concrete mixers/tippers) ready for immediate operation
* Immediate availability directly from the manufacturer
* Assembly, installation, commercial vehicle
* Best price-performance ratio
* Financing options
* Trade-in of your used vehicles

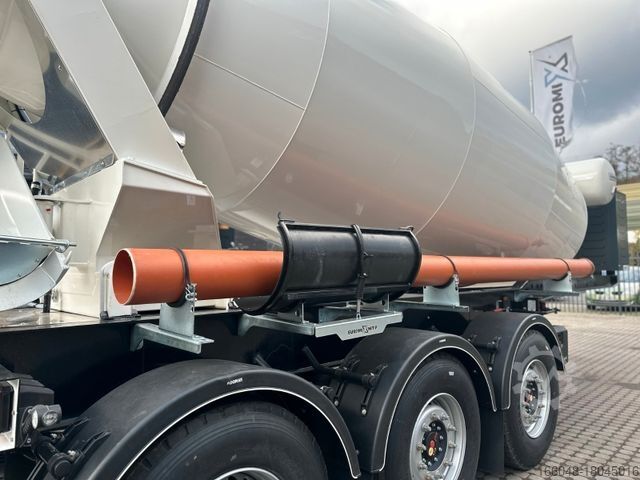

EUROMIX MTP 12 cbm Mixer Semi-Trailer

EUROMIX MTP – Mixer Superstructure EM 12 R – Standard

* Model: EM 12 R
* Nominal capacity 12m³ ready-mixed concrete
* Mixer drum in standard design
* Mixer drum made of S355 grade material
* Mixing spirals made of S420 MC grade material
* Gearbox: ZF P5300
* Hydraulic pump: Bosch Rexroth
* Hydraulic motor: Bosch Rexroth
* Integrated oil cooling system
* Mechanical mixing control, electrical start-stop
* Compressed air water system
* Water connection at the operator platform with hose
* Water filling pipe, one-sided with C-coupling
* Mixer drum with service hatch
* Access ladder with operator platform
* Rubber collar on the loading hopper
* Swiveling single-arm discharge chute, steel
* Wear plates in loading hopper, discharge tray, and swivel chute
* Drum locking device for maintenance safety
* Polyurethane primer
* Weight approx. 4,725kg, deviations +/- 5%
* Emergency stop function in accordance with EU safety standards
* Steel mudguards over rear axles
* 2x extension chutes (steel or plastic)
* Water system
* 650L water tank (compressed air)
* Steel water tank
* Shut-off valve mounted below the water tank in the fill line
* Water connection with "C" coupling
* Operations & Electrical
* Mixer operation – mechanical at the rear
* Start-stop system (with EDC)
* Geometric volume 19,420L
* Water tank volume 12,787L
* Tank inclination 10.5°
* Length 7,545mm
* Width 2,300mm
* Height 2,765mm

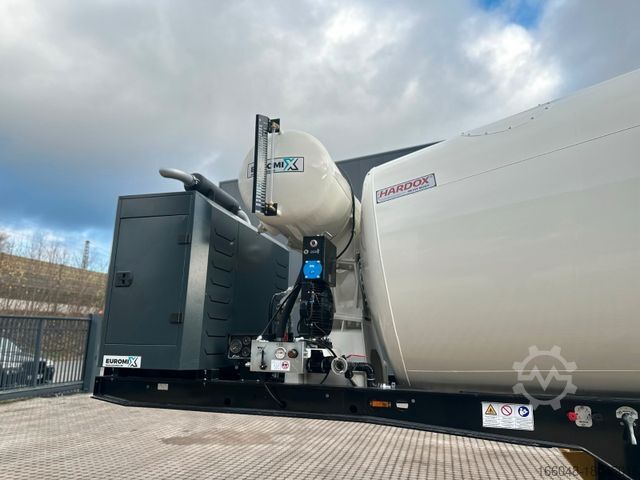

Engine: FTP 55 kW

Mounted on Euromix MTP 3-axle semi-trailer

Vehicle type: EuromixMTP KIS 24 3-axle mixer chassis
Axles with short link ratio (310/340) for laying operation, incl.
Axle 9t, SAF 22.5" disc brake, single tires, air suspension, 3x included
Godpfx Asvh Ac Ejc Hjkc
Axle track width: 2,040mm (standard), 3x included
Axle spacing approx. 1,400mm / 1,400mm, 1x included
EBS brake system
Tires: 385/65 R22.5
Plastic mudguards, 180°, over each axle (for 3 axles), 1x included
Chassis painted in RAL 9005 deep black, 1x included
KTL with zinc phosphating and powder coating for maximum corrosion protection (only powder color available), 1x included
Tire pressure monitoring, basic version, connected to EBS CAN bus, 1x included
24t telescopic landing gear with one-side operation and half-round with base plate, 1x included
Axle loads: 24,000kg (3x8,000kg; technically: 3x9,000kg), 1x included
Chassis length approx. 8,570mm, 1x included
