Kaplama presi

Ott 300 K 2513

No. 04525

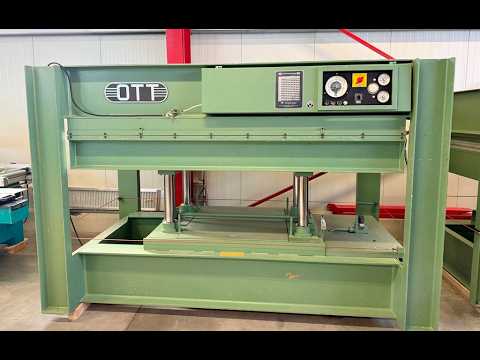

Ott 300 K 2513 Veneer Press

Used

Very robust design with 4 longitudinal beams in the upper press section and 4 longitudinal beams in the press table
Panel dimensions: 2550 x 1350 mm (L x W)
Total pressing force: 100 tons
Heating: electric, replaceable heating elements
Heating plates made of solid aluminum, covered with Mylar film
Maximum temperature: 150°C
Specific pressing pressure: 3.0 - 5.0 kg/cm²
4 press cylinders, each with 90 mm diameter
Rack-and-pinion guide for the press table
Push-button control for Open – Close – Stop
Continuous emergency stop wire, configured for two-hand operation
Stepless opening width up to approx. 420 mm
Automatic pressing pressure regulation via high-pressure manometer
Pressure preselection table with 2 specified values for each workpiece size

Transport dimensions approx. 3150 x 1550 x 2150 mm (L x W x H)
Weight approx. 5000 kg

Gjdpfx Adey Aplzsrobk
To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended.

Sale as-is

Technical data, condition description, year of manufacture, and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
There is no warranty for used machines; the rule is: "purchased as inspected"

Payment terms: Prices plus statutory VAT, payment prior to collection or shipping

Delivery terms: ex stock
