Primultini 1400 kesme hattı

Primultini 1400

SECOND-HAND LOG CUTTING LINE, OVERHAUL YEAR 2025

A. LOG FEED RAMP
Length: 6 m, 3 chains
Gear motor

1. LOADING GROUP FROM RAMP TO CARRIAGE
- with 4 hydraulic arms, each operated by a single cylinder

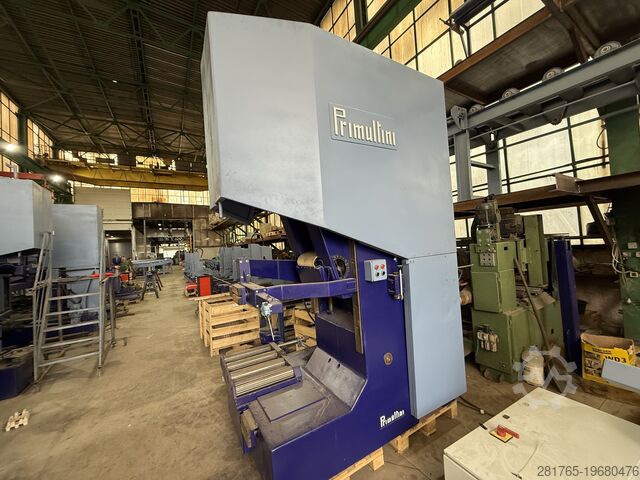

1400 MODEL SAW COLUMN
Structure made of cast iron with stabilizing treatment.
- Wheel diameter: 1,400 mm
- Wheel width: 180 mm, suitable for blade widths up to 205 mm
- Wheels have solid fusion discs with special ribs to enhance mechanical properties, with applied stabilization treatment
- Upper wheel support on prismatic guides with ball recirculation
- Hydraulic blade guide based on prisms and ball recirculation, equipped with dual-cylinder hydraulic pressure devices: the blade is pushed outward during the cutting phase to provide maximum stability at high cutting speeds.
During carriage return or when the log carriage is idle, the blade automatically retracts to its rest position, thereby reducing pressure accordingly.
- Centralized column lubrication with manual pump
- Main motor: 90 kW, automatic star-delta, pulley drive, belts, and motor brake

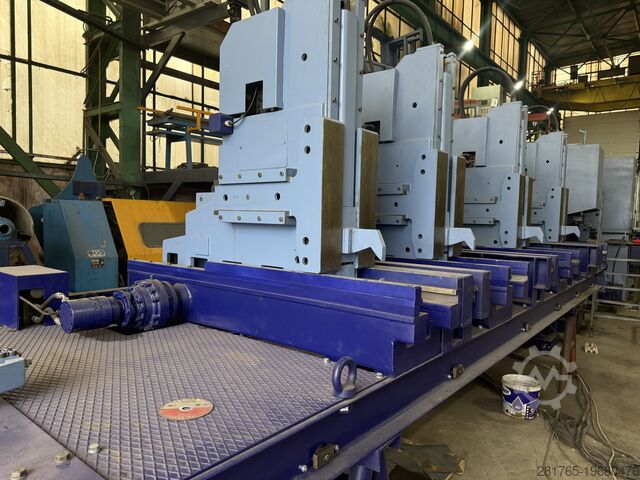

HYDRAULIC CARRIAGE Mod. CF
- 4 hydraulic clamps
- Maximum clamp opening: 1000 mm
- Hydraulic hook closure with 2 pressure settings
- Simultaneous hydraulic bump stops
- Fast and precise movement of hydraulic clamps with Brushless servo-motor
- Electronic thickness control (for changing clamps): comprises an integrated operator panel connected to a PLC
- The PLC communicates directly with the brushless motor, enabling rapid and precise positioning down to a tenth of a millimeter
- All machine components (column, carriage, and control panel) are interconnected via Can Open protocol. This system completely eliminates all command cables and auxiliary relays, minimizing wiring and reducing both failure risk and susceptibility to interference.
- Stores absolute and relative thicknesses
- 4 independent electro-hydraulic arms for easy log rotation, with inclination up to 90 degrees
- Maximum log feed speed: 140 m/min
- Centralized automatic lubrication with electric pump
- Dual control station with seat and electric servo-control
- Electrical wiring and panel
- Rails

FIRST UNLOADING ROLLER TABLE — for slab removal
- Length: 6 m
- Gear motor
- Fixed end stop barrier

Hydraulic power unit equipped with:
- pump
- tank, filters, oil level sight glass

B + C. a) Electrical installation: cables, photocells, sensors, switches, etc.
b) Hydraulic installation: various sizes of steel pipes, elbows, supports, rubber hoses, solenoid valves, etc.
Electrical control panel with IP55-protected buttons, main switch, transformer, protection circuit breaker, contactors, thermal and auxiliary relays, PLC, etc.

MANUFACTURER: PRIMULTINI ITALY
