Scantech Digital GmbH Trackscan Sharp49

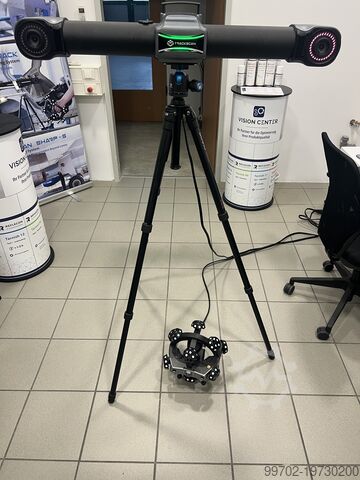

The 3D laser scanner Trackscan Sharp49 offered here is a mobile, tracker-based 3D scanner, year of manufacture 2023, with a new price of €100,000. Its main advantage is the ability to digitize components without the need to attach targets to the object. This is possible because targets are already integrated into the scanner housing and are registered by the tracker unit. This measuring device is particularly well-suited for the rapid digitization of large components, several meters in size, while maintaining comparatively high accuracy.

The device was calibrated upon delivery in an ISO 17025 accredited laboratory. We recommend having the calibration performed by the manufacturer upon purchase.

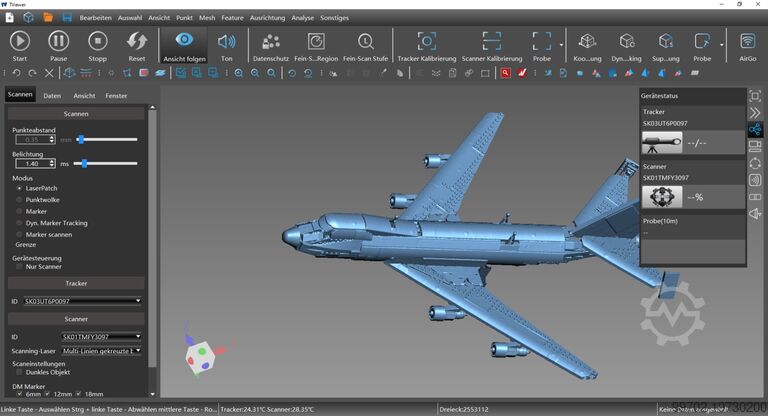

The scanning software is included in the offer.

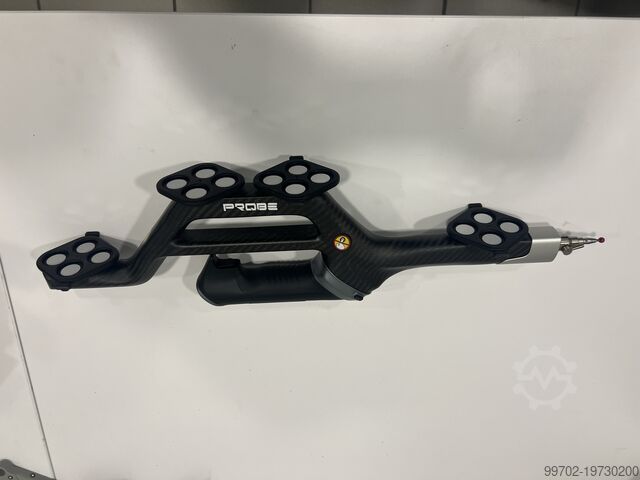

Optional extras available: a touch probe for contact point measurements on objects and a laptop.

Sample applications:
- Digitization of manufactured components for subsequent metrological evaluation, e.g., for first article inspections
- Digitization of objects or spare parts for downstream reverse engineering, e.g., to manufacture replacement parts or to implement design changes
- Digitization of large-scale machinery and room areas for planning and simulation purposes
- Digitization of vehicles in the tuning sector

Technical specifications:
3 laser modes
Scan rate: up to 2,600,000 measurements/sec
Volume accuracy:
at 10.4 cubic meters: up to 0.049 mm
Bjdpfx Aow Id E Eemmswp
at 28.6 cubic meters: up to 0.067 mm
at 49.0 cubic meters: up to 0.089 mm

Recommended component size: 0.1 m – 12 m

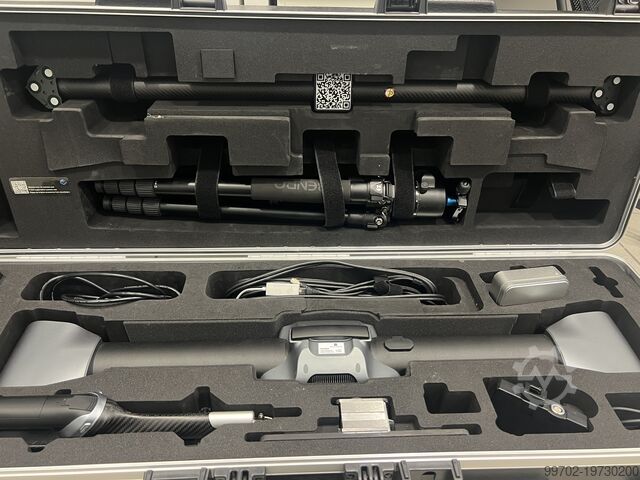

Weight of tracker case (fully loaded): 37 kg

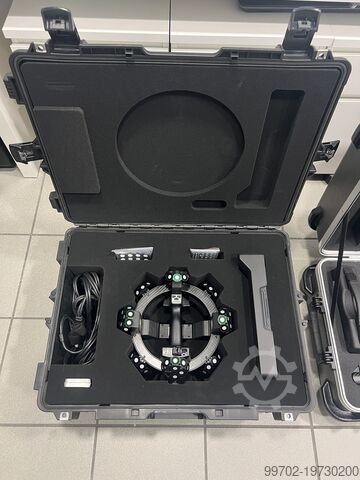

Weight of scanner case (fully loaded): 21 kg
Weight of tracker unit: 6.8 kg
Weight of scanner unit: 1.75 kg

The device can be inspected under power.
