Abricht-thickness Planers combined

SCM / Holzkraft Sofort verfügbar Minimax FS 52 es Tersa digital

Description
Technical data
Scope of delivery
Accessories
Optional equipment
Ideal for demanding craftsmen and carpenters
The particularly long, one-piece planing tables enable easy planing of workpieces.
The work tables are made of gray cast iron, making them robust and permanently flat.
Rear, simultaneously opening planing tables with spring support for quick and convenient adjustments.
Thanks to the permanently mounted dust extraction hood, it is not necessary to disconnect and reconnect the dust extraction hose during adjustments, which saves valuable working time.
The helically toothed steel infeed roller ensures a constant and uniform feed of the wood.
The rubber outfeed roller at the end of the thicknesser ensures a uniform outfeed of the wood.
Material feed with four speeds
Thickness planer table adjustment via handwheel with integrated display for planer height

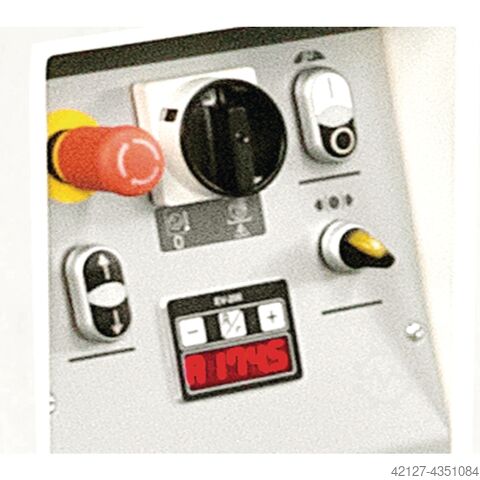

DIGITAL version: with electric thickness planer table height adjustment and digital display
On/off switch in operator position
Powerful industrial motor
The high machine weight ensures maximum precision and smooth operation.
Preparation for long-hole drilling device
Quality Made in Italy

Dimensions and weights
Length approx. 2250 mm
Width/depth approx. 1370 mm
Weight approx. 695 kg
Planer
Total length of the tables 2250 mm
Maximum chip removal 5 mm
Fence length 1200 mm
Fence height 150 mm
Dust extraction connection
Dust extraction nozzle diameter (thicknesser) 1 x 120 mm
Drive power
Main motor 7 kW
Installation information
Space required (length) 2250 mm
Space required (width/depth) 1440 mm
Explanation of space required: The dimensions take into account maximum travel distances or usable lengths.
Thicknesser
Thickness planer table length 850 mm
Thickness planer table width 520 mm
Working height min. 3 mm
Working height max. 240 mm
Working length min. 220 mm
Maximum chip removal 5 mm
Electrical data
Connection voltage 400 V
Phase(s) 3 Ph
Type of current AC
Bljdpfx Aleff Hdps Iep
Mains frequency 50 Hz
Planing cutterhead
Type TERSA
Diameter 120 mm
Number of planing knives 4 pcs
Speed 5000 min¯¹
Planer width max. 520 mm
Feed
Speed 5/8/12/18 m/min
