çapraz mafsal freze makinesi

STEGHERR KSF-mini

Number of milling spindles: 2 pcs.
Stop: 1 yes
Tool: yes

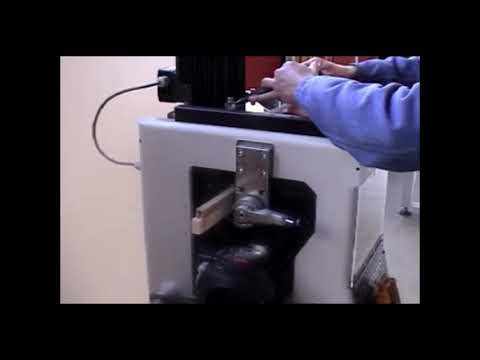

Cross Bar Slot Mortising Machine STEGHERR TYPE KSF-mini
incl. standard fence with 2 sliding stops, without tools

With the KSF-mini, all common cross bar joints encountered in practice can be produced quickly and with precise fit. The high precision is achieved by machining the workpiece on three sides in a single clamping operation.

Tool drive is provided by two three-phase motors; clamping of the workpieces is pneumatic.

The profile cutter is adapted to the width of the bar. The saw blades used for notching can be adjusted to the dimensions of the profile cutter by means of spacer rings. The tilting mechanism is backlash-free.

The machine is designed for a maximum workpiece cross-section of 56 x 46 mm.

Voltage Europe: 400V (+/-10%)/3Ph/50Hz, USA: 440V (+/-10%)/3Ph/60Hz. Other voltages on request.

Operating instructions available in German or English.

Machine table stand: €1,030.00
Foot switch: €870.00
Setting optics: €130.00
Profile cutter in HM-Wepla design, available in Ø 5, 7, 9, 11, 13 mm. Price per piece: €630.00
1 set of replacement carbide indexable inserts for profile cutter (=10 pcs.): €180.00
HM saw blade, price per piece: €160.00
(For a bar width of e.g. 10 mm, 3 saw blades are required)

Adjustment of the machine to customer-supplied tools, price per individual tool: €680.00
Cpedpfeyrtzqex Adtsw

Crate packing (suitable for land transport): €650.00

Shrink wrap on pallet (within Europe only, not suitable for air freight): €340.00

Price ex works, unpacked, uninsured; for deliveries within Germany, VAT at the rate valid at the time of delivery will be added.

(All technical data according to manufacturer's information, subject to change without notice!)
