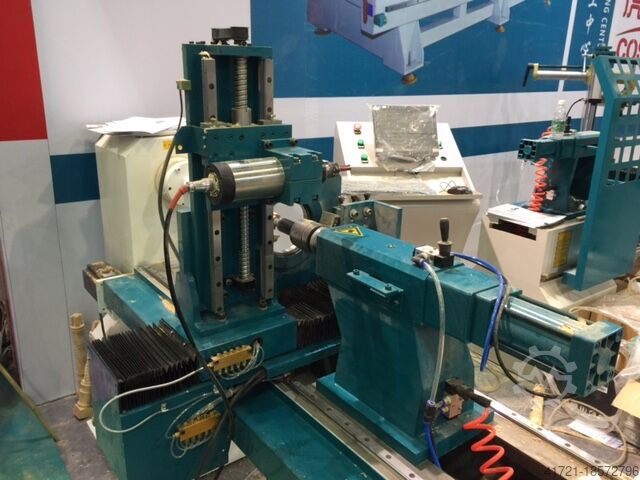

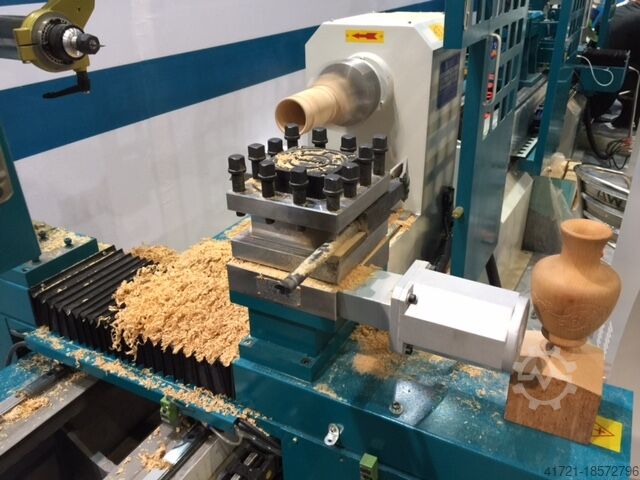

CNC kopyalama tornası

WINTER CKD 1500-400 ATC

Dimensions (L x W x H): 2700 x 1400 x 1650 mm
Weight: 1800 kg
Total power requirement: 8 kW
CNC Copy Lathe Rotary + Flat CKD-1500 400 ATC

- Center distance: 1500 mm
- Center height: 400 mm
- Max. machining diameter: Ø 400 mm
- Spindle motor power: 5.5 kW
- Stepper motor: 2.2 kW
- Engraving spindle: 580 W
- Voltage: 400 V / 50 Hz
- Spindle speed: 0 - 3500 rpm
- Number of controlled axes: 3
- Automatic tool changer, 3 positions
- Tool change time: at 90° - 2.0 seconds; at 180° - 2.5 seconds; at 270° - 3.0 seconds

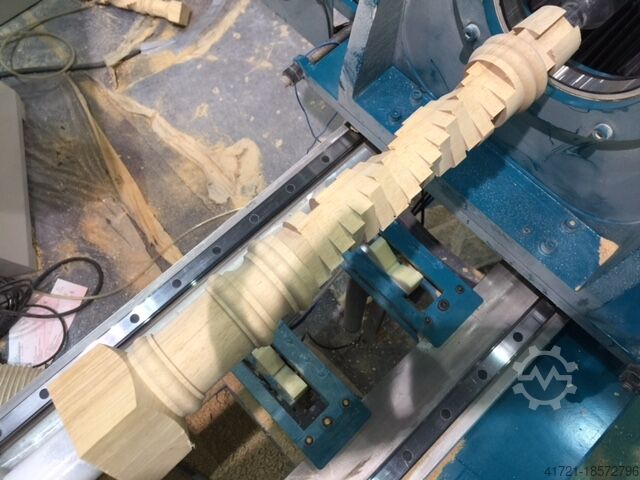

- Working speed: 3500 mm/min (Example: 5 cm x 90 cm stair baluster, 1.2 min / piece)
- Guides: Linear guides and ballscrew
- Controller: WEIHONG PM 53B5
- Pneumatic workpiece clamping
- Milling spindle for flat engraving
- Compressed air connection: 6 bar
Kedpfxjv A Ht Re Ahwofa
- 12" color LCD display with keyboard
- Including PC
- Including CAD software NC Studio and CAM software Cosen
- Heavy machine base made of cast steel
- Includes 2 pieces V-form steel
- Includes 10 engraving knives
- Includes 1 twisting knife
- Includes 1 grooving knife
- Includes 4-jaw chuck 160 mm
- Includes 1 inside hole tool
- Includes 1 cutting tool
- Dimensions (L=2700, W=1400, H=1650 mm)
- Net weight: 1800 kg
