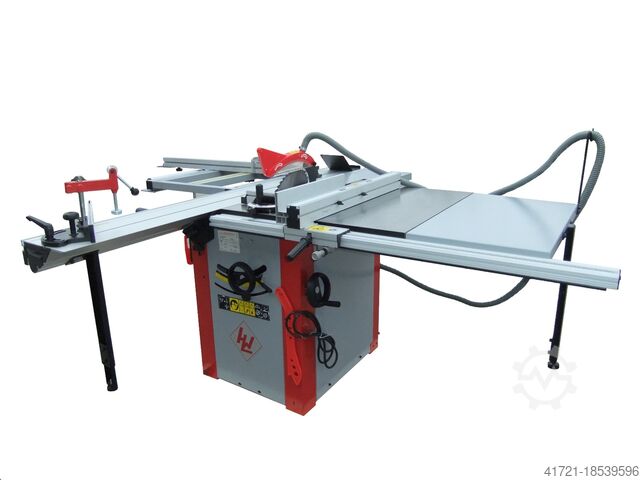

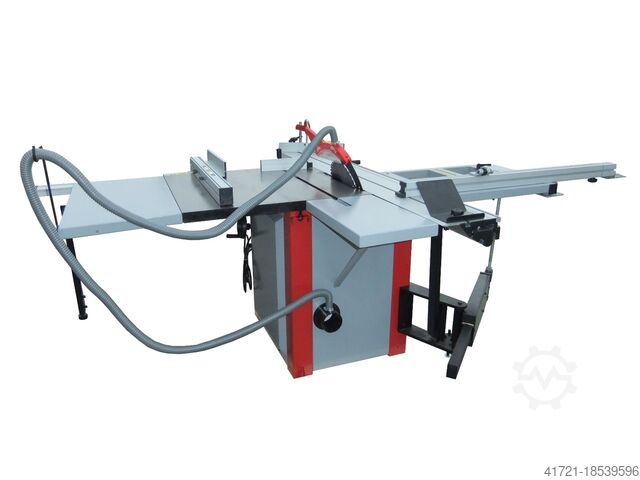

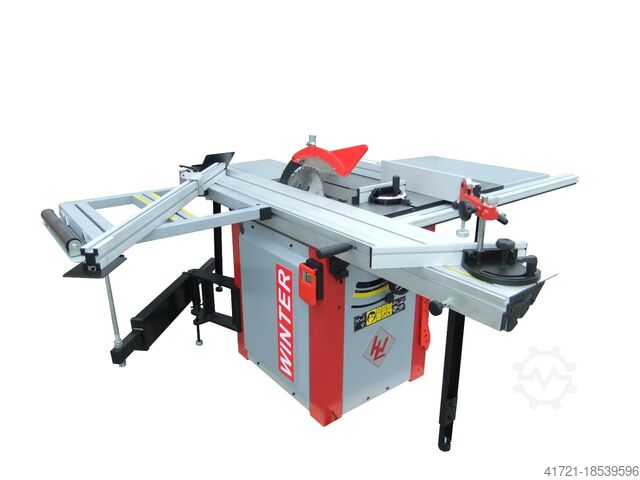

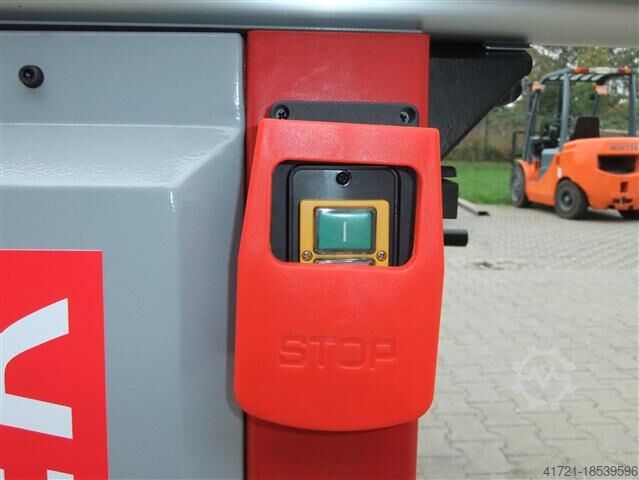

Kayar masa testeresi

WINTER FS315-2000

Dimensions (L x W x H): 2000 x 2800 x 1100 mm
Weight: 310 kg
Total power requirement: 3.8 kW
Panel Saw FS315-2000

- Table size: 800 x 380 mm
- Sliding table: 2000 x 270 mm
- Edging length: 2000 mm
- Max. saw blade diameter: 315 x 30 mm
- Max. cutting height 90° / 45°: 100 / 80 mm
- Cutting width at rip fence: 1250 mm
- Table height: 850 mm
- Table extension: 500 x 310 mm
- Table width extension: 800 x 880 mm

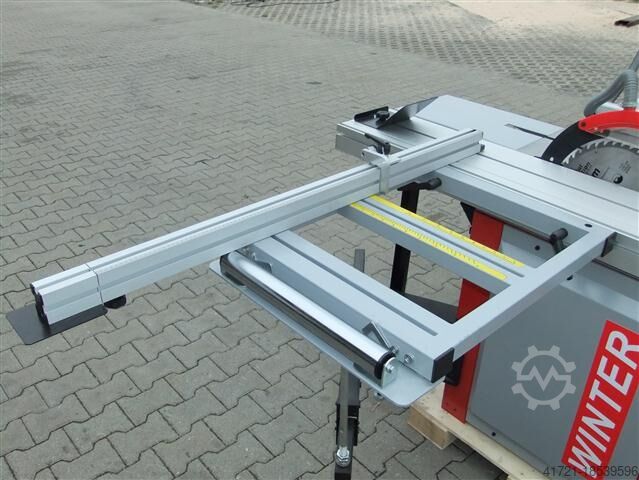

- Outrigger table with roller: 750 x 580 mm
- Main saw blade speed: 4500 rpm
- Scoring saw blade speed: 8500 rpm
- Scoring saw blade: 2-100 x 20 mm
- Extraction port diameter: 100 mm
- Motor output S1 100%: 3.8 kW
- Voltage: 400 V
- Machine dimensions (L x W x H): 2000 x 2800 x 1100 mm
Lodpfxjvz Hcpo Ahwjhr
- Weight: 310 kg

Complete with:
- Aluminum format sliding carriage with hardened guide rails
- Sturdy outrigger table for processing large and heavy panels
- Supplied as standard with table extension and width extension

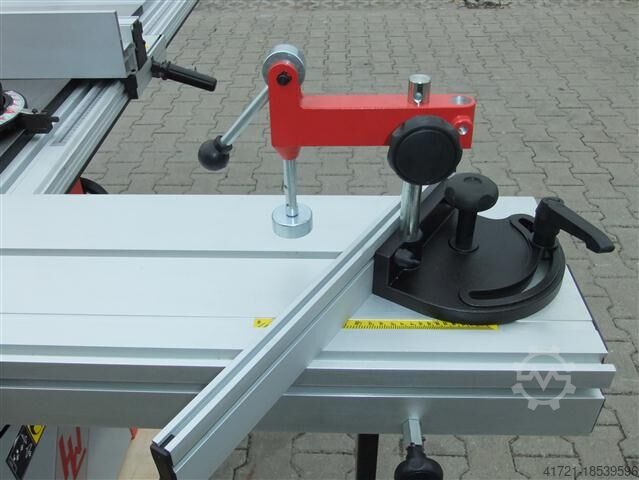

- Mitre fence and hold-down, adjustable along the entire carriage length
- Rigid saw unit guarantees vibration-free and precise operation
- Machine body made from a torsion-resistant steel and cast iron combination
- Extendable telescopic fence (up to 2260 mm), mountable at the front and rear of the outrigger table
- Enhanced operating comfort through solid rip fence with magnifier

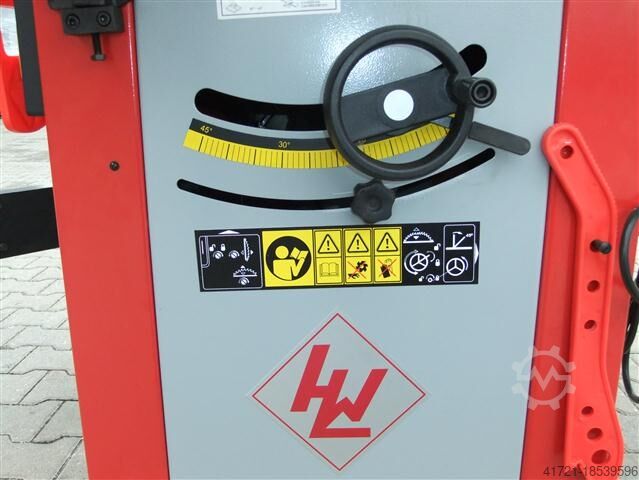

- Blade tilt adjustment up to 45° via scale using a handwheel
- Powerful drive motor ensures optimal cutting performance even in continuous operation
- Large machine table made of cast iron, precision-machined and ground

Scope of delivery:
- TCT saw blade 315 x 3.0 x 30 mm / Z 40
- 2-piece scoring saw blade 2-100 x 20 mm / Z 24
- Saw blade guard with dust extraction connection
- Connecting hose with Y-piece

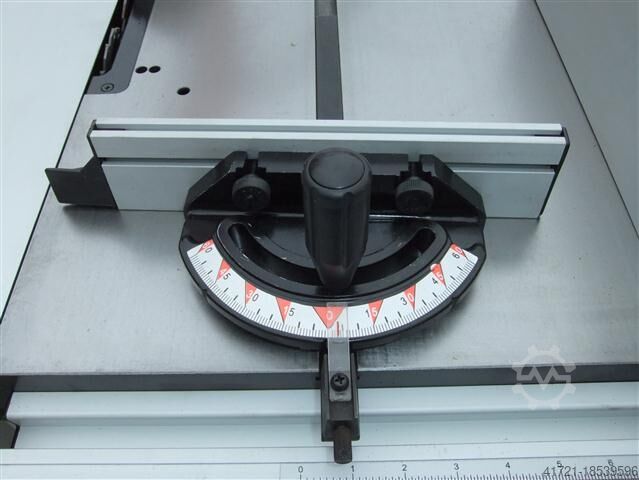

- Mitre fence with eccentric clamp
- Mitre fence

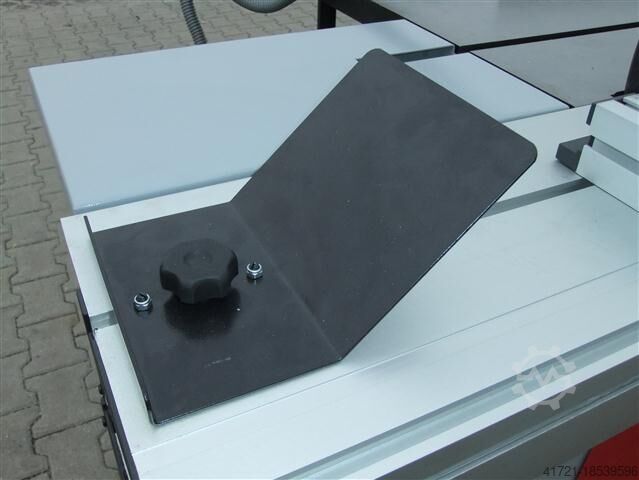

- Edging shoe
- Table extension
- Table width extension
- Extendable telescopic fence
- Flip stop with fine adjustment
- Outrigger table with roller
- Push stick
- Operating tools
