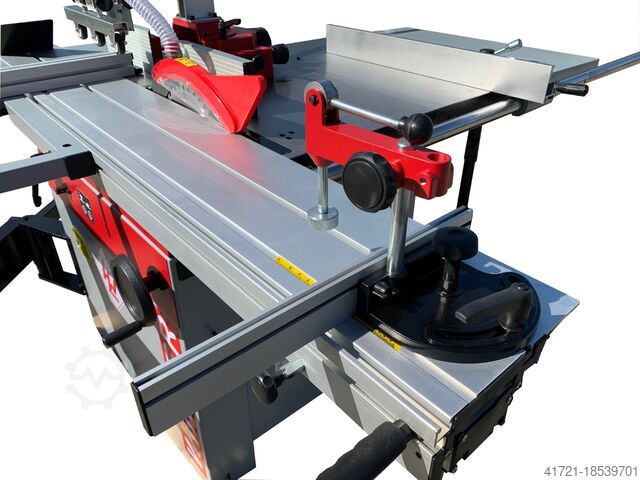

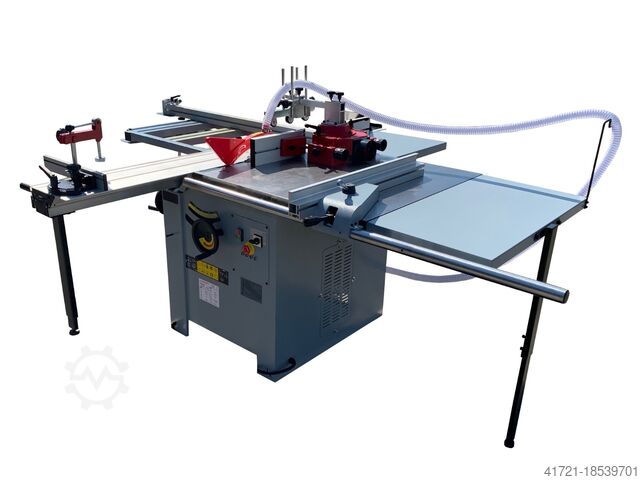

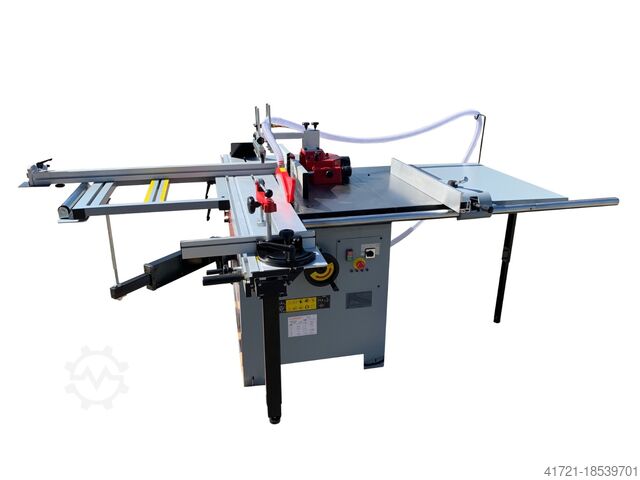

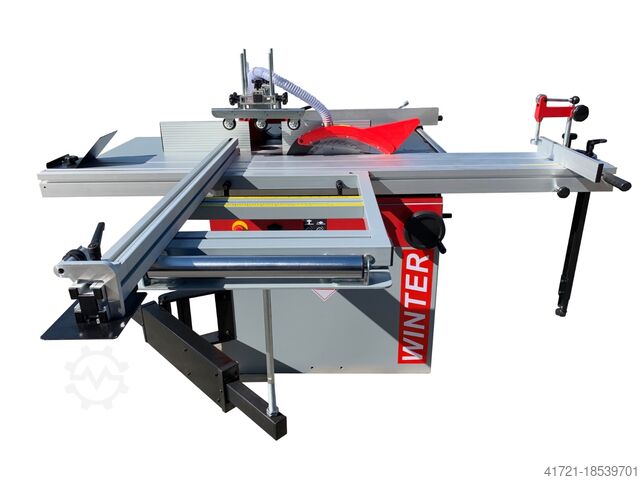

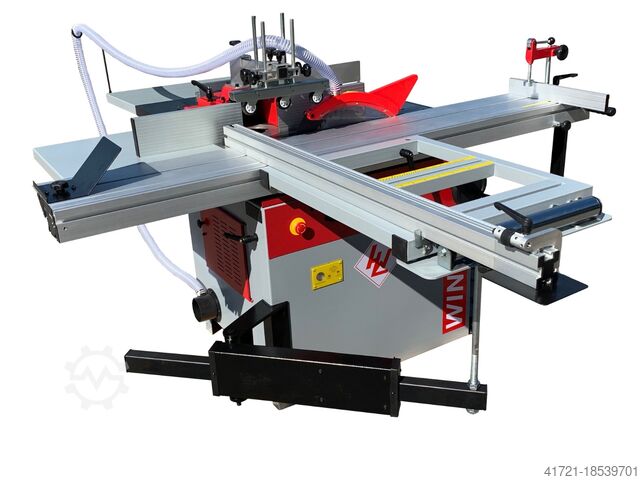

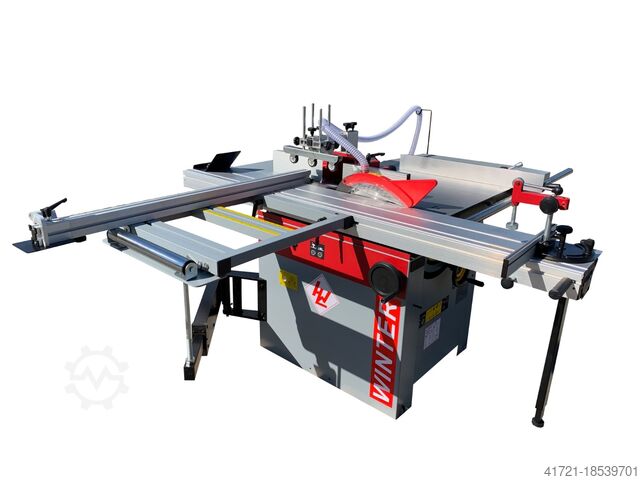

Kombine dairesel testere ve freze makinesi

WINTER KSF-315-2000

Dimensions (length/width/height): 2000 x 3010 x 1250 mm
Weight: 400 kg
Total power requirement: 4 kW
Combined circular saw and spindle moulder KSF-315-2000

Saw:
- Table size: 860 x 450 mm
- Table height: 850 mm
- Table extension: 500 x 310 mm
- Table widening: 800 x 880 mm
- Outrigger table with roller: 750 x 580 mm
- Sliding table: 2000 x 270 mm
- Cutting length: 2000 mm
- Max. saw blade diameter: 315 x 30 mm
- Max. cutting height 90°/45°: 100 / 80 mm
- Cutting width at rip fence: 1270 mm
- Main saw blade speed: 4500 rpm
- Scoring blade speed: 8500 rpm
- Scoring blade diameter: 2–100 x 20 mm
- Extraction port diameter: 100 mm
- Motor power S1 100%: 3.8 kW

Spindle moulder:
- Spindle diameter: 30 mm
- Height adjustment: 100 mm
- Table openings Ø 80 / 100 / 140 / 190 mm
- Clamping length of spindle: 100 mm
- Max. tool diameter:
- profiling: 180 mm
- tenoning: 200 mm
- Spindle speeds: 1800 / 3000 / 6000 / 9000 rpm
- Motor power S1 100%: 2.8 kW
- Voltage: 400 V

- Dimensions: W=2000 mm, D=3010 mm, H=1250 mm
- Total weight: 400 kg

Complete with:
- Right table extension and fence bar can be folded down to save space
- Robust and smooth-running rip fence with quick lock
- Tilting and height-adjustable saw blade with scoring unit
- Precision cast-iron table with table extension at the rear and right, including support leg
- Extendable fence with flip stop
- Roller on cross table eases workpiece positioning
- Cutting width right of saw blade up to 1330 mm
- Equipped with high-quality two-piece scoring blade
- Premium spindle moulder fence with hold-down system and fine adjustment
- 4 spindle speeds as standard
Nedsvz Hgzjpfx Ahwjdf
- Electronic speed display via LED
- Max. cutter diameter 200 mm
- Large, removable handwheel for spindle adjustment

Scope of delivery:
- 2-piece carbide scoring blade
- Carbide saw blade 315 x 30 mm, 40 teeth
- Mitre fence
