Kombine dairesel testere ve freze makinesi

WINTER KSF-315-2540

Dimensions (L/W/H) 0x0x0 mm
Weight: 850 kg
Total power requirement: 5.5 kW

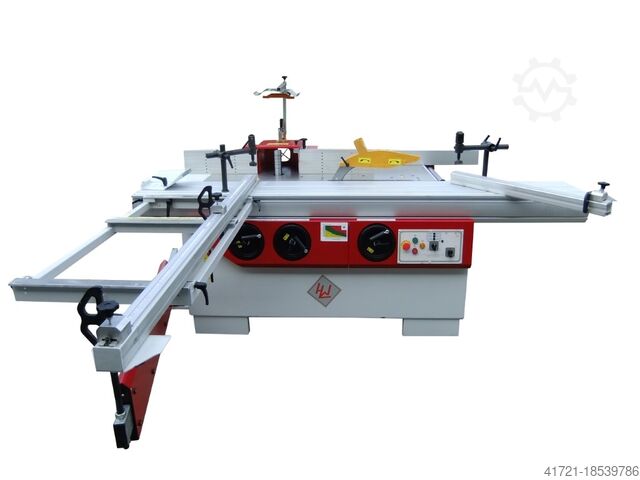

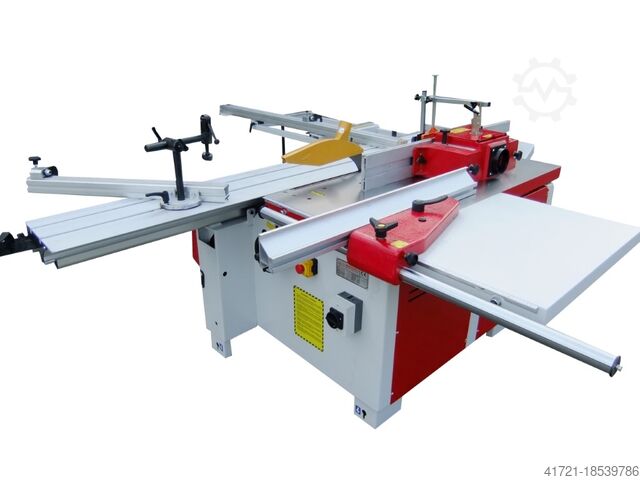

Combined Circular Saw and Spindle Moulder KSF-315-2540

Circular Saw:
- Cutting length / Edging length: 2400 mm
- Max. saw blade diameter: 315 mm
- Motor power: 4.0 kW
- Scoring unit: 0.75 kW
- Speed: 4000 rpm
- Cutting height 90°/45°: 103 / 72 mm
- Scoring blade diameter: 120 mm
- Scoring blade speed: 8000 rpm
- Max. cutting width at rip fence: 1400 mm
- Table height: 860 mm
- Worktable: 1450 x 650 mm
- Table extension: 800 x 880 mm
- Table lengthening: 400 x 450 mm

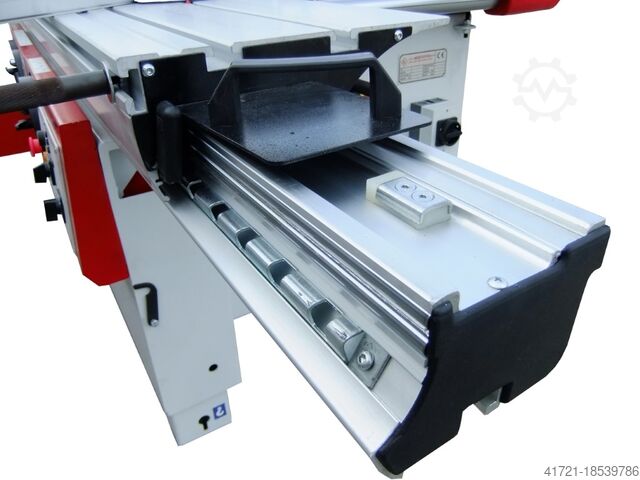

- Sliding table: 2540 x 350 mm
- Outrigger table: 640 x 1200 mm
- Length/mitre fence retracted/extended: 1900 mm/3500 mm

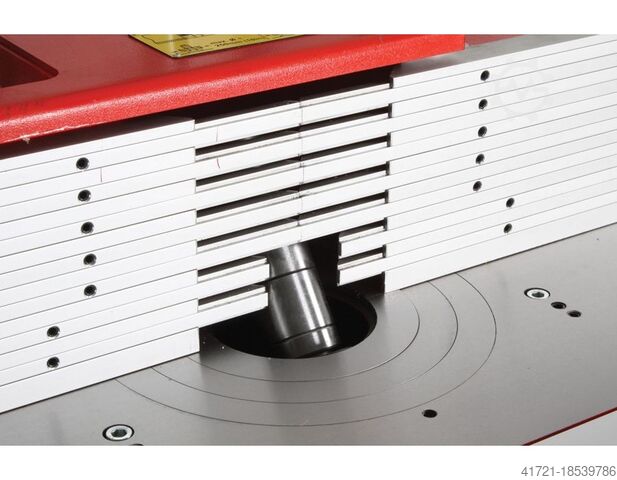

Spindle Moulder:
- Spindle diameter: 30 mm
- Interchangeable spindle MK 4
- Motor power: 5.5 kW
- Speed: 3000/4000/5000/6000/8000/10000 rpm
- Spindle stroke: 175 mm
- Spindle tilting: 90° to 45°
- Max. clamping height: 125 mm
- Table opening: 270 mm
- Max. retractable tool diameter: 260 mm
- Max. tool diameter above table: 260 mm
- Fence with ALU integral jaws: 350 x 155 mm
- Extraction ports: 3 x 120 mm
- Voltage: 400 V, 50 Hz
- Packing dimensions: L=1170, W=2000, H=1450 mm; L=3290, W=325, H=450 mm
- Weight: 850 kg

INCLUDED:

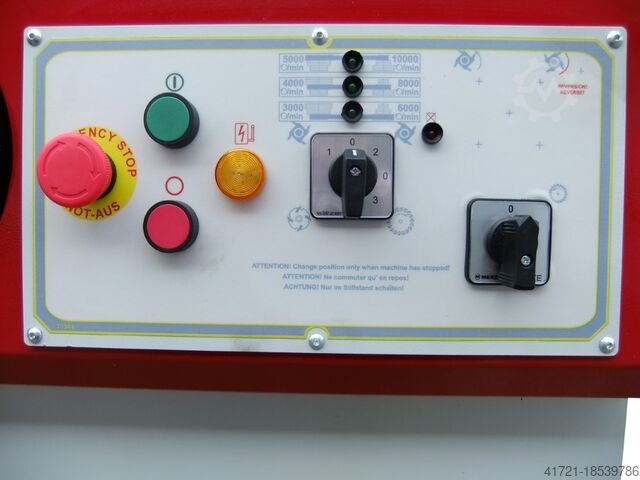

- Central control panel on the front
- Rip fence with fine adjustment
- Interchangeable spindle MK 4
Gedpfx Aovz Hkmjdueil
- Scoring unit with separate motor
- Integral fence jaws

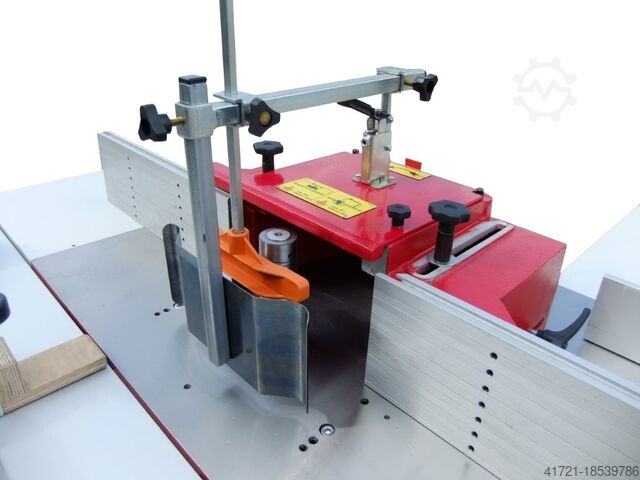

- Hold-down device
- Edging shoe
