CNC gravür ve freze makinesi

WINTER ROUTERMAX 1118 ROTARY DUO SET

Dimensions (L/W/H): 2500 x 2100 x 1800 mm
Weight: 1700 kg
Total power requirement: 7.5 kW
CNC Engraving and Milling Machine ROUTERMAX 1118 ROTARY DUO SET

- Working area X-axis: 1100 mm
- Working area Y-axis: 1800 mm
- Working area Z-axis: 240 mm

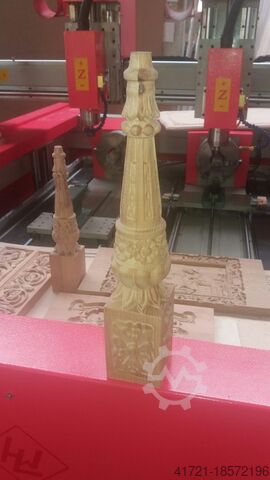

- 2 rotary supports with 3-jaw chucks included
- Maximum workpiece diameter: 400 mm
- Maximum workpiece length: 1000 mm
- Maximum workpiece weight: 56 kg
- Positioning accuracy: ±0.04/300 mm
Iodpfjv A E Sfjx Ag Njal
- Robust height-adjustable worktable (700 mm), load capacity up to 1500 kg
- Maximum traverse speed: 5500 mm/min
- Maximum engraving speed: 15000 mm/min
- Milling spindle: 2 x 2.2 kW motors, air-cooled
- Toolholder collet diameter: 6 and 8 mm
- Spindle speed: variable RPM
- Drive motors: stepper motors
- Voltage: AC 230 V / 50 Hz
- Linear guide on X, Y, Z axes: round guides
- Drive system (X & Y axes): rack and pinion
- Drive system (Z axis): ball screw
- Command language: G-code
- Controller: MACH3 4-axis controller

SET VERSION includes:
- MACH3 4-axis controller incl. PC and monitor
- Rhinoceros 5.0 (design software license)
- RhinoCAM-MILL Expert 2016 2/2.5/3/4-axis CAM system (plug-in for Rhino 5.0)

- Ambient temperature: 0–45°C, relative humidity: 30–75%
- Dimensions: L=2500 mm, W=2100 mm, H=1800 mm
- Weight: 1700 kg

Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
