ERA GmbH

Durumu: kullanılmış, Üretim yılı: 1998, Torna çapı / mm Torna uzunluğu / mm Kontrol / Teknik veriler Çalışma alanı Maks. salınım çapı: 540 mm Maks. torna çapı: 540 mm Arabası üzerinde maks. torna çapı: 520 mm Maks. torna uzunluğu: 1.029 mm Ana mil Devir aralığı: 35-5.000 dev/dak Ana tahrik gücü: 22 kW Maks. tork: 349 Nm Mil burnu: A2 - 6 inç Mil delik çapı: 61 mm Rsdpfx Acsyyqtho Eor Mil konumlandırma C-eksen: 0°-360°/0,001 ° Takım taret Takım taret tipi: Tek milli taret Tahrikli takımlar Devir aralığı: 15-6.000 dev/dak Tahrik gücü: 7,5 kW Maks. tork: 103 Nm Takım magazini Takım istasyon sayısı: 40 Maks. takım ağırlığı: 7 kg Makine ağırlığı: yaklaşık 5.700 kg Teslimata kapsamlı aksesuar seti dahildir – fotoğraflara bakınız 03.09.2012 tarihli veri yedeği (backup) mevcut

Durumu: işlem için hazır (kullanılmış), Mori Seiki Duraturn 2550 Hâlâ üretimde 2007 model Ağırlık: 4250 kg Motor mili: 19,5 kW 3000 d/dak Torna boyu: 436 mm Torna çapı: 340 mm Rodpeyyqhrsfx Ac Esr Ebatlar: 2375 x 1793 x 1832 mm Ayrıca DMU 50 V, DMU 70 ve CTX 320 satılıktır.

Durumu: yeni gibi (sergi parçası), Üretim yılı: 2023, • Hwacheon Cutex 180 AL SMC, üretim yılı 2023, yeni makine • Kontrol ünitesi: Fanuc 0i-TF Plus LCD, Manual Guide I ile • Hızlı travers X / Z / B: 36 / 36 / 36 m/dak. • Maks. tornalama çapı: Ø 300 mm • Maks. tornalama uzunluğu: 478,5 mm • Aynalar: • 6” / Ø 150 mm, 5” / Ø 120 mm • Maks. devir: • Ana iş mili 6.000 dev/dak. • Karşı iş mili 6.000 dev/dak. • Çubuk geçişi: Ø 51 / 32 mm • Ana/karşı iş mili motor gücü: • 11 / 15 kW, 3,7 / 5,5 kW • 12 istasyonlu tahrikli takım tareti, tüm istasyonlar tahrikli • 5.000 dev/dak., 3,7 / 5,5 kW • Güçlü, tamamen eğimli, stabilize edilmiş Meehanite döküm gövde, tüm eksenlerde yüksek hassasiyetli lineer kızaklar • Yüksek performanslı iş milleri, spindle burun A2-5 / karşı A2-4 • Otomatik takım ölçüm kolu • Parça yakalayıcı • Tam kapalı koruma • Hidrolik ünite • Taşınabilir tanklı ve 6 bar pompaya sahip soğutma sistemi • Ergonomik, döner operatör paneli • Elektronik el çarkı • Su geçirmez LED aydınlatmalı çalışma alanı Rsdjyypvbepfx Ac Ejr • Trafo

Durumu: yeni gibi (sergi parçası), Üretim yılı: 2023, • Hwacheon Cutex 180 AL YSMC, year of manufacture 2023, new machine • Control: Fanuc 0i-TF Plus LCD with Manual Guide I • Rapid traverse X / Z / B axes: • 36 / 36 / 36 m/min • Y-axis travel: + / - 55mm Rodpfjyypuwex Ac Ejr • Max. turning diameter: Ø 300mm • Max. turning length: 478.5mm • Chuck size: • 6” / Ø 150mm, 5” / Ø 120mm • Max. spindle speed: • Main spindle 6,000 rpm • Sub spindle 6,000 rpm • Bar capacity: Ø 51 / 32mm • Main / sub spindle motor power: • 11 / 15 kW, 3.7 / 5.5 kW • 12-position tool turret, all stations driven • 5,000 rpm, 3.7 / 5.5 kW • Rigid, full slant bed made of stabilized Meehanite cast iron, with precision linear guides on all axes • High-performance spindles with spindle nose A2-5 / Sub A2-4 • Automatic tool measurement arm • Parts catcher • Full enclosure • Hydraulic system • Coolant unit with extendable tank, 6 bar pump • Ergonomically designed, swiveling control panel • Electronic handwheel • Waterproof LED work area lighting • Transformer

Durumu: mükemmel (kullanılmış), Üretim yılı: 2019, Fonksiyonellik: tamamen fonksiyonel, Technical Details Swing Diameter: 820 mm Turning Length: 6000 mm Control System: Siemens Si 840 D sl Total Power Requirement: 155 kW Machine Weight approx.: 65 t Space Requirement approx.: 16,350 x 3,700 x 3,850 mm Additional Information Purchase Price: EUR 1,550,000 Operating Data as of Feb. 2025 Operating Hours: 38,601 h Main Spindle: 1,958 h Milling Spindle: 1,760 h CNC Control: SI 840D sl Working Range: 6,000 mm Working Height: 1,390 mm Swing Diameter over Bed Slide/Bed: 820 mm X-axis Travel: +850 to -25 mm Z-axis Travel: 6,820 mm C-Axis, Smallest Increment: +/-0.001° Workpiece Spindle Spindle Head according to DIN55026 A15 Through Bore: 160 mm Front Bearing Diameter: 240 mm 2-stage Gearbox, Infinitely Programmable Drive Power at 100/60% Duty Cycle: 78/87 kW Number of Speed Ranges: 2 Speed Range I: 10–501 rpm Speed Range II: 10–1,750 rpm Torque I, 60% Duty Cycle: 8,000 Nm Torque II, 60% Duty Cycle: 2,308 Nm C-Axis Holding Torque with Backlash-Free Rotary Spindle Brake: 3,000 Nm Speed: 0–50 rpm Max. Torque (100/60% Duty Cycle): 3,700/4,430 Nm Steady Rest Clamping Range: 70–425 mm Turning, Drilling, Milling Head Front Bearing Diameter: 110 mm Interface: HSK100/C8 Tool Magazine Slots: 2 Magazines, Baluff Chip System Max Tool Diameter (each/all 2 positions): 125/200 mm Max Tool Length: 600 mm Tool Weight: 25 kg Tailstock Quill Diameter: 180 mm Stroke: 170 mm Internal Taper: MK6 Manually Adjustable Axial Force: 5–30 kN Quill Tip Height Adjustment: +/-0.15 mm Other Features: ACS 3-ARTIS Collision Monitoring Sensor Chip Conveyor Coolant System with 980 l Tank Rsdpfsyymvljx Ac Eer And more

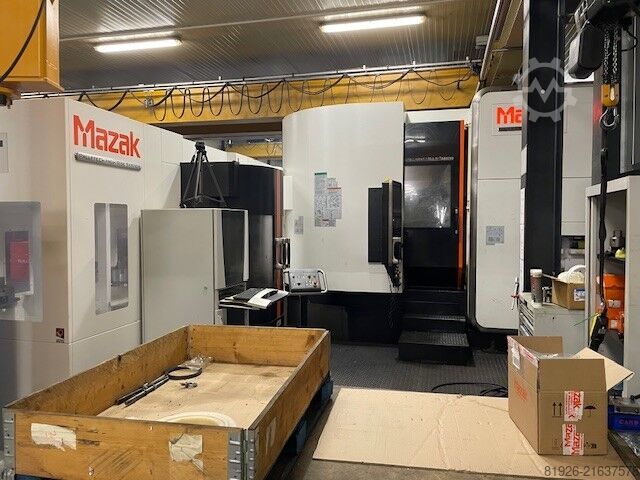

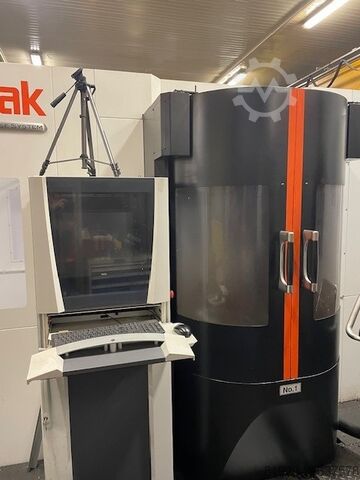

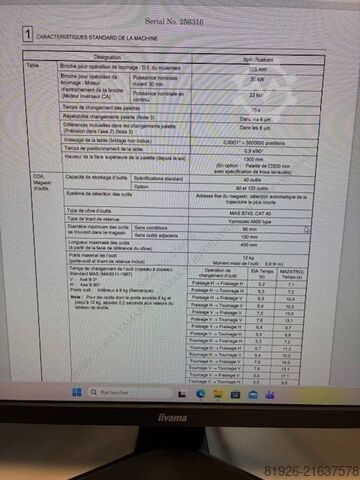

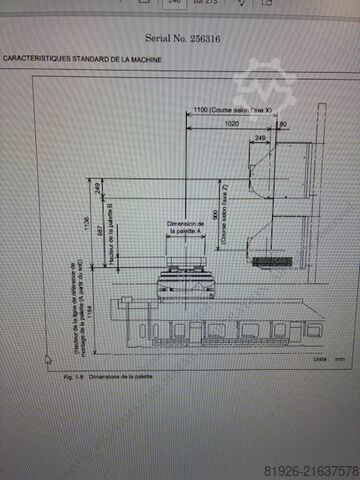

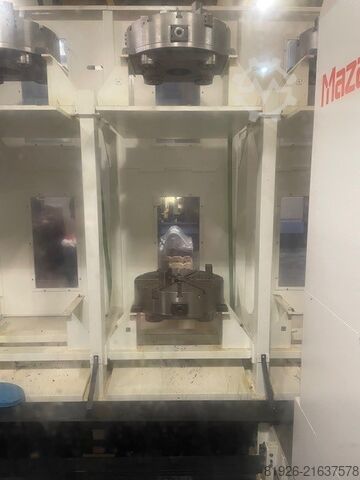

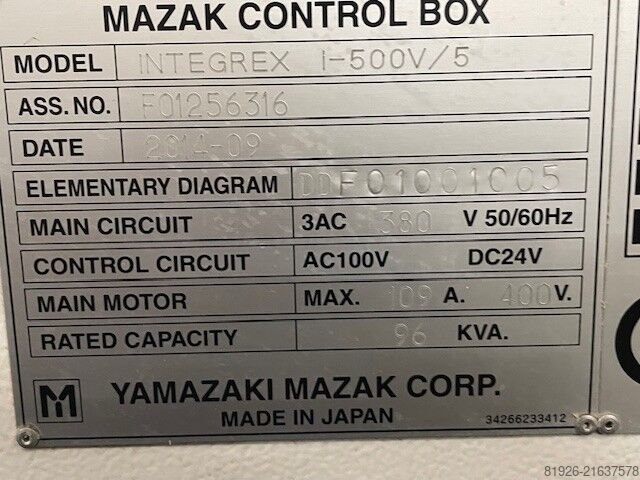

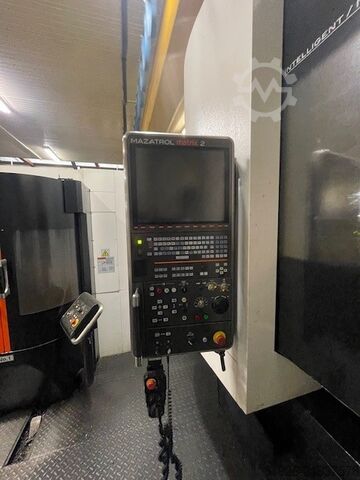

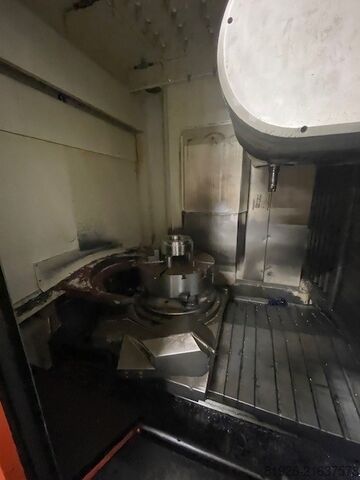

Durumu: mükemmel (kullanılmış), Üretim yılı: 2014, çalışma saatleri: 21.200 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 256316, torna boyu: 1.000 mm, torna çapı: 730 mm, mil motoru gücü: 18.500 W, mil hızı (dk.): 35 dev/dak, maksimum mil hızı: 12.000 dev/dak, X ekseni hareket mesafesi: 1.100 mm, Y ekseni hareket mesafesi: 800 mm, Z ekseni hareket mesafesi: 900 mm, hızlı travers X ekseni: 50.000 m/dak, hızlı tablası Y ekseni: 50.000 m/dak, hızlı ilerleme Z ekseni: 50.000 m/dak, dönüş hızı (maks.): 1.000 dev/dak, dönme hızı (dk.): 35 dev/dak, giriş akımı türü: trifaze, tork: 160 Nm, iş parçası ağırlığı (maks.): 680 kg, mili burnu: Cône 7/24, N°40, masa yükü: 880 kg, takım magazinindeki yuva sayısı: 120, palet değiştirici: otomatik, Donanım: CE işareti, dokümantasyon / kılavuz, talaş konveyörü, We offer this Mazak INTEGREX i500V CNC turning and milling machining center, in very good condition, year of manufacture 2014. Rsdpfx Acjyymrmo Esr Manufacturer: Mazak Model: INTEGREX i500V Year of manufacture: 2014 Condition: very good If you have any questions or require further information, please feel free to send us a message or call us.

Durumu: iyi (kullanılmış), Üretim yılı: 2007, Fonksiyonellik: tamamen fonksiyonel, CNC turning and milling center with Y-axis, 2 turrets, sub-spindle, and bar feeder. Over the past 5 years, more than €44,000 have been invested in necessary repairs and maintenance via DMG MORI (main spindle S4 replacement, ball screws, etc.). Technical Details Turning diameter: 100 mm Turning length: 320 / 345 mm Control: Siemens 840 D Swing diameter: 145 mm Spindle distance: 580 mm Slide I: - Slide I - Cross travel (X1): 220 mm - Slide I - Longitudinal travel (Z1): 320 mm - Y-axis: +/- 30 mm - Rapid traverse (X/Y/Z): 30/15/30 m/min Slide II: - Slide II - Cross travel (X2): 120 mm Rodpoyymhzofx Ac Eer - Slide II - Longitudinal travel (Z2): 345 mm - Rapid traverse (X/Z): 30 m/min Sub-spindle: - Sub-spindle travel (Z3): 380 mm - Cross slide travel (X3): 145 mm - Bar diameter max.: 36 mm - Rapid traverse (X/Z): 20/30 m/min - Drive power (40/100% DC): 26/21 kW - Spindle speeds: 40 - 7,200 rpm - Total power requirement: 42 kVA - Machine weight approx.: 5.3 t Equipment: - CNC control SIEMENS 840 D powerline - Number of controlled axes: 9 - 2 x C-axis - Y-axis in the upper turret - Pick-off unit with gripper - 2 SAUTER turrets with 12 driven tool stations, VDI 25 - Tool drive with a speed range of 30 to 6,000 rpm - Coolant system with paper band filter - Chip conveyor - Collet chucks on main and sub-spindle - Bar feeder magazine IEMCA BOSS 332 E 32 L, max. bar length 3,180 mm

Durumu: kullanılmış, Üretim yılı: 1999, Fonksiyonellik: tamamen fonksiyonel, torna çapı: 340 mm, maksimum mil hızı: 6.000 dev/dak, X ekseni hareket mesafesi: 160 mm, Z ekseni hareket mesafesi: 455 mm, dönüş hızı (maks.): 6.000 dev/dak, besleme uzunluğu X ekseni: 160 mm, Z ekseni ilerleme mesafesi: 455 mm, toplam ağırlık: 3.600 kg, We offer this used Mazak Super Quick Turn 10M CNC turning and milling centre, year of manufacture 1999. MAZAK CNC turning centre with C-axis and live tooling Model: SQT10M Year: 1999 Control: MAZATROL FUSION 640T XZ travel: 160x455 mm Distance between centres: 500 mm Turning diameter: 340 mm Spindle speed: 6000 rpm Toolchanger: 12 ATC Machine weight: 3600 kg With tailstock With tool eye With parts catcher Rodpfx Aceyyl Ers Esr If you have any questions or require further information, please feel free to send us a message or call us.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2006, Fonksiyonellik: tamamen fonksiyonel, Technical Details Turning diameter: 660/275 mm Turning length: 1498 mm Control unit: Fanuc/Mori Seiki MSX 701 Total power requirement: 90 kVA Machine weight approx.: 26.6 t Space requirements approx.: 5301 x 2997 x 2788 mm Additional Information 9-axis CNC turning and milling center * CNC control unit Fanuc MSX-701 * Upper milling spindle (B-axis) as a fully functioning 4th axis, positioning accuracy 0.0001° * 40-position tool magazine * 10-position lower turret, all positions driven * 2 x 3-jaw quick-change chucks KNCS-N 315/91 * KNOLL high-pressure coolant system, adjustable pressure 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter unit * Chip conveyor * Blow-off system for main spindle chuck (controlled via M-function) * Blow-off system for tool edge (controlled via M-function) * Coolant gun incl. accessories * Oil mist extraction system * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Island and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Program memory expansion to 8 MB * Program restart * 3-stage signal lamp * Memory card 512MB (CF card) Swing diameter over cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. workpiece length: 1498 mm Max. bar capacity: 90 mm Travel Paths: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120°, full B-axis indexed at 1° and clamped at 0.0001° X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (sub-spindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and sub-spindle: Spindle speeds steplessly (spindle 1 + 2): 30-3000 rpm C-axis (spindle 1 + 2): 0.001° Main spindle motor: 22/18.5 kW Sub-spindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc Turret: Number of tool stations: 10 Rotational speed of driven tools: 6000 rpm Drive power: 5.5/3.7 kW Milling Spindle Head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool Changer: 40 positions Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Redpjyyk R Tofx Ac Eor Total power requirement: 90 kVA Overall dimensions (L x W x H): 5301 x 2997 x 2788 mm Machine weight: 26.6 t Accessories: Measuring arm (pictured) for tool measurement in the machine Tool holder + box, reducing sleeves, driven tools Chuck jaw set Collet set

Durumu: iyi (kullanılmış), Üretim yılı: 2014, Fonksiyonellik: tamamen fonksiyonel, Technical details Turning diameter: 356 mm Turning length: 510 mm Control system: M 730 BM Travel path - X: 260 mm Travel path - Y: -50 / +50 mm Travel path - Z: 590 mm Sub spindle travel (B): 624 mm Bar capacity: 65 mm Main spindle speed: 5,000 rpm Gear stages: 2 Drive power: 15 / 11 kW Sub spindle speed range: 6,000 rpm Drive power (sub spindle): 11 / 7.5 kW Rapid traverse (X, Y, Z, B): 30/10/30/30 m/min Total power requirement: kVA Machine weight approx.: 6.6 t Additional information * CNC control: Mitsubishi M 730 BM * Main spindle with KITAGAWA N-08 3-jaw power chuck, diameter 210 mm * Sub spindle with HAINBUCH B-TOP 165-43 3-jaw power chuck * 12-position turret, driven tools, max. 10,000 rpm, power 5.5/3.7 kW * Y-axis * C-axis Rjdpfsyycggjx Ac Ejr * High-/low-pressure chucking system for main and sub spindles * High-pressure pump: MABEO filter unit with 1.5 MPa * Coolant shower at the chuck for main and sub spindles * Coolant shower for the machine bed cover * Oil mist separator * Hinged belt chip conveyor * Renishaw workpiece measuring system with optical signal transmission (sub spindle) * Ball screw cooling on X-axis * Gantry loader, left side, 14-station magazine, 20-pallet workpiece storage, double gripper belt

Durumu: mükemmel (kullanılmış), Üretim yılı: 2020, Fonksiyonellik: tamamen fonksiyonel, Technical Details Turning diameter: 760 mm Turning length: 1540 mm Control: Fanuc 31i-B Machine dimensions: 5500 x 2700 x 3110 mm Chip conveyor: 6900 x 2400 mm Total power requirement: 94.42 kW Rjdpeyycd Eefx Ac Ejr Machine weight approx.: 15.5 t Additional Information Turning center with infinitely adjustable swiveling milling head and Y-axis, motorized lower turret and sub-spindle. Condition: Very well maintained, machine comes from a business closure. Operating hours: Control ON: 13,127 hours Run time: 3,833 hours Machining time: 2,835 hours The upper head is supplied from a tool magazine and can turn or mill at various angles. Even very complex components can be fully machined without repositioning. CNC control Fanuc 31i-B Swing over bed: 1000 mm Maximum turning diameter: 760 mm Maximum turning length: 1540 mm Maximum bar diameter (manual/continuous): 76/76 mm Y-axis travel: 230 mm (±115 mm) Chuck (sub-spindle) ASA mount: A2-8 Spindle speed: 4000 rpm AC motor power (cont./30 min.): 22/26 kW Turning/milling head B-axis rotation / indexing: 240° (±120°) Tool holder: Capto C6 Spindle speed: 12,000 rpm AC motor power 30 min.: 15/18.5 kW Number of tools: 40 (opt. 80) Tool turret Number of driven tools: 12 Driven tool power: 7.8 kW/30 min.

Durumu: iyi (kullanılmış), Üretim yılı: 2011, Torna çapı 376 mm, torna uzunluğu 760 mm, çubuk kapasitesi 76 mm, Y ekseni -/+ 52,5 mm, C ekseni 0,001 derece, 12 istasyonlu taret, 22 kW motor, ana mil 4000 dev/dak, freze mili 5000 dev/dak, Fanuc I Serisi, 3 ayaklı aynalar, talaş konveyörü, takım ölçüm cihazı. Rodpjyyakvjfx Ac Esr

Durumu: mükemmel (kullanılmış), Üretim yılı: 2007, torna boyu: 744 mm, torna çapı: 430 mm, iş mili deliği: 65 mm, Control system: CNC path control with 10.4” TFT color display Siemens Sinumerik 840 D powerline TECHNICAL DATA Swing diameter *over bed: 600 mm *over cross slide: 500 mm Distance between main spindle and sub-spindle: 975 mm Max. turning diameter: 430 mm Max. turning length: 744 mm Max. bar diameter: 65 mm Max. workpiece size with sub-spindle: ø 200 x 200 mm Main spindle Drive power: 29 kW Speed range: 0 – 5000 rpm Max. bar capacity: 65 mm Max. chuck size: 200 mm C-axis *resolution: 0.001° Sub-spindle Drive power (100/40% DC): 17/22 kW Speed range: 0 – 7000 rpm Max. chuck size: 200 mm Travel (Z-axis): 750 mm C-axis *resolution: 0.001° Upper tool turret Disc turret with directional logic Number of stations: 12 Driven stations: 12 Tool holder DIN 69880: VDI 30 Drive power: 6.7 kW Speed range: 0 – 4000 rpm Travel range: *X-axis: 270 mm *Z-axis: 750 mm *Y-axis: +50 mm Lower tool turret Disc turret with directional logic Number of stations: 12 Driven stations: 12 Tool holder DIN 69880: VDI 30 Rsdpfx Aoyx U Hioc Esr Drive power: 6.7 kW Speed range: 0 – 4000 rpm Travel range: *X-axis: 205 mm *Z-axis: 750 mm EQUIPMENT / ACCESSORIES  Fully enclosed, electrically secured with sliding doors and machine lamp  Bar loading magazine IEMCA Master 890 MP (left side) For bar length 3300 mm Including: guide channel, centering device, axial displacement  Thermo-compensation systems for integrated spindle motors (liquid-cooled)  Hollow clamping cylinder with draw tube for main spindle  Full clamping cylinder with draw bar for sub-spindle  C-axes for main and sub-spindle  Transmit software for simple C-axis programming  Y-axis in the upper turret (distribution of cutting forces on 2 axes, resulting in extremely high rigidity)  Drive units in both upper and lower turret  Parts ejector and flushing through sub-spindle  Finished parts pick-off device Finished part max. ø 65 x 200 mm Finished part max. weight: 4.5 kg  Conveyor belt for removing finished parts from the machine  Turret steady rest including VDI 30 base holder, controlled centrally in the tool turret via coolant supply (14 bar) Clamping diameter range: 10 – 70 mm  Coolant unit with 2 high-pressure pumps (14 bar each) and 2 flushing pumps (3.7 bar each)  Cleaning gun for cleaning clamping devices, covers, and the entire working area with coolant  Chip conveyor (hinged belt), extended version for gantry application, suitable for: long steel chips, chip bundles, wool chips, dry and wet machining  Electronic oil mist separator 800 – 1000 m³/h  Automatic central lubrication system for guideways and ball screws  Grease lubrication for main and sub-spindle  Foot switch for operating the clamping devices  HAINBUCH collet chuck size 65 for main spindle, without stop (without collets)  HAINBUCH collet chuck size 65 for sub-spindle, with stop, type 100 (without collets)  3-color warning lamp (red, green, white)  Serial interface  Levelling elements  Documentation

Durumu: iyi (kullanılmış), Üretim yılı: 2015, HAAS ST 30 SSY CNC Turning-Milling Center Year of manufacture: 2015 Control: HAAS Machine number: 3102813 Only approx. 9,950 operating hours (as of 25.03.26) Equipment: CNC turning-milling center with Y-axis Travel distances: max. 406 mm x 584 mm Swing diameter: 806 mm Y-axis travel: ±50.8 mm Vector drive (22.4 kW) 4,500 rpm A2-6 spindle 10-inch chuck (254 mm) Hybrid turret with 24 tool stations (12 VDI / 12 BOT) Driven tools with higher torque including C-axis 15” LCD color display Memory lock key switch Spindle orientation USB port Synchronized tapping Automatic tool presetter Hinged belt chip conveyor Parts catcher Programmable hydraulic tailstock Ethernet interface "Visual Quick Code" programming system VectorCam Turning - Special Haas Edition HAAS bar feeder Ø 76 mm Hainbuch collet chuck Kombi Axzug size 80 Chip guard for GR80 Vario Quick-Standard stop system size 80 Scope of delivery includes: BOT/VDI holders / turret Turning tools Hainbuch collets Collets for tools Driven tools Double door tool cabinet Machine mounting elements Chip trolley Operating manual/documentation Machine parameters on USB stick For equipment, technical data, manufacturer’s brochure, and machine layout – see PDF. Illustrations, contents, and specifications provided without guarantee, thus non-binding. All other accessories visible in the photos and videos are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories expressly listed here, in the order confirmation, and in the invoice. Redpjyx Dwqsfx Ac Eer FCA (Free Carrier – loaded on truck) D-32457 Porta Westfalica Packaging only Delivery time: immediate Subject to prior sale / Payment due immediately upon conclusion of purchase.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2007, çalışma saatleri: 10.066 h, Fonksiyonellik: tamamen fonksiyonel, CTX 410 V3 Redpfxeyx Ax To Ac Esr 2-axis universal lathe with HEIDENHAIN Plus iT CNC control and SlimLinePanel - C-axis - Driven tools - AC main drive 21 kW, 240 Nm - Sauter disc turret - Partial hollow clamping device - Chip conveyor - Tailstock Turret disc with 12 tool stations, Cylindrical shank Ø 40 mm according to DIN 69880 instead of diameter 30 mm Bar machining package consisting of: - Hydraulic hollow clamping device Draw tube inner max. 66 mm - Workpiece pickup device, pneumatically swiveling for parts Ø 65 mm x 120 mm long, - Signal beacon, 4 colors (Note: Connection for bar feeder or bar loading magazine additionally required)

Durumu: iyi (kullanılmış), Üretim yılı: 2007, çalışma saatleri: 4.262 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: R7AV13, torna çapı: 65 mm, Çalıştırılabilir durumda, çubuk besleyici ünitesinin durumu bilinmiyor, yeni makinenin gelmesi nedeniyle üretimden çıkarıldı. Her iki taret kafasında da tüm pozisyonlarda döner takım tutucu kullanımı mümkündür. Rjdpfjyxxhqox Ac Ejr

Durumu: mükemmel (kullanılmış), Üretim yılı: 1995, torna boyu: 710 mm, Karakteristikler: Rjdpfx Acjyxrczs Esr Kontrol sistemi: Siemens Maksimum torna uzunluğu: 710 mm Maksimum torna çapı: 270 mm

Durumu: kullanılmış, Üretim yılı: 2008, Fonksiyonellik: tamamen fonksiyonel, Karşı milli torna/freze merkezi Redpfx Aceyxqnio Ejr 10 CNC eksenli (X1, X2, Z1, Z2, Y1, Y2, B1, B2, C1, C2) Kontrol: FANUC 31:iA Ana mil Mil gücü: 15/11 kW Çubuk çapı: 51 mm Mil devri: 5000 dak-1 Karşı mil Mil gücü: 11/7.5 kW Çubuk çapı: 51 mm Mil devri: 50000 dak-1 Torna/freze mili Güç: 7.5/3.7 kW Dönme: 12000 dk-1 Maksimum. Alttaki taretin dönüş uzunluğu: 1005 mm Kızak seyahati X1 / X2 / Z1 / Z2 / B2: 455 / 222,5 / 1090 / 1005 / 1008 mm Slayt hareketi Y1/Y2: + - 70 / + - 50 mm B1 ekseni dönüş aralığı: + - 95 ° Destek robotu içeren doğrusal raf dergisi CNC desteği sabit 2 soğutma pompası içeren soğutma siklon filtre sistemi Mil yağ soğutucusu

Durumu: mükemmel (kullanılmış), Üretim yılı: 2009, Fonksiyonellik: tamamen fonksiyonel, TEKNİK BİLGİLER: Üretici: DMG Gildemeister Model: NEF 400 Üretim yılı: 2009 Kontrol sistemi: Heidenhain Güç kaynağı: 400 V / 50 Hz Rjdpfx Acoyxqa Eo Esr Bağlı yük: yaklaşık 21 kVA Akım: 31 A Kontrol voltajı: 230 V / 24 V Kablo spesifikasyonu: L ≤ 5 m, 230 V – 150 W Menşei: Avrupa

Durumu: mükemmel (kullanılmış), Üretim yılı: 2022, Fonksiyonellik: tamamen fonksiyonel, Time recording as of Feb. 2025 Operating hours = 16,085h Main spindle = 616h Milling spindle = 369h CNC control: Siemens Sinumerik Si 840D sl Max. centre distance: 4,500 mm Working height: 1,375 mm Cross slide travel X-axis: -15 to +725 mm Slide travel Y-axis: -245 to +4,756 mm Swing diameter over cross-slide guide: 780 mm Swing diameter over bed: 820 mm C-axis, smallest increment: +/-0.001° Main spindle A15 with live centre; 3,135 Nm; up to 2,000 rpm Spindle nose: DIN 55026 Form A 15 Max. speed: 3,000 rpm Max. torque: 3,135 Nm Drilling/Milling unit Milling power (40/100% duty cycle): 36.5/29.8 kW Torque up to 1,110 rpm (40/100% duty cycle): 328/261 Nm Max. speed: 5,000 rpm Swivel range (B-axis): -105° to +95° Vertical travel (Y-axis): -250 to +250 mm Steady rest SR5 with eccentric fine adjustment: 45–310 mm Tool system: C8 Tool magazine (2 magazines): 144 Tailstock Quill diameter MK6: 180 mm Quill stroke: 170 mm Quill force (adjustable): 5–28 kN Fine adjustment quill: +/-0.15 mm Additional equipment Coolant tank volume: 990 l Workpiece measurement MC (Renishaw) Rodpfxoyxp H Ds Ac Eor Hobbing software & more

Durumu: kullanılmış, Üretim yılı: 2012, çalışma saatleri: 20.000 h, makine/araç numarası: IntNr231536, High-end CNC turning centre with 2 turrets, 2 Y-axes and IRCO bar feeder Control system: SIEMENS 840D SolutionLine with ShopTurn interface Year of manufacture: 2012 Spindle hours: 20,000 Turning diameter (max.): approx. 390 mm Turning length (max.): 1,250 mm Bar capacity: 76 mm (standard) X-axis travel: 300 mm Z-axis travel: 1,250 mm Y-axis travel: +/- 60 mm (both turrets) Spindle specifications: Speed: up to 5,000 rpm Drive power: 34 kW (40% duty cycle) Torque: up to 380 Nm 4-axis kinematics 2 x 12 stations (all stations suitable for driven tools) Speed up to 6,000 rpm, output 11.3 kW Gear cutting software, including specialised tool holders for gear hobbing/cutting. Rodpfsyxpz Iex Ac Eer IRCO MUK short bar loader Hinged belt chip conveyor 20 bar high-pressure coolant system with paper band filter Technical specifications are subject to change and errors excepted. Prior sale reserved!

Durumu: kullanılmış, Üretim yılı: 2017, Technical Details: Turning diameter: 356 mm Turning length: 705 mm Control: CELOS M730 UM MAPPS Swing diameter: 742 mm Standard turning diameter: 275 mm Travel - X axis: 260 mm Travel - Y axis: 100 (±50) mm Travel - Z axis: 795 mm Rapid traverse - longitudinal/plan: 30 / 30 m/min Rapid traverse B-axis (sub-spindle part transfer): 734 m/min Spindle 1 speed: 4000 rpm Spindle 1 power: 15/18.5/18.5 kW Spindle 1 torque: 409/505/599 Nm Spindle 1 max. bar capacity: 80 mm Spindle 2 speed: 4500 rpm Spindle 2 power: 7.5/11 kW Turret stations / live tools: 20 / 20 BMT40 Live tool speed: 10,000 rpm Live tool drive power: 3.7/5.5/5.5 kW Live tool torque: 14 / 24 Nm Total power requirement: 38 kVA Machine weight approx.: 6.3 t Space requirement approx.: 4 (9) x 2.1 x 2.2 m Equipment: Chip conveyor Bar feeder interface Parts catcher spindle 1 and spindle 2 Workpiece and total piece counter 3-stage signal lamp Spindle 1 power chuck Kitagawa B 210 (250 mm) Spindle 2 power chuck Kitagawa B 206 (160 mm) Parts conveyor belt Automatic door Interface for internal coolant supply Internal coolant supply 70 bar, Knoll Program restart Tool presetting device spindle 1 & 2 Coolant shower 1 m short bar magazine IRCO Rodpfxsyxpv Se Ac Eer High-performance precision turning center with Y-axis and sub-spindle. Ideal for machining complex turned parts with off-center milling operations. Simple machine programming via CELOS-MAPPS 4 dialog control. Machine under power and can be demonstrated with chips. Very low operating hours. All available (driven) tool holders included. IRCO Simag bar feeder included.

Durumu: kullanılmış, Üretim yılı: 2015, Technical Details: Turning diameter: 65 mm Turning length: 120 mm Control: Index C200-4D SL Z-axis travel main spindle: 390 mm Z-axis travel counter spindle: 390 mm X-axis travel counter spindle: 600 mm Y1-axis travel: ± 80 mm Y2-axis travel: ± 80 mm X-axis rapid traverse: 45 m/min Y-axis rapid traverse: 15 m/min Z-axis rapid traverse: 45 m/min Spindle 1 speed: 5,000 rpm Spindle 1 power: 35.5/27.5 kW Spindle 1 torque: 170/125 Nm Spindle 2 speed: 5,000 rpm Spindle 2 power: 35.5/27.5 kW Spindle 2 torque: 170/125 Nm C-axis: 0.00014° Bar diameter: 65 mm Spindle nose: AD 140 Spindle bore: 85 mm Milling spindle 1 speed: 18,000 rpm Milling spindle 1 power: 11 kW Milling spindle 1 torque: 19 Nm Milling spindle 2 speed: 18,000 rpm Milling spindle 2 power: 11 kW Milling spindle 2 torque: 19 Nm B-axis swivel range: 230° B-axis torque: 440 Nm B-axis angular resolution: 0.001° Milling spindle 1 & 2 tool magazine: 80 HSK A40 Milling spindle 2 static tool magazine: 6 x VDI 25 Internal coolant supply: Knoll 80 bar / Ecofluid Machine weight approx.: 16.3 t Space requirement approx.: 3.73 x 2.92 x 2.58 m Rodpfeyxpadox Ac Eor Accessories: Chip conveyor Spindle 1 power chuck SMW HFKN 165-46 mm Spindle 2 power chuck SMW HFKN 165-46 mm Collet chuck main spindle Hainbuch Spanntop Collet chuck counter spindle Hainbuch Spanntop Bar loader interface Unimag Short bar loader IRCO ILS RBK 10016 Parts catcher for main and counter spindle Conveyor belt for part removal Oil mist separator Büchel The Index R 200 is a high-precision multi-function turning and milling center. It features 2 turning spindles and 2 milling spindles. Both milling spindles are equipped for full 5-axis machining. The Z-axes are integrated into the turning spindle stocks. The X2 axis is in the counter spindle stock. Milling spindle 1 is equipped with x/y/b axes, milling spindle 2 is equipped with y/b axes. Each milling spindle is fitted with a fully functional B (swivel) axis offering 230°. The machine is equipped with a short bar loader IRCO and a parts catcher. The removable parts may have the following maximum specifications: Diameter: 65 mm Length: 120 mm Weight: 5 kg Remnant length: 200 mm All linear axes feature glass scales. Coolant supply is available through the main and counter spindles as well as through the counter spindle. Tool breakage monitoring from drill diameter 1 mm. All existing tool holders are included with the machine. It is in excellent condition!

Durumu: kullanılmış, Üretim yılı: 2009, çalışma saatleri: 42.497 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: L2203458, torna çapı: 510 mm, mil motoru gücü: 11.000 W, maksimum mil hızı: 6.000 dev/dak, X ekseni hareket mesafesi: 175 mm, Z ekseni hareket mesafesi: 330 mm, Çubuk çapı (maks.): 32 mm, toplam ağırlık: 3.500 kg, Machine type: CNC lathe Manufacturer: Doosan Model: Lynx 220A Year of manufacture: 02.2009 Operating hours: 42,497 h (power-on hours, as of 17.12.2025) Max. turning diameter: 510 mm X-axis travel: 175 mm Z-axis travel: 330 mm Spindle speed: 6,000 rpm Spindle power: 11 kW Tool changer: 12 stations Bar feeder: Ø8-32 mm Weight: 3,500 kg Rsdpfeyxn D Isx Ac Esr Transport, collection, and dismantling must be organized by the buyer.

Durumu: iyi (kullanılmış), Üretim yılı: 2006, çalışma saatleri: 14.119 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 6682NL151EG0306J, torna çapı: 260 mm, maksimum mil hızı: 6.000 dev/dak, toplam yükseklik: 2.000 mm, toplam uzunluk: 2.185 mm, toplam genişlik: 2.460 mm, Çubuk çapı (maks.): 45 mm, toplam ağırlık: 5.300 kg, Makine tipi: CNC torna tezgahı Rjdjyxnu Hspfx Ac Eer Üretici: DMG Mori Model: NL1500/500 Üretim yılı: 2006 Çalışma saati: 14119 saat (17.12.2025 tarihi itibariyle) Kontrol sistemi: MSX-850 BM Mil devir hızı: 6000 dev/dak İşleme çapı: Stok yükleyici ile Ø16-45mm Takım istasyonu: 12 + punta Ağırlık: 5300 kg Boyutlar (GxDxY): 2460x2000x2185 mm Taşıma, teslim alma ve söküm işlemleri alıcı tarafından organize edilmelidir.
