Benzer satıcılardan güncel teklifler
Küçük ilan
Berlin
2.249 km
Toplu Tel Dikiş Makinesi Heidelberg ST400

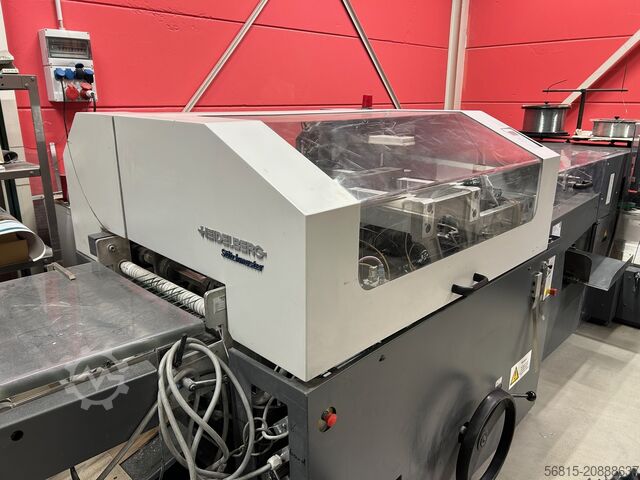

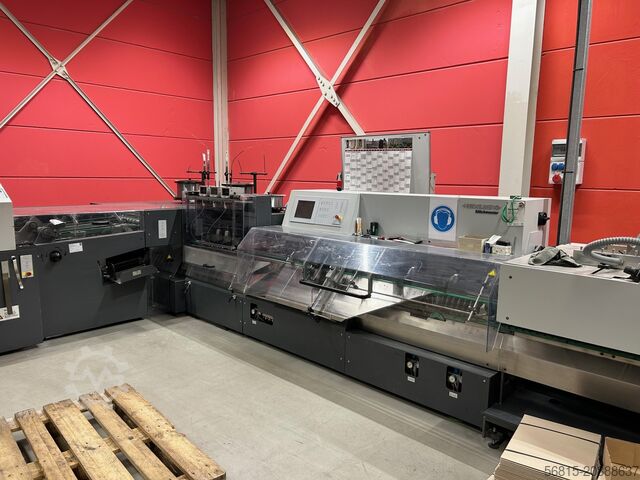

HeidelbergStitchmaster 400 / ST400
HeidelbergStitchmaster 400 / ST400
Ara
Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2005, Fonksiyonellik: tamamen fonksiyonel, Heidelberg Stitchmaster 400 Saddle Stitcher – used
6× TAS 400 Upright Folded Sheet Feeders · Cover Feeder · ST 400 Stitching Station · Staple Monitoring · Thickness Control · Center Cutting Device · Touchscreen Control Panel · Three-Knife Trimmer · 4 Large Spool Holders · TR-400 Trimmer
For sale is a used Heidelberg Stitchmaster 400 saddle stitcher in good, fully operational condition. The machine is equipped with:

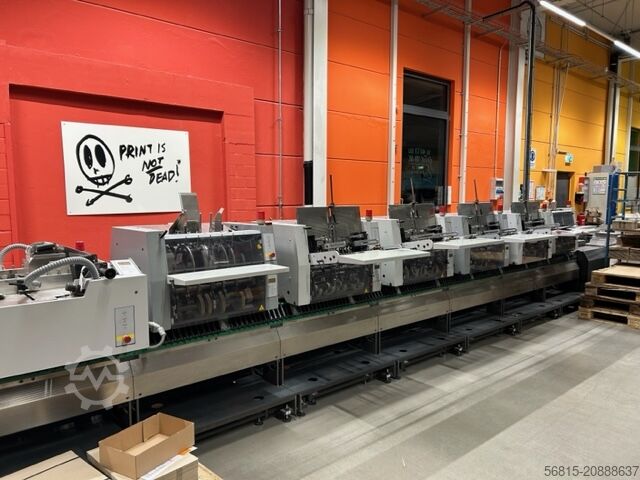

- 6 upright TAS 400 folded sheet feeders
- Cover feeder
- 1 ST 400 stitching station
- Staple monitoring
- Thickness control
- Center cutting unit
- Central touchscreen control for easy operation and quick setup times
- Precise stitching unit for saddle or flat staples
- Integrated three-knife trimmer for clean final trimming results
- 4 large spool holders for extended production runs
- TR-400 trimmer for precise final trim
The Stitchmaster 400 is therefore ideal for the professional production of brochures, catalogs, and flyers in small to medium print runs.
The machine impresses with precise stitching quality, proven Heidelberg technology, and high efficiency:
- Production speed: up to 11,000 cycles/hour
Technical Data:
- Untrimmed format: min. 92 × 128 mm – max. 320 × 480 mm
- Trimmed format: min. 89 × 120 mm – max. 305 × 474 mm
- Multiple-up production: formats on request
- Product thickness: max. 12 mm
Dedpsx Stb Sofx Admocb
Condition:
- Used
- Well maintained
- Fully functional
- Inspection under power possible by appointment
Optional services:
- Professional disassembly & loading
- Transport organization
- Support during commissioning
Machine located in Berlin Marienfelde
Nunsdorfer Ring 13
12277 Berlin - Germany
Tel & WhatsApp: +49 177 896 4920
Küçük ilan
Wakefield
3.213 km
Kitapçık Oluşturucu
Duplo5000 System
Duplo5000 System
Ara
Durumu: mükemmel (kullanılmış), Üretim yılı: 2012, Ref:11053 . 2012 Duplo 5000 Sistemi
Her türlü dijital baskı işletmesi için hızlı hazırlık süresine sahip dikey tabaka kolatörü.
Çevrimiçi kitapçık yapıcı ile birlikte.
İçeriği:
DC60/10 PRO – Dokunmatik ekranlı otomatik hazırlık için 2 x 10 gözlü kule kolatörü.
Dsdpfx Adex Sq Tlomscb
Hatalı ve çift tabaka algılamalı vakumlu besleme sistemi.
Arka istifleyici tabla teslimat birimi.
Kitapçık yapıcı içeriği:
DBM 500 çift kafalı tel dikiş ünitesi, programlanabilir
2 x Hohner 48/5 S dikiş kafası
Tek katlama ünitesi
DBM 500T Tek bıçaklı ön kenar kesme ünitesi
Damla bant teslimat ünitesi.
Küçük ilan
Wakefield
3.213 km
Sırt dikiş makinesi
HorizonStitchliner 5500
HorizonStitchliner 5500
Ara
Durumu: mükemmel (kullanılmış), Üretim yılı: 2008, Ref.: 11054 . 2008 Horizon Stitchliner 5500
Vollautomatisches Zusammentragen und broschürenheftendes Buchfertigungssystem.
Dcsdsx Sq S Ispfx Admeb
Ausstattungsmerkmale:
• 10,4" Farb-Touchscreen mit Icons und Speicher für 200 Aufträge
• Einfache und schnelle Rüstzeiten, auch für Bedienpersonal ohne spezielle Weiterverarbeitungskenntnisse
• Fortschrittliche Vollautomatisierung sämtlicher Systeme
• Rüstbereit in Sekunden, nahezu ohne Makulatur, auch bei Einzelstückfertigung
• Verarbeitung von plano gelegten 4-Seiten-Bogen
• Kein Vorfalzen erforderlich
• Integrierter, automatischer Dreimesser-Trimmer mit automatischer Einstellung
• Kein Vorbeschnitt nötig
• Rillen, Längsfalz (Plough fold), Ausrichtung und echtes Rückstichheften
• Hochwertige Broschüren mit sauber definierter Buchrückenkante
• Maximale Effizienz auch bei Einzelauflagen
Bestehend aus:
30 Stationen – 5 x VAC60 (a+m+c), 6-Stations-Saugluft-Zusammentragtürme
mit Touchscreen-Steuerung, Doppel- und Fehlbogenerkennung
Separates Zusammentragen vom 'C'-Turm
ST-40 Stapel-/Bypasseinheit zu:
ACF-40 Sammel-/Falzeinheit mit Doppelparallelfalz zu:
SPF-30 Rückstichhefter mit 2 x Hohner 43/6S Heftköpfen zu:
HTS-30 Dreimesser-Schneideeinheit mit Handzuführung
LC-20 Langbandauslage
Technische Daten:
Max. Bogenformat: 350 mm Breite x 500 mm Länge
Min. Bogenformat: 148 x 210 mm
Max. Heftstärke: 6 mm
Produktionsgeschwindigkeit: bis zu 6.000 Broschüren pro Stunde, abhängig vom Material.
Küçük ilan
Henstedt-Ulzburg
2.521 km
Sırt dikiş makinesi
HorizonStitchLiner SL-5500
HorizonStitchLiner SL-5500
Ara
Durumu: iyi (kullanılmış), Üretim yılı: 2006, Sammelheft-Linie
Maximale Geschwindigkeit: 5.500 Takte/h
Papierstärke: 40 - 350 g/m²
- Sammelhefter und Zusammentragmaschine in einer Anlage vereint.
- Zusammentragen, Falzen, Heften und Schneiden in einem vollautomatischen Prozess – alternativ Einsatz ausschließlich als Zusammentragmaschine möglich.
- Separate Herstellung von gefalzten Produkten entfällt, da der Falzprozess automatisch integriert ist.
- Äußerst einfache Bedienung und sekundenschnelles Umrüsten dank Touch&Work-Technologie.
Konfiguration:
- 2 automatische Zusammentragtürme VAC-60Ha + VAC-60Hc, jeweils mit 6 Hochstapelstationen (130 mm Beladehöhe), insgesamt 12 Stationen, 2 Kompressoren
- Transferbrücke zum ST-40
- ST-40: Stacker und Stapelauslage für reinen Zusammentragemodus, Überführung zur Falzstation ACF-30
- ACF-30: Falzstation (Rütteln, Sammeln, Nuten, mit Pflugfalz-Funktion)
- SPF-30: Heftstation
- 2x HOHNER-Universal 43/6-S Heftköpfe für Standardheftung
- Zentrale Touch&Work-Bildschirmsteuerung mit Farbmonitor
- Übergabe-Auslage zum Trimmer mit Ausschleusung fehlerhafter Produkte
- HTS-30-S: 3-Seiten-Trimmer
Djdpex R Uhdefx Admecb
- Bandauslage
- TB-30: Gebläse zur Späneentsorgung mit Auswurfstation
- Umfangreiches Zubehör, Ersatzteile und Werkzeug
Küçük ilan
Henstedt-Ulzburg
2.521 km
Sırt dikiş makinesi

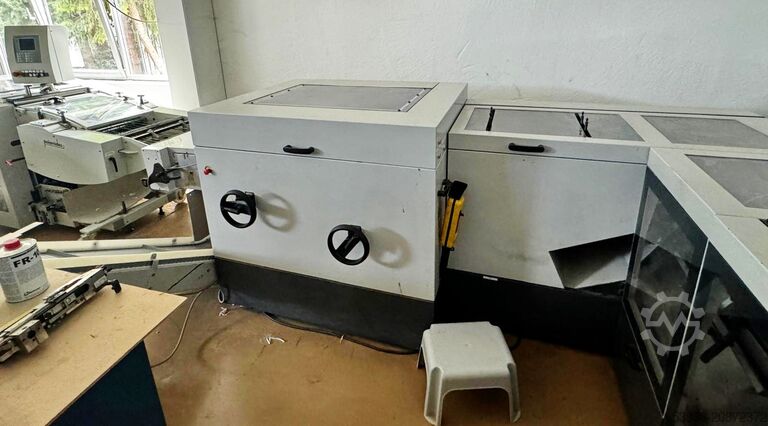

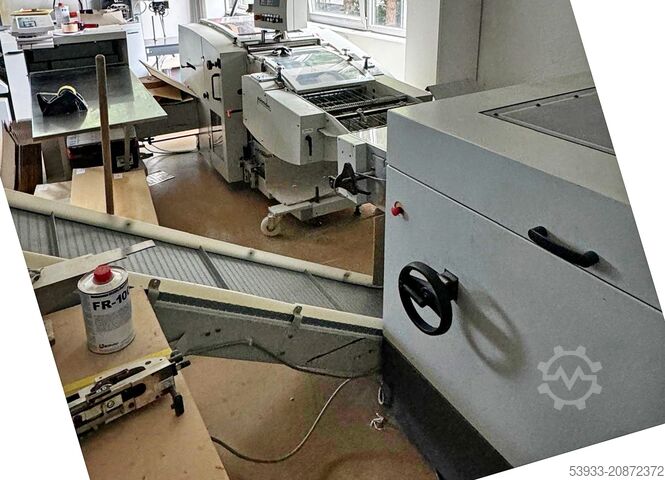

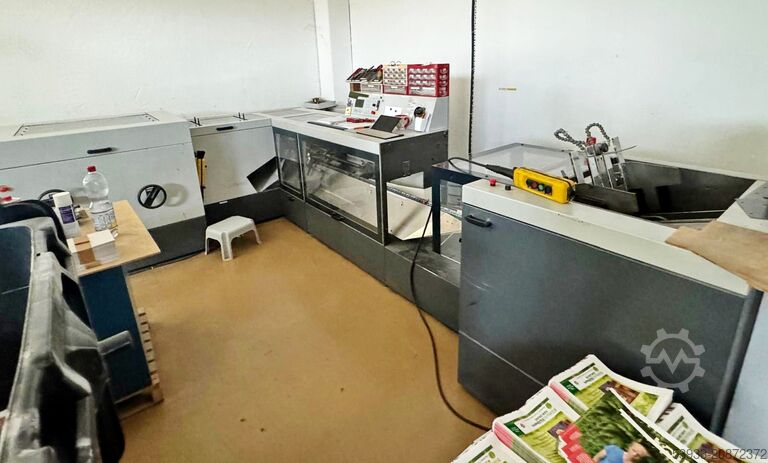

HeidelbergStitchmaster ST 100.2
HeidelbergStitchmaster ST 100.2
Ara
Durumu: iyi (kullanılmış), Üretim yılı: 2010, Maksimum kapasite: 9.000 T/saat

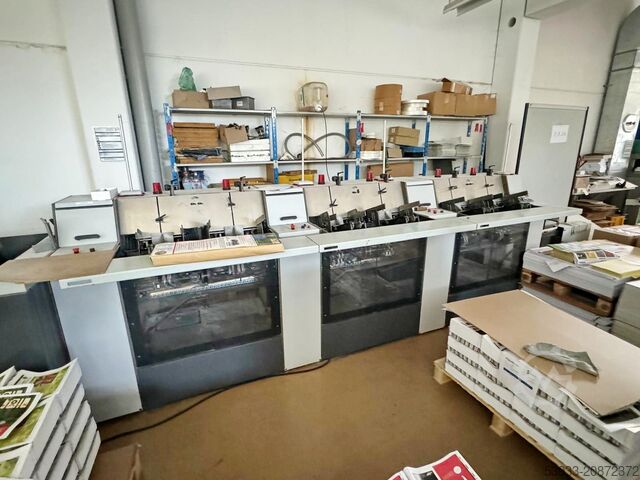

3 çift besleyici DVA (= 6 besleyici)
1 kapak besleyici UFA-100
- Dikiş istasyonu HS-100
- Hohner dikiş kafaları (standart + halka dikiş)
Dcodpfx Aox R Ugyjdmsb
- Hatalı tabaka ayırma istasyonu
- 3 bıçaklı trimmer TR-100
- Şerit bant çıkışı SA
- Kompresörler
- Aksesuarlar
Tel dikiş hattı
Hız: 9.000 çevrim/saat
3 çiftli besleyici DVA-100 (6 besleyici)
1 kapak besleyici UFA-100
- Dikiş istasyonu HS-100
- HOHNER dikiş kafaları (standart + halka dikiş)
- Hatalı ürünler için ayırıcı istasyon
- 3 bıçaklı trimmer TR-100
- Şerit bant çıkışı SA
- Besleyici hat için kompresör desteği
- Aksesuarlar
Küçük ilan
Henstedt-Ulzburg
2.521 km
Sırt dikiş makinesi
HeidelbergStitchmaster ST-400
HeidelbergStitchmaster ST-400
Ara
Durumu: iyi (kullanılmış), Üretim yılı: 2004, Saddle Stitcher Line
Make: HEIDELBERG
Model: Stitchmaster ST-400
Dsdpfx Ajx R Ti Tjdmscb
Maximum Sheet Size: 320 x 480 mm
Year of Manufacture: 2004
Maximum Speed: 14,000 cycles/hour
Machine No.: FJ.DFA0-000152
- Touch-screen control for all functions
- Automated format pre-settings
- 7 drum feeders (4x TAS/vertical + 3x TAL/horizontal)
- UFA-400 cover feeder
- Sheet format control
- HM-400 stitching station
- HD/MM stitching heads (4x standard + 4x loop/eyelet)
- 4 large wire spools
- Stitching wire transport systems
- Staple monitoring
- Reject gate for misfeeds
- TR-400 three-knife trimmer
- Trim control
- Central cut device MS
- Punching die system with air-blast assist
- Various punching dies (6, 8, and 12 mm)
- Spare knife sets
- RIMA RS-10-S/2001 compensating stacker
- Additional flat belt delivery
- Pressure/vacuum supply for all 7 feeders and UFA
- Tools, accessories, and technical documentation
- 2 additional TAS-400 feeders in reserve, including bases, transport chains, and accessories
Offer without obligation
Küçük ilan
Vecsés
1.596 km
Sırt dikiş makinesi
HohnerHSB 8000
HohnerHSB 8000
Ara
Durumu: kullanılmış, Üretim yılı: 2010, Fonksiyonellik: tamamen fonksiyonel, 2 db Hohner HSB 8000 tűzőgépet kínálunk eladásra. A gépek szétszerelt állapotban vannak, azonnal elérhetők.
Dsdpfx Adjx R Dntjmscb
1. Hohner HSB 8000
Évjárat: 2010
Számláló: 60 000 000
2. Hohner HSB 8000
Évjárat: 2008
Számláló: 100 000 000 tűzés
Maximális sebesség: 8000 ciklus/óra
Legnagyobb hajtogatott ívméret: 350x360 mm
Legkisebb hajtogatott ívméret: 105x130 mm
Legnagyobb borító méret: 360x620 mm
Legkisebb borító méret: 130x170 mm
Küçük ilan
Zaandam
2.771 km
Sırt dikiş makinesi
MÜLLER MARTINIVentura MC 200
MÜLLER MARTINIVentura MC 200
Ara
Durumu: yeni gibi (kullanılmış), Üretim yılı: 2020, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 10024150, Dikiş makinesi Muller Martini Ventura MC-200, Makine hızı* Mekanik 18 ila 200 çevrim/dk, maks. 12 000 çevrim/saat, min. imza uzunluğu 120 mm, maks. imza uzunluğu 510 mm, min. imza genişliği 75 mm, maks. imza genişliği 320 mm, maks. imza kalınlığı 4 mm, Min. kucak açıklığı. 8 mm, alçak veya yüksek folyo katlama, Dikişler Dikiş sayısı standart 13, kademeli 14, Dikiş uzunluğu 16,5 mm tüm dikiş tipleri için gizli dikişle/gizli dikişsiz mümkündür Dikiş makinesi Muller Martini MC 200
Dodpfx Adex Rywksmecb
Küçük ilan
Radom
1.765 km
Sırt dikiş makinesi
Horizon Stitchliner 6000Booklet Maker
Horizon Stitchliner 6000Booklet Maker
Ara
Durumu: iyi (kullanılmış), Horizon Stitchliner 6000 Broschürenfertigungsanlage
Dcodpfjx N Dx Nsx Admob
Diese Maschine befindet sich in einem sehr guten Zustand, mit geringer Laufleistung, und wurde 2014 hergestellt.
Beschreibung:
Diese Maschine zeichnet sich durch ein robustes, kompaktes und professionell gebautes Design aus. Sie besticht durch hohe Effizienz und ausgezeichnete Bindungsqualität. Die maximale Ausstoßleistung beträgt 6.000 Takte pro Stunde, und mit der Stanzoption sind bis zu 12.000 Takte pro Stunde möglich. Die StitchLiner wird vollständig automatisch über ein Touchpanel eingerichtet. Mit der Maschine können Broschüren mit bis zu 200 Seiten bei einem Papiergewicht von ca. 60 g/m² verarbeitet werden.
Ausstattung:
– 2 Horizon VAC-80 Sa + Sm Zusammentragtürme
– Horizon SPF-30S Rückstichhefter
– Horizon ACF-30S Falzmodul
– Horizon HTS-30S Dreimessertrimmer
– Auslage, Absauganlage für Abfall, 2 Hohner-Heftköpfe, Kompressoren, zusätzliche Komponenten, Zubehör, Dokumentation
Technische Daten:
Maximales Format: 350 x 500 mm
Minimales Format: 140 x 200 mm
Papiergewicht: 53 bis 210 g/m²
Maximale Broschürenstärke: 5,2 mm (ungefalzt)
Klammerabstand: 60 bis 150 mm
Dreimessertrimmer Schnittstärkenbereich: 2 bis 25 mm
Produktionsleistung: bis zu 6.000 Broschüren/Stunde
Drahtstärke: 0,5–0,7 mm
Açık artırma
Biter
d
h
min
s
Açık artırma bitmiş
Bayern
2.313 km
Belge bitim sistemi
DuploSystem 5000
DuploSystem 5000
Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2010, Fonksiyonellik: tamamen fonksiyonel, istif yüksekliği: 60 mm, kağıt gramajı (min.): 40 g/m², maksimum kağıt ağırlığı: 300 g/m², üretim kapasitesi: 5.000 birim/s, Duplo Brochure Production System 5000
The offer consists of:
2x Collating Towers DC-10/60
Transfer Unit LUL-HM
Stitching and Folding Unit DBM-500
Front Trimmer DBM-500T
Batch Counter DBM-K
Long Delivery Stacker DBM-400LS
2x DC-10/60 (20 Stations)
Paper size: min. 120 x 148 mm; max. 350 x 500 mm
Paper weight: 40–300 gsm
Stack height: 60 mm per station
Feeder: Suction/blow air
Controls: Double sheet, miss sheet, paper jam, empty station detection
Power supply: 230 V, 50 Hz, 4.5 A, 1,035 W
Dimensions: 630 mm x 750 mm x 1,972 mm
Weight: 290 kg
Folding and Stitching Unit DBM-500
Paper size: min. 120 x 170 mm; max. 350 x 500 mm
Speed: 5,000 cycles/h (A5)
4,600 cycles/h (A4)
4,000 cycles/h (A3)
Stapling capacity: 5 mm (50 sheets, 80 gsm)
Folding capacity: 25 sheets
Number of stitching heads: 2
Dcedpfx Adjx Niupemjb
Controls: Paper jam detection, paper position display, wire end
Memory locations: 12
Folding/stitching modes: Folding without stapling, saddle stitching/folding, corner stapling/folding, corner stapling, block/side stapling
Power supply: 230 V, 50 Hz, 5 A, 1,150 W
Dimensions: 1,610 mm x 770 mm x 1,020 mm
Weight: 412 kg
Stitching Unit Counter Readings (see pictures):
Counter left: 1,392,871
Counter right: 5,218,991
Front Trimmer DBM-500T
Brochure size: min. 85 x 120 mm; max. 250 x 356 mm
Trimmed final size: min. 75 x 120 mm
Speed: >5,000 cycles/h
Processing thickness: 50 sheets (80 gsm)
Power supply: 230 V, 50 Hz, 3.3 A, 759 W
Dimensions: 700 mm x 635 mm x 1,094 mm
Weight: 241 kg
Açık artırma
Biter
d
h
min
s
Açık artırma bitmiş
Bayern
2.313 km
Belge bitim sistemi
DuploSystem 5000
DuploSystem 5000
Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2014, Fonksiyonellik: tamamen fonksiyonel, istif yüksekliği: 60 mm, kağıt gramajı (min.): 40 g/m², maksimum kağıt ağırlığı: 300 g/m², üretim kapasitesi: 5.000 birim/s, Duplo Booklet Production System 5000
The offer includes:
1x Collating Tower DC-10/60
Transfer Unit LUL-HM
Stitching and Folding Unit DBM-500
Front Trimmer DBM-500T
Batch Counter DBM-K
Long Delivery Table DBM-400LS
DC-10/60 (10 stations)
Paper size: min. 120 x 148 mm; max. 350 x 500 mm
Paper weight: 40–300 gsm
Stack height: 60 mm per station
Feeders: Suction/air separation
Sensors: Double feed, misfeed, paper jam control, empty bin detection
Power supply: 230 V, 50 Hz, 4.5 A, 1,035 W
Dimensions: 630 mm x 750 mm x 1,972 mm
Weight: 290 kg
Folding and Stitching Unit DBM 500
Paper size: min. 120 x 170 mm; max. 350 x 500 mm
Speed: 5,000 cycles/h (A5)
4,600 cycles/h (A4)
4,000 cycles/h (A3)
Stitching capacity: 5 mm (50 sheets, 80 gsm)
Dcsdpfx Adsx Nimrsmeb
Folding capacity: 25 sheets
Number of stitch heads: 2
Sensors: Paper jam control, paper positioning display, wire end
Memory: 12 programs
Folding and stitching modes: Collating and folding without stitching; saddle stitching/collating and folding; corner stitching/collating and folding; corner stitching; block/side stitching
Power supply: 230 V, 50 Hz, 5 A, 1,150 W
Dimensions: 1,610 mm x 770 mm x 1,020 mm
Weight: 412 kg
Front Trimmer DBM 500T
Booklet size: min. 85 x 120 mm; max. 250 x 356 mm
Trimmed output size: min. 75 x 120 mm
Speed: >5,000 cycles/h
Processing thickness: 50 sheets (80 gsm)
Power supply: 230 V, 50 Hz, 3.3 A, 759 W
Dimensions: 700 mm x 635 mm x 1,094 mm
Weight: 241 kg
Küçük ilan
Wakefield
3.213 km
Sırt dikiş makinesi
HorizonStitchliner 5500-S
HorizonStitchliner 5500-S
Ara
Durumu: mükemmel (kullanılmış), Üretim yılı: 2016, Ref: 11041. 2016 Horizon Stitchliner 5500-S.
Ausgezeichneter Zustand – nur 1,6 Mio. Zählerstand!
Vollautomatisches Broschürensystem für Rückstichheftung.
Ausstattung:
• 10,4” farbiger Touchscreen mit Symbolnavigation und Speicher für 200 Aufträge
• Einfache, schnelle Rüstvorgänge, bedienbar auch durch nicht-spezialisierte Mitarbeiter
• Fortschrittliche, systemübergreifende Automatisierung
• In Sekunden einsatzbereit, nahezu abfallfreie Produktion, Arbeiten auf Abruf
• Verarbeitung von flachen 4-Seiten-Bogen
• Kein Vorfalten erforderlich
• Integrierter, automatischer Dreimesser-Schneider mit Einrichtung auf Knopfdruck
• Kein Vorbeschnitt erforderlich
• Rillen, Falzen, Registerführung und echte Rückstichheftung
• Hochwertige Broschüren mit exakter Rückenprägung
• Höchste Effizienz selbst bei Einzelstück-Fertigung
Bestehend aus:
CF-400 Anleger mit Touchscreen-Bedienung
ST-40 Ablagestapler / Bypass zu:
ACF-40 Zusammentrag-/Falzmaschine mit Doppeltaschenfalz zu:
SPF-30S Rückendrahthefter mit 2 x Hohner 43/6S Heftköpfen zu:
HTS-30S Dreimesser-Schneideinheit mit manueller Zuführung
TB-30 Absauganlage
LC-20 Langband-Auslage
Technische Daten:
Max. Bogenformat: 350 mm Breite x 500 mm Länge
Dedpsx Nflwofx Admjcb
Min. Bogenformat: 148 x 210 mm
Max. Heftstärke: 6 mm
Produktionsgeschwindigkeit: bis zu 6.000 Broschüren pro Stunde, abhängig vom Material
Küçük ilan
Volkach
2.313 km
Horizon SPF-20A FC-20A VAC-100a VAC-100m | 2003 | 5,2 Milyon
HorizonSPF models
HorizonSPF models
Ara
Durumu: kullanılmış, Üretim yılı: 2003, Horizon VAC-100a VAC-100m SPF-20A FC-20A Booklet Production, used
This Horizon booklet production system is a high-performance solution for professional booklet making, integrating collating, stapling, folding, and front trimming into one efficient process. It offers high productivity, versatile application options, and easy operation for efficient booklet production.
Key Features:
- Two collating towers: VAC-100a and VAC-100m, each with 10 stations
- Versatile stapling options: saddle, corner, and block stapling possible
- Touch & Work: intuitive operation via user-friendly technology
- 9 programmable memory slots for repeat jobs
- Precise error monitoring: prevents misfeeds, double-sheet, and jam issues
- Expandable configuration: possibility to add further VAC-100 towers
Technical Specifications:
- Paper size: max. 350 x 500 mm; min. 148 x 120 mm
- Booklet size: max. 250 x 350 mm; min. 85 x 120 mm
- Paper weight: 40–300 g/m²
- Processing capacity: 2–22 sheets (80 g/m²)
Dcjdex D Urgepfx Admeb
- Trimming capacity: 4–50 sheets (80 g/m²)
- Front trim: max. 25 mm
- Production speed: up to 3,600 booklets/h
- Collating performance: up to 9,900 sets/h
- Loader capacity per station: 55 mm
- Power supply: 230V; 50/60Hz
- Total power: approx. 2.3 kW
All-Inclusive Package
We take care of everything—from secure packaging and transport to customs clearance. On request, we can also provide you with a customized leasing offer.
Sustainable and economical
Choose a pre-owned machine and benefit twice: care for the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Küçük ilan
Volkach
2.313 km
Horizon Stitchliner 6000 | 2014 | 5 milyon
HorizonStitchliner 6000
HorizonStitchliner 6000
Ara
Durumu: kullanılmış, Üretim yılı: 2014, Horizon StitchLiner 6000 Saddle Stitcher, used
The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production.
It combines feeding, creasing, folding, stitching, and three-sided trimming in a single, efficient process.
With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, bookbinderies, and on-demand printing.
This StitchLiner 6000 consists of the following components:
- Hunkeler LS6, SE6, CS6
- ACF-30 Gathering and Folding Unit
- SPF-30 Saddle Stitcher
- HTS-30 Three-Knife Trimmer
Key Features:
- Inline production
- Variable data processing: The system can handle personalized prints and variable page counts, making it ideal for digital printing
- Fully automatic format adjustment for quick job changeovers
- Touchscreen for intuitive operation, even for less-experienced operators
Technical Specifications:
- Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm
- Paper weight: 64–300 gsm
- Processing capacity: Up to 5 mm (approx. 50 sheets of 80 gsm)
- Production speed: Up to 6,000 booklets/hour
- Stitching distance: 60–150 mm
- Trimming (untrimmed): Max. 350 x 250 mm, Min. 120 x 85 mm
- Trimming (trimmed): Max. 340 x 240 mm, Min. 85 x 75 mm
Dcsdjx Apz Hopfx Admsb
- Power supply: 200–240V, 50/60Hz
- Compressed air: 5 bar, 230 l/min
All-Inclusive Service Package
We take care of everything: from secure packaging and transport to customs clearance. Upon request, we can also provide you with a tailored leasing offer.
Sustainable and Economical
Choose a pre-owned machine and enjoy double the benefit: protect the environment and your budget. Despite possible signs of use, you will receive a quality product at an attractive price.
Küçük ilan
Kilkenny
3.565 km
Martini Quad Seal Torba Şekillendirme Makineleri
Martini Quad Seal Bag FormersMX600
Martini Quad Seal Bag FormersMX600
Ara
Durumu: yeni gibi (kullanılmış), Üretim yılı: 2020, çalışma saatleri: 100 h, Fonksiyonellik: tamamen fonksiyonel, Satılık; 2 adet Martini Quad Seal Torba Yapıcı, az kullanılmış, neredeyse yeni.
Dcedpexzdhxsfx Admob
Küçük model: 60mm x 45mm boyutunda torba yapar
Büyük model: 90mm x 60mm boyutunda torba yapar
Satış fiyatı, gerçek maliyetinin %50’sinden daha azdır.
Küçük ilan
Volkach
2.313 km
SPF-20 A FC-20 A | 2005 | 10,6 Milyon
HorizonSPF models
HorizonSPF models
Ara
Durumu: kullanılmış, Üretim yılı: 2005, Horizon Brochure Making System SPF-20 A FC-20 A
The offer includes:
- Stitching and folding unit SPF-20A
- Fore-edge trimmer FC-20A
Horizon SPF-20A
Stitching and Folding Unit:
- Format settings: fully automatic
- DIN formats and standard folding types: pre-programmed
- Job memory: 12 storage spaces for custom formats + all DIN formats
- Stitching heads: 2 – expandable to 4 stitching heads
- Stitching options: saddle stitching, block stitching, corner stitching
- Loop stitching: possible with loop stitching heads
- Feed format:
max. 500 x 350 mm;
min. 180 x 120 mm
- Processing thickness:
min. 2 sheets; max. 22 sheets (80 gsm)
- Staple spacing: min. 73 mm
- Wire gauge: 26 - 28
- Speed: max. 3,600 cycles/h
- Power supply: 230V/50Hz - 0.45 kW
- Dimensions: 2,710 x 810 x 1,070 mm
- Weight: 490 kg
Horizon FC-20A
Fore-edge Trimmer:
- Counter
- Faulty sheet ejection
- Format size:
max. 250 x 20 mm; min. 85 mm
- Trimming width:
Dodpfsxyhngsx Admjcb
max. 20 mm
- Processing thickness:
min. 4 pages / max. 88 pages (80 gsm)
- Speed: max. 3,400 brochures/h
- Power supply: 230V/50Hz - 0.2 kW
- Dimensions: 601 x 810 x 1,070 mm
- Weight: 240 kg
Upon request, we can organize the following services for you:
Packaging, loading, transport (by sea or by air) including customs clearance
Arranging a leasing offer
Küçük ilan
Derby
3.186 km
Muller Martini Eyer Dikiş Makineleri
Muller Martini Bravo Plus Amrys saddle stitcher- 2006
Muller Martini Bravo Plus Amrys saddle stitcher- 2006
Ara
Durumu: işlem için hazır (kullanılmış), 1 x 380 Dikiş Ünitesi Amrys ile birlikte
2 x HK75 Dikiş Kafası
1 x Red kapamalı Kaliper Kontrol Ünitesi
1 x Eğik Tabaka Sedye Monitörü
1 x Uzaktan Kumandalı Yavaş İleri (Jogger Inch)
5 x 370 Amrys'li Ünite Besleyici
Dsdjxya Eqopfx Admjcb
1 x 554 Amrys'li Kapak Katlama Besleyici
1 x 449 Amrys'li Üç Bıçaklı Kesici
1 x Muller Martini Perfetto 450 İstifleyici Teslimat Ünitesi
Küçük ilan
Volkach
2.313 km
Horizon VAC-100 ve VAC-100 m SPF-20 A FC-20 A
HorizonVAC-100 models
HorizonVAC-100 models
Ara
Durumu: kullanılmış, Üretim yılı: 1999, Horizon Brochure Production Line VAC-100a VAC-100m SPF-20A FC-20A
Offer includes:
- Collating Tower VAC-100a
- Collating Tower VAC-100m
- Stitching and Folding Unit SPF-20A
- Trimmer FC-20A
Horizon VAC-100a / Horizon VAC-100m
Suction Air Collating Machines
- Technology: Touch & Work
- Model: Suction and Blower Air Collating Tower
Dcsdpfoxxtyrex Admob
- Number of Stations: 10 per tower
- Error Prevention: Miss-, Double-Sheet and Jam Detection
- Job Memory: 9 memory slots for repeat jobs
- Expandability: up to 6 towers (60 stations)
Programs:
- Dual Cycle (Nonstop Operation)
- Insert Sheets (Single and Double)
- Brochure Program
- Block Program
- Selective Collating
- Sheet Size: max. 500 x 350 mm; min. 148 x 120 mm
- Paper Weight: 40 – 250 g/m²
- Loading Capacity: 55 mm per station
- Output: up to 9,500 sets/hour
- Power: 230V/50Hz – 1.86kW
- Dimensions: 842 x 652 x 1,961 mm
- Weight: 310 kg
Horizon SPF-20A
Stitching and Folding Unit:
- Format Setting: Fully automatic
- DIN sizes and standard fold types: pre-set
- Job Memory: 12 slots for custom formats + all DIN formats
- Stitching Heads: 2, expandable to 4
- Stitching Options: Saddle, Block, and Corner Stapling
- Loop Stapling: possible with loop stitching heads
- Feed Size:
max. 500 x 350 mm;
min. 180 x 120 mm
- Processing Thickness:
min. 2 sheets; max. 22 sheets (80g/m²)
- Staple Spacing: min. 73 mm
- Staple Wire: 26 – 28
- Speed: max. 3,600 cycles/hour
- Power: 230V/50Hz – 0.45kW
- Dimensions: 2,710 x 810 x 1,070 mm
- Weight: 490 kg
Horizon FC-20A
Front Trimmer:
- Counter
- Misfeed Eject
- Format Size:
max. 250 x 20 mm; min. 85 mm
- Trim Width:
max. 20 mm
- Processing Thickness:
min. 4 pages / max. 88 pages (80g/m²)
- Speed: max. 3,400 brochures/hour
- Power: 230V/50Hz – 0.2kW
- Dimensions: 601 x 810 x 1,070 mm
- Weight: 240 kg
Upon request, we can organize the following for you:
Packaging, loading, and transport (by sea or air), including customs clearance
Obtaining a leasing quotation
Küçük ilan
Derby
3.186 km
Muller Martini Eyer Dikiş Makineleri
Muller Martini Bravo Plus Saddle Stitcher - 2008
Muller Martini Bravo Plus Saddle Stitcher - 2008
Ara
Durumu: işlem için hazır (kullanılmış), 1 x dikiş ünitesi - 380
Dcedpfjxxnlpex Admeb
2 x HK75Q dikiş kafası
1 x uzaktan kumandalı jogger inch
1 x eğik tablalı arkalık monitörü
6 x bölüm besleyici 370
1 x kapak katlama besleyici 1529
1 x üç bıçaklı trimmer 449
1 x istifleyici teslimat - Perfetto 450
İsteğe bağlı ekipmanlar:
Çift üretim için orta kesme aparatı
Besleyiciler için küçük boyut adaptörü
ekstra dikiş kafaları
Küçük ilan
Volkach
2.313 km
Horizon HOF-400 | 2015
HorizonHOF
HorizonHOF
Ara
Durumu: kullanılmış, Üretim yılı: 2022, Horizon HOF-400, fully-automatic feeder, used.
This robust, fully-automatic feeder is specifically designed for offline production of digitally printed brochures in combination with the booklet-making units SPF-200A, SPF-200L, StitchLiner 5500, as well as additional optional peripheral devices. The sheets are fed individually, checked, collated, and delivered in sets to the subsequent finishing unit. Mark reading ensures reliable collation and enables the production of brochures with varying page counts.
Key features:
- Maximum flexibility at an extremely attractive price-performance ratio
- Reliable paper feeding via suction belt system
- Extremely short setup times due to fully-automatic format adjustment
- Very easy operation and rapid setup thanks to TOUCH&WORK technology
- Economical processing of small and medium print runs in top quality
Technical specifications:
- Input format for 4-page sheets: min. 203 x 203 mm, max. 610 x 356 mm (dependent on downstream machine)
Djdpfx Adoxw Th Hemscb
- Paper weight: 50 – 160 gsm (plain paper) / 70 – 160 gsm (coated paper)
- Loading capacity: max. 620 mm
- Speed A3 format: max. 25,000 sheets/hour
- Speed A4 format: max. 35,000 sheets/hour / max. 45,000 sheets/hour (landscape)
- Weight: 782 kg (with FC-200A front trimmer)
- Machine dimensions: 960 mm x 1,050 mm x 936 mm (LxWxH)
- Power supply: 400 V, 1.8 A, 1.0 kW
All-round carefree package
We take care of everything: from secure packaging and transport to customs clearance.
Sustainable and economical
Choose a pre-owned machine and gain twice: protect the environment and your budget. Despite possible signs of previous use, you receive a quality product at an attractive price.
Küçük ilan
Volkach
2.313 km
SPF-200L FC-200L | VAC-60a/m/c | 2015 | 4,7 Milyon
HorizonSPF models
HorizonSPF models
Ara
Durumu: kullanılmış, Üretim yılı: 2015, Horizon Brochure Production Line SPF-200L, FC-200L, used
The Horizon brochure production line with models SPF-200L and FC-200L is a state-of-the-art, modular solution for the efficient production of saddle-stitched brochures – including A4 landscape format. This system is suitable for both offset and digital printing and is specifically designed for small to medium print runs. Thanks to the combination of the brochure stitcher (SPF-200L) and front trimmer (FC-200L), the line offers maximum flexibility and productivity in post-press operations.
Dcedpjxw S Ncofx Admob
Key Features
- Automated Settings: All format and production parameters are automatically set via a large, intuitive colour touchscreen – including fold roller gap.
- A4 Landscape Capability: The SPF-200L enables the production of brochures in A4 landscape format, making it particularly versatile.
- High Speed: Up to 4,000 brochures/hour when stitching (3,500 in landscape format).
- Flexible Configuration: Can be combined with other Horizon feeders and digital print feeders for hybrid production lines.
- Versatile Formats: Processes formats from at least 148 x 120 mm up to a maximum of 610 x 350 mm (SPF-200L).
- Strong Wire Processing: Various stitching heads available for different wire thicknesses and loop stitching.
- Easy Operation: Large touchscreens on all main modules for quick setup and error diagnosis.
Technical Specifications
- SPF-200L Format Range (min-max): min. 180 x 105 mm, max. 610 x 350 mm
- SPF-200L Speed: up to 4,000 cycles/h (3,500 cycles/h landscape)
- SPF-200L Special Features: A4 landscape, fully automatic
- FC-200L Format Range (min-max): Front trimmer, integrated
- FC-200L Special Features: Final trim
- Brochure Thickness: up to 100 pages (depending on paper)
- Weight SPF-200L with FC-200L: approx. 831 kg
- Machine Dimensions SPF-200L with FC-200L: 4,271 x 810 x 1,250 mm (L x W x H)
- Power supply: 230 V, 5.3 A; 1.0 kW (SPF-200L)
All-Inclusive Package
We take care of everything: from secure packaging and transport to customs clearance. On request, we can also provide you with a tailor-made leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: protect the environment and your budget. Despite possible signs of use, you get a quality product at an attractive price.
Küçük ilan
Volkach
2.313 km
Hohner dikiş kafası 52/8
Hohner52/8
Hohner52/8
Ara
Durumu: kullanılmış, Teklif şunlardan oluşmaktadır:
1x Hohner 52/8 zımbalama kafası
her kitapçık hazırlayıcı / tel dikiş makinesi ile uyumlu
- Ağırlık: 8,7kg
Talep üzerine aşağıdaki öğeleri sizin için organize edebiliriz:
Dsdpfxsxwly Us Admjcb
Gümrük işlemleri dahil paketleme, yükleme, nakliye (gemi veya uçakla)
Kiralama teklifi alma
Küçük ilan
Emskirchen
2.262 km
Toplama Tel Dikiş Makinesi / Sırt Dikiş Makinesi
Müller MartiniBravo-Plus Amrys
Müller MartiniBravo-Plus Amrys
Ara
Durumu: kullanılmış, Toplayıcı / Sırt Dikiş Makinesi Müller Martini Bravo Plus Amrys
Yıl: 2007 – Seri No: MMZO 1 306 445 – Çalışma süresi: 7.100 saat
PLC Ekran Kontrollü – Maks. hız: 14.000 çevrim/saat
Ebat (kesilmemiş): maks. 320 x 480 mm – (kesilmiş): min. 105 x 148 mm – Ürün kalınlığı maks. 5 mm
6 adet besleyici Tip 0370.0458 – Seri No: MMZO 1 306 445
Kapak besleyici Tip 1529.0416 – Seri No: NN35997/ZO1306447
Çift tabaka/kalınlık kontrolü / Semko Kalınlık Kontrolü Tip 0333.0435
Dikiş ünitesi Bravo Plus Tip 0380.0450 – Seri No: MMZO 1 306 445
Dodpsxvqvxefx Admecb
Üç bıçaklı kesici 0449.0435 – Seri No: MMZ0 1 306 445
Bant çıkışı Müller Martini 1564.0400
Tüm kullanım kılavuzları dahildir
WhatsApp – MS Zoom – Telegram üzerinden online video ile inceleme
Stokta: Emskirchen/Nürnberg – Hemen teslim – Test edilebilir
Küçük ilan
Volkach
2.313 km
Horizon SPF-200L FC-200L VAC-600Ha 2x VAC-600Hm VAC-600Hc | 2022 | 950000
HorizonSPF models
HorizonSPF models
Ara
Durumu: kullanılmış, Üretim yılı: 2022, Horizon Brochure Production Line SPF-200L, FC-200L, VAC-600Ha, VAC-600Hm, VAC-600Hm, VAC-600Hc
The Horizon brochure production line, featuring the SPF-200L and FC-200L models, is a state-of-the-art, modular solution for the efficient production of saddle-stitched brochures—including A4 landscape format. This system is suitable for both offset and digital printing and is specifically designed for small to medium print runs. By combining collators (VAC-600), booklet maker/stitcher (SPF-200L), and face trimmer (FC-200L), the line offers maximum flexibility and productivity for finishing operations.
Key Features
- Automated Settings: All format and production parameters are automatically set via a large, intuitive color touchscreen—including fold roller gap adjustment.
- A4 Landscape Capability: The SPF-200L enables production of brochures in A4 landscape format, offering enhanced versatility.
- Modular Expansion: The VAC-600a/c collator towers are modularly expandable from 6 to 60 stations, supporting non-stop operation through dual-cycle and insert programs.
- High Speed: Up to 9,500 cycles/hour for collating and up to 4,000 brochures/hour for stitching (3,500/hour in landscape format).
- Flexible Configuration: Compatible with other Horizon feeders and digital print feeders for hybrid production lines.
- Versatile Formats: Handles formats from as small as 148 x 120 mm up to 610 x 350 mm (SPF-200L).
- Robust Wire Processing: Various stitching heads available for different wire sizes and loop stitching.
- Easy Operation: Large touchscreens on all main modules ensure quick setup and error diagnostics.
Technical Specifications
- SPF-200L format range (min-max): min. 180 x 105 mm, max. 610 x 350 mm
- SPF-200L speed: up to 4,000 cycles/h (3,500 cycles/h landscape)
- SPF-200L features: A4 landscape, fully automatic
- FC-200L format range (min-max): integrated face trimmer
- FC-200L features: Final trimming
Dcedoxtag Iopfx Admsb
- VAC-600a/c format range (min-max): min. 148 x 120 mm, max. 500 x 350 mm
- VAC-600a/c speed: up to 9,500 cycles/h
- VAC-600a/c number of stations: 6–60
- VAC-600a/c features: Modular expansion, non-stop
- Booklet thickness: up to 100 pages (depending on paper)
- VAC-1000 loading capacity: 55 mm per station
- Weight SPF-200L with FC-200L: approx. 831 kg
- Machine dimensions SPF-200L with FC-200L: 4,271 x 810 x 1,250 mm (L x W x H)
- Power supply: 230V, 5.3A; 1.0 kW (SPF-200L)
All-Inclusive Service Package
We handle everything: from secure packaging and transport to customs clearance. If you wish, we can also prepare a tailor-made leasing offer.
Sustainable and Cost-Effective
Choose a pre-owned machine and benefit in two ways: protect the environment and save your budget. Even with possible signs of use, you receive a quality product at an attractive price point.
Küçük ilan
Volkach
2.313 km
Horizon Stitchliner 5500 | VAC-60a | VAC-60m | VAC-60c | 2007 | 10 Milyon
HorizonStitchliner 5500
HorizonStitchliner 5500
Ara
Durumu: kullanılmış, Üretim yılı: 2007, Horizon Stitchliner SL-5500
The Horizon Stitchliner 5500 is a powerful all-in-one solution for brochure production.
It combines collating, creasing, folding, stitching, and three-side trimming into a single, efficient process.
With its user-friendly operation, high productivity, and versatility, this system offers numerous benefits for print shops, binderies, and on-demand print environments.
This Stitchliner 5500 includes the following components:
- VAC-60a, VAC-60m, and VAC-60c collating towers
- SA-40 accumulator
- ST-40 stacker
- ACF-30 collating and folding unit
- SPF-30S saddle stitcher
- HTS-30 three-knife trimmer
Key features:
- 18 stations
- U-shaped configuration: Efficient use of space and easy monitoring
- Inline production from collation to the finished product
- Variable data processing: The system can handle personalized prints and varying page counts, making it ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen interface for user-friendly operation, even for less experienced operators
Specifications:
- Sheet sizes: max. 500 x 350 mm, min. 148 x 120 mm
- Paper weight: 40–350 gsm
- Processing thickness: 8–200 pages (max. 5 mm staple spine thickness)
- Production speed: Up to 5,500 brochures/hour
- Stitching distance: 60–150 mm
Technical details:
- Trimming (untrimmed): max. 350 x 250 mm, min. 140 x 103 mm
- Trimming (trimmed): max. 312 x 230 mm, min. 120 x 95 mm
- Power supply: 400V / 50Hz
- Space requirement: min. 5,709 x 3,240 mm
- Total weight: approx. 2,120 kg
All-Inclusive Package
We take care of everything: from secure packaging and transport to customs clearance. Upon request, we can also provide you with a tailored leasing offer.
Sustainable and economical
Dcodpfx Adoxr Aipjmeb
Opt for a pre-owned machine and enjoy double the benefits: protect the environment and your budget. Despite possible signs of use, you will receive a quality product at an attractive price.
