Josef Meeth Fensterfabrik GmbH & Co.KG

Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2000, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 94464, X ekseni hareket mesafesi: 3.400 mm, Y ekseni hareket mesafesi: 1.300 mm, Z ekseni hareket mesafesi: 155 mm, TECHNICAL DETAILS Travel range X-axis: 3,400 mm Travel range Y-axis: 1,300 mm Travel range Z-axis: 155 mm Itodpfx Acjxx Rz To Esp Number of working zones: 2 Drilling Head Vertical spindles X-axis: 10 Vertical spindles Y-axis: 12 Horizontal spindles X-axis: 6 Horizontal spindles Y-axis: 2 MACHINE DETAILS Electrical Data Power: 20 kW Voltage: 380 V Current: 25 A Frequency: 50 Hz EQUIPMENT Vertical electrospindle with C-axis vector, automatic tool change system, ISO 30 taper Automatic tool changer with three side-mounted positions for aggregates Automatic chain tool changer with 20 positions 8 manually adjustable bars with suction cup holders and display 3 manually adjustable suction cups per bar 8 pneumatic bakelite bars for panel lifting Perimeter safety guard Motorized conveyor for chip extraction Vacuum pump

Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2007, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 0-201-09-5124, X ekseni hareket mesafesi: 6.000 mm, Y ekseni hareket mesafesi: 1.650 mm, çalışma yüksekliği: 60 mm, TECHNICAL DETAILS Travel of X-axis: 6,000 mm Travel of Y-axis: 1,650 mm Travel of Y-axis (during milling): 1,750 mm Maximum working height for trimming: 60 mm Maximum applicable edge height: 65 mm Minimum inner radius: 30 mm Tool changer positions: 18 Itodpfx Aoxx Nnxsc Eop Unit blade diameter: 200 mm (max.) MACHINE DETAILS Vertical electrospindle (C-axis vector, automatic tool changer, taper type HSK F63): 11 kW Drilling head power: 4 kW Vertical drilling spindles in X-axis: 11 Vertical drilling spindles in Y-axis: 6 Horizontal drilling spindles in X: 6 Electrical Data Voltage: 400 V Current: 39 A Frequency: 50 Hz Current: 50 A Control voltage: 24 V EQUIPMENT Numerical control with WoodWop software Adjustable panel support bars for vacuum cup positioning Pneumatic bars for loading and unloading assistance system Adjustable Schmalz-type vacuum cups Laser system for vacuum cup positioning Independent edge banding unit with 360° rotation Glue pot and premelter for granular EVA adhesive Applicable edge material on rolls: PVC / ABS 0.4 – 3 mm Rubberized pressure roller + panel preheating lamp Edge cutter Combined trimmer-edge unit Edge holder magazine Chip extraction system with motorized conveyor Air conditioning unit for cooling and cleaning of machine control Automatic lubrication system Vacuum pump

Durumu: kullanılmış, Üretim yılı: 2004, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: AL1/003895, X ekseni hareket mesafesi: 2.949 mm, Y ekseni hareket mesafesi: 1.353 mm, giriş voltajı: 400 V, Working area: 2500 x 1240 mm Travel length Z-axis: 200 mm Pass-through height: 180 mm Drilling unit: Drilling head with 10 + 4 spindles 6 individually selectable vertical spindles in X 4 individually selectable vertical spindles in Y 2 horizontal spindles in X (1+1) 2 horizontal spindles in Y (1+1) Speed: 4000 rpm Power: 2.2 kW Grid pitch: 32 mm Drill chuck: M10 with 11 mm pilot Extraction connection: D=160 mm Milling spindle: Tool holder HSK 63F Speed 1,500 – 24,000 rpm continuously variable via inverter Motor power 6.6 kW (9 HP from 12,000 rpm (S1)) Clockwise / counterclockwise rotation Ceramic bearings Prepared for automatic angular gearbox changeover Grooving saw unit: Fixed in X-direction (longitudinal) Power 2.2 kW (3 HP) Speed: 6000 rpm Max. saw blade diameter: 160 mm Saw blade thickness: approx. 3.2–6 mm Saw blade bore: 30 mm Extraction connection: D=200 mm Worktable: 4 supports 900 mm, infinitely manually adjustable in X 12 vacuum cups, round, D=110 mm, infinitely adjustable in Y (2 per support) 2 stops in X (1x left / 1x right) 1 stop in Y per support (6 total) Additional right stop with roller conveyor to extend X-axis to 3,230 mm (2 clamping positions) Retractable reference stops controlled by CNC Pendulum machining (2 working zones) Further technical data: Total power consumption max.: 16 kW Recommended fuse: 64 A Power supply: 400 V (50 Hz) Compressed air: 7 bar System pressure: 10 bar Compressed air consumption: 150 nl/min Central extraction port with flap control: D=250 or D=300 mm Extraction velocity: 30 m/sec. Air consumption: 3400 m³/h Vacuum: 3000 Pascal Machine weight: approx. 2700 kg Space requirement: approx. 6,400 x 2,970 Isdpfxjxxik He Ac Eetp Shipping dimensions: 4,400 x 2,200 x 2,500 mm

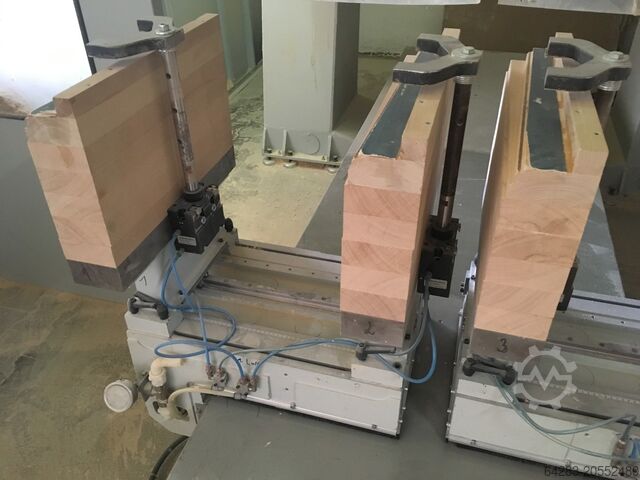

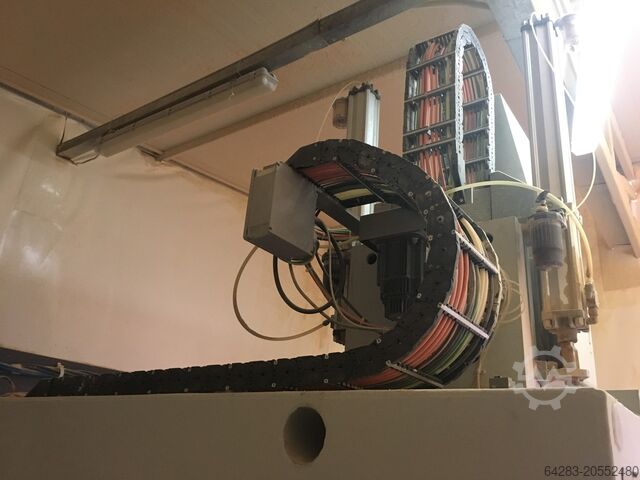

Durumu: kullanılmış, Üretim yılı: 2007, The SHARP double-table machining center with 6 or more interpolated axes features an extremely rigid gantry frame and is especially suitable for producing components for chairs, furniture, tables, beds, shells, staircases, and musical instruments. • 4 motors with 9.6 kW each • Capable of machining elements up to 145 cm in width and 200 cm in length • Technically efficient machine with PITAGORA simulator and anti-collision program, AlpaCAM software, and OSAI control system • Year of manufacture: 2007, Machine no. 445 • Required hall dimensions (building dimensions): width 3.7 m (from operator side) x length (depth) x 4.9 m Itedpfxjxxh Has Ac Eop • Equipment: a) 4 upper tables for securing elements/beams b) 4 lower tables for securing elements/beams c) Vacuum pump d) Bars 113 cm in length for vacuum/assembly/positioning cylinders – 4 pieces

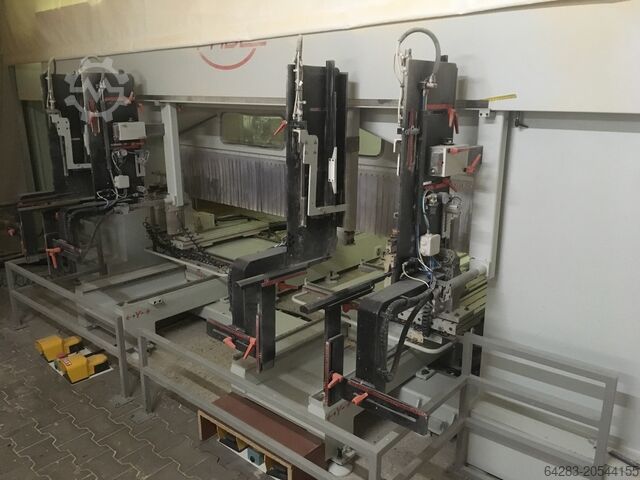

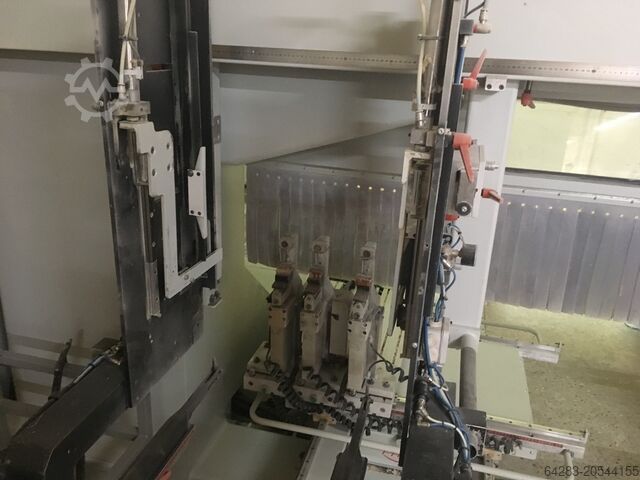

Durumu: kullanılmış, Üretim yılı: 2014, Maksimum verimlilik için iki kafa ve iki otomatik besleyici. Hopperfeeder’ların (Pade patenti) özel tasarımı, parçaların operatörün önünde hiçbir bariyer olmadan manuel yüklenmesini sağlar. Tutucu magazini, parçaların manuel yüklenmesine imkân vermek için kolayca yana 'park' edilebilir. Pneumatik sıkma tertibatları, aşağıdan yukarıya kilitlemeli olup, TANDEM pod’lar üzerine kolaylıkla yerleştirilebilir ve hızlıca manuelden otomatik konfigürasyona geçiş sağlar. Temel Özellikler: - 1, 2 veya 4 mil arasından seçim yapılabilen çalışma kafaları - Podlu, vakumlu veya isteğe göre kombine ve ölçüleri özelleştirilebilen 2 çalışma masası - Tekli veya çoklu sıkma sistemleri ve CNC torna ekleme imkânı - Magazili otomatik iş parçası yükleyicileri - E-LAB programlama sistemi, otomatik yörünge yöneticisi Ana Fonksiyonlar: - Oluk frezeleme - Delme - Frezeleme - Kesme - Zıvana frezeleme Ijdpfxsxw Ty Ne Ac Ejtp

Durumu: mükemmel (kullanılmış), Üretim yılı: 2013, Fonksiyonellik: tamamen fonksiyonel, Manufacturer: BACCI Model: EVO JET Machine type: CNC Machining Centre Year of manufacture: 2013 Itjdoxw Nv Hspfx Ac Eep The EVOLUTION JET is an extremely versatile machining centre, both in terms of size adaptation and the number of worktables, on which equipment for manual, semi-automatic, or fully automatic loading and unloading can be installed. Ideal for simultaneous machining of all components required for chair or furniture assembly on one machine. Technical data: - Fully digital NC axes: 12 - Linear interpolated axes: 3 + 3 or more - Interpolated rotary axes: 2 + 2 - Longitudinal X-axis: 3,400 mm or more - Cross Y-axis: 1,300 mm - Head Y-axis (transverse): 1,000 mm - Vertical Z-axis: 750 mm - A-axis: unlimited - C-axis: +/- 180° - 5-axis spindle - CNC automatically adjustable worktables - Special material clamping system - Rack-type gripper - OSAI machine control - Electric cabinet cooling - Independent Z axes: 2 - Number of routing spindles: 4 - Max spindle speed: 24,000 rpm - Cantilever construction - 2 tables - Belt feed loading - Roller conveyor for external transport - Fully enclosed cabin - CE marking

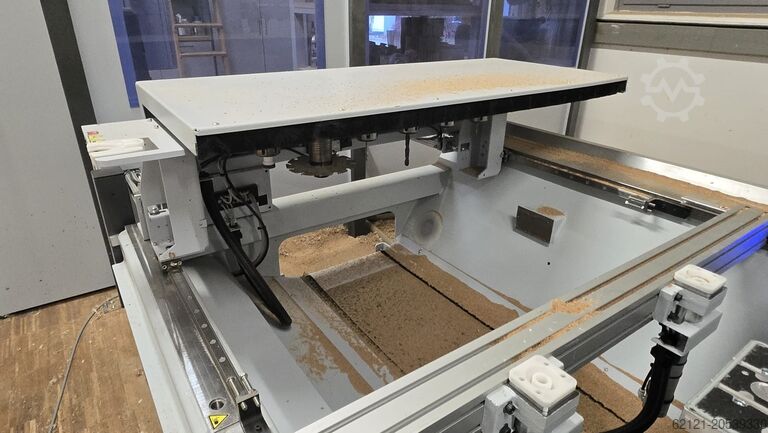

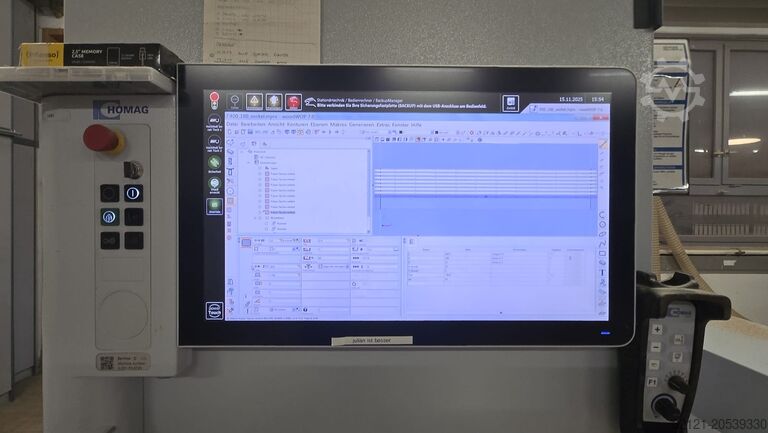

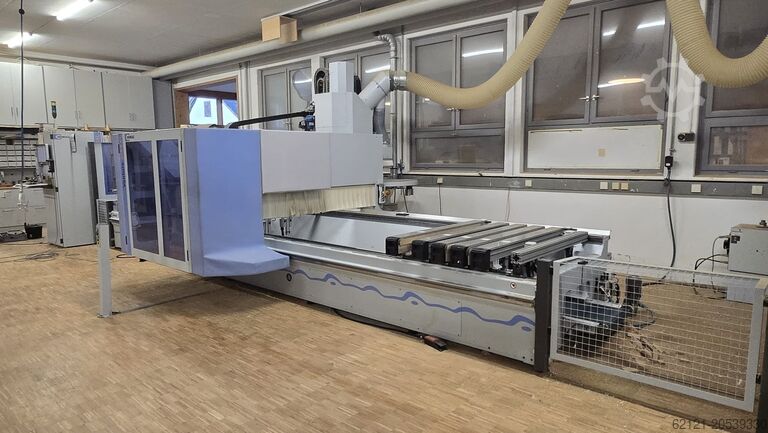

Durumu: iyi (kullanılmış), Üretim yılı: 2014, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 0-201-76-6720, X ekseni hareket mesafesi: 6.000 mm, Y ekseni hareket mesafesi: 1.550 mm, Z ekseni hareket mesafesi: 270 mm, Donanım: devir hızı sonsuz değişken, dokümantasyon / kılavuz, talaş konveyörü, BMG311 VENTURE316XXL 6 m machine Itodpfx Acjxw H Tcj Eop 10 consoles 6 rear stops 6 front stops Vacuum system 2 x 90/108 m³/h (50/60 Hz) LED position display system 5-axis main spindle 10 kW Drive5C 5-axis spindle programming WoodWop 18-position disc changer underneath Drilling head with 21 spindles: V17/H4/S0/90° LEFT SAFETY FENCING VIEWING ELEMENT FENCING RIGHT VENT.+BMG+B200/300 CHIP CONVEYOR RIGHT POWERCLAMP PNEUMATICS PACKAGE FOR K+AP TABLE PERFORMANCE PACK FOR DRIVE5C 9-POSITION LINEAR TOOL CHANGER FOR BMG311 WITHOUT FLEX5 TOOL MEASURING PROBE CHANGER VIBRATION VISUALIZATION PROCESSING SPINDLE collisionControl BARCODE READING SYSTEM PACKAGE VENTURE FOR 1D CODES HOMAG GROUP CONTROL SYSTEM POWERTOUCH WOODWOP CAD PLUGIN WOODWOP CAM PLUGIN PROFESSIONAL MACHINE WOODMOTION

Durumu: mükemmel (kullanılmış), Üretim yılı: 2010, Fonksiyonellik: tamamen fonksiyonel, X ekseni hareket mesafesi: 3.450 mm, Y ekseni hareket mesafesi: 1.240 mm, Z ekseni hareket mesafesi: 400 mm, Technical details Working area X/Y/Z: 3,450 x 1,240 x 400 mm (Y-axis optionally +110 mm) Machine weight: approx. 4,500 kg Connected load: 20 kVA / 50 A Compressed air connection: 6–7 bar, 1/2" Compressed air consumption: 150 Nl/min Extraction connection: Ø 250 mm Air consumption: 3,400 m³/h Air velocity: 30 m/s Iodpexwlmzofx Ac Eotp Construction & Design Solid monoblock construction for maximum rigidity and precision Triangular machine bed with scrap collecting tray and ground clearance from 2.5 m Robust gantry with 445 mm guide separation Ball screw drives for precise axis movement Enclosed, dynamic drive units Z-axis with pneumatic compensation system for exact depth control Control & Software NUM CNC control with integrated INTEL Windows Power-PC Digital drive via fiber optic cables Color display, horizontal keyboard, and mouse WOP programming system XILOG PLUS Windows-oriented user interface Parametric programming with graphical tool management 3D real-time simulation Error diagnostics system with help photos Direct parameter entry during machining Interfaces: DXF / ASCII / PGM / ISO Machine Equipment 5-axis electrospindle, 15 HP (HSK 63F) Speed range 900–20,000 rpm, liquid cooling, ceramic bearings Tool magazine Toolroom 12 – 12 positions, center distance 110 mm 18-spindle boring head with variable speed (4,000 rpm) Traverse system (6 pieces, each L=1300 mm) with pneumatic block suction cups Vacuum pump 100 m³/h Pneumatic lifting device for heavy workpieces Integrated waste conveyor belt in the machine bed CE safety device BUMPERS with person protection sensors Special Features Maximum machining flexibility Efficient pendulum processing with dual-station system Extremely robust, low-vibration design User-friendly control with real-time simulation Highest machining accuracy with short cycle times

Durumu: mükemmel (kullanılmış), Üretim yılı: 2004, Fonksiyonellik: tamamen fonksiyonel, Maschinennummer: 559969 Hersteller: HOMAG Modell: PROFI BAZ 723/42/18/KC Baujahr: 2004 Technische Daten: Gewicht ca.: 10.000 [kg] Steuerung: PC85 Abmessungen (L x B x H) ca.: 39.000 x 3.200 x 3.200 [mm] Itsdpfx Acjxvy Uke Eep C-Achse: ja Software: WoodWOP Bearbeitungslänge X-Achse: max. 4.200 [mm] Bearbeitungsbreite Y-Achse: max. 2.075 [mm] Hauptspindel: 2x 14,5 [kW] Werkzeugwechsler: 2x 18-fach Vakuumpumpe: 2x 100 [cbm/h] Kantenleimaggregat: ja, 360° Verfahrgeschwindigkeit max. X-Achse: 80 [m/min] Verfahrgeschwindigkeit max. Y-Achse: 60 [m/min] Verfahrgeschwindigkeit max. Z-Achse: 40 [m/min] Beschreibung: Hochwertig ausgestattetes, technisch sehr gut gewartetes HOMAG PROFI BAZ 723/42/18/KC CNC-Bearbeitungszentrum in Portalbauweise mit 360° Kantenleimaggregat, zwei Hauptspindeln mit C-Achse, automatisch positionierbaren Konsolentischen und HOMAG Optimat TBP 370 Vakuum-Beschickungssystem in Portalbauweise. Der ursprüngliche Neupreis lag bei ca. 620.000 EUR. Technische Daten und Ausstattung der HOMAG Profi BAZ 723 CNC: - Werkstücklänge im Einzelbetrieb max. 4.200 mm - Werkstücklänge Fräser Ø 25 mm bei Pendelbetrieb max. 2.040 mm - Werkstücklänge Leimung bei Pendelbetrieb max. 1.850 mm - Werkstückbreite (Fräser Ø 25 mm) max. 2.075 mm - Werkstückbreite (Leimung) max. 1.950 mm - Werkstückbreite (alle Aggregate) max. 1.850 mm - Konsolentisch KC-System, je 2 Stück links/rechts, automatische Positionierung der Konsolen und Vakuumspannern - Erste Hauptspindel mit C-Achse: Motor 14,5 KW Drehzahl 0 – 24.000 U/min Werkzeugwechsler 18-fach (ohne Werkzeuge, HSK-Aufnahmen und Aggregate!) Bohrkopf 17 Spindeln vertikal (7 Spindeln X-Richtung, 11 Spindeln Y-Richtung) Bohrkopf 4 Spindeln horizontal 4-SP + Sägew. 0/90° Blasdüse pneumatisch am Träger - Zweite Hauptspindel mit C-Achse: Motor 14,5 KW Drehzahl 0 – 24.000 U/min Werkzeugwechsler 18-fach (ohne Werkzeuge, HSK-Aufnahmen und Aggregate!) Bohrkopf 17 Spindeln vertikal (7 Spindeln X-Richtung, 11 Spindeln Y-Richtung) Bohrkopf 4 Spindeln horizontal 4-SP + Sägew. 0/90° Blasdüse pneumatisch am Träger - Kantenleimaggregat 360° Leimauftrag mit Stoßverleimung, rechts am Portal mit Y-Achsen-Antrieb montiert Antriebsspindel mit C-Achse Kantenhöhe max. 65 mm Kantenstärke 0,4 – 3 mm Vorschneideeinheit und 2-fach Rollmagazin - Späneförderer mit aufwärtsführendem Förderband für automatische Entsorgung (Hinweis: Die Werkzeuge, HSK-Aufnahmen und Aggregate für den Werkzeugwechsler sind nicht im Lieferumfang enthalten. Für den Transport der demontierten Maschine ist ein HOMAG-Transportgestell erforderlich.) Liefer- und Zahlungsbedingungen Lieferung: ab Fundament, unverpackt Zahlung: 100% vor Verladung Gewährleistung: Ohne jegliche Gewährleistung

Durumu: işlem için hazır (kullanılmış), Üretim yılı: 2003, çalışma saatleri: 15.000 h, Fonksiyonellik: tamamen fonksiyonel, X ekseni hareket mesafesi: 2.500 mm, Y ekseni hareket mesafesi: 1.100 mm, Z ekseni hareket mesafesi: 110 mm, hızlı travers X ekseni: 40.000 m/dak, hızlı tablası Y ekseni: 40.000 m/dak, hızlı ilerleme Z ekseni: 25.000 m/dak, besleme uzunluğu X ekseni: 2.700 mm, y ekseni ilerleme uzunluğu: 1.200 mm, Z ekseni ilerleme mesafesi: 180 mm, nominal (görünür) güç: 10 kVA, tork: 24.000 Nm, kontrolör üreticisi: esa, kontrolör modeli: kvara 6, iş parçası uzunluğu (maks.): 2.600 mm, iş parçası genişliği (maks.): 1.100 mm, iş parçası yüksekliği (maks.): 110 mm, Freze agregası 6,6 kW HSK 63 F Takım değiştirme 7 pozisyon Hızlı takım değiştirme 4 pozisyon Matkap kafası 14 matkap için Ağır iş parçaları için yükleme yardımcıları X ekseninde testere 3 kW Vakum pompası 100 m³/dk Çalışma masası – uzunluk: 2500 mm Iedpfsxvr Ucjx Ac Eotp Çalışma masası – genişlik: 1100 mm Minimum devir: 1500 dev/dk Maksimum devir: 24000 dev/dk X, Y, Z eksenlerinde maksimum hareket: 2700 x 1300 x 250 mm Freze milleri sayısı: 1 Motor gücü: 6,60 kW Toplam ağırlık: 2700 kg Makine ölçüleri (U x G x Y): 50000 x 2400 x 2500 mm Sadece 14.700 çalışma saati

Durumu: kullanılmış, Üretim yılı: 2014, CNC controlled %-axis machining center in gantry design, for milling and drilling workpieces made of wood or wood-based materials. Travel range Z-axis: 450 mm Console table: 8 consoles Vacuum system Ijdpfoxvaymex Ac Eotp Woodwop package for AV-PC

Durumu: kullanılmış, Üretim yılı: 2006, Bu Thorwesten CNC Linear İşleme Merkezi PBZ-2, endüstriyel açık artırmamızda / makine müzayedemizde, iflas müzayedesi kapsamında Wietec Fenster GmbH'nin makine parkı, atölye donanımı ve römorklarıyla birlikte çevrim içi olarak satışa sunulmuştur. Bu ve birçok diğer ekipmanı platformumuzda bulabilirsiniz. Isdpfx Acexu Tvlo Ejtp

Durumu: kullanılmış, Üretim yılı: 1991, Fonksiyonellik: denenmemiş, İşleme alanı: 3130 x 1100 mm Maksimum iş parçası kalınlığı: 55 mm Emiş ağzı çapı: 200 mm Isdpfx Acexu Eyvs Ejtp Makine ölçüleri (U x G x Y): yaklaşık 5000 x 3000 x 1800 mm Ağırlık: yaklaşık 3500 kg

Durumu: iyi (kullanılmış), BACCI DOUBLE JET + KUKA Robot The BACCI DOUBLE JET with KUKA robot is a highly advanced, automated CNC machining center designed for the processing of wood and wood-based materials. The KUKA robot works in collaboration with the machine’s integrated feeder, automatically loading material for machining. This significantly increases efficiency and minimizes manual intervention. After milling and sanding, the robot automatically unloads the finished parts and places them onto pallets, optimizing production logistics and enabling uninterrupted operation without manual reloading. Iodpfxjxr Ddus Ac Eetp This system ensures seamless integration of the robot into the BACCI DOUBLE JET, which is equipped with two machining heads and twelve interpolated axes, allowing for simultaneous and precise processing of components. Automated material loading and unloading, along with the integrated feeding system, boost production efficiency and repeatability, reduce labor costs, and enhance operator safety. The machine is mainly used in the furniture and joinery industry, where high standards of quality and efficiency are required.

Durumu: iyi (kullanılmış), BACCI DOUBLE JET + KUKA Robot The BACCI DOUBLE JET with KUKA robot is a highly advanced, automated CNC machining center designed for the processing of wood and wood-based materials. The KUKA robot works in collaboration with the machine’s integrated feeder, automatically loading material for machining. This significantly increases efficiency and minimizes manual intervention. After milling and sanding, the robot automatically unloads the finished parts and places them onto pallets, optimizing production logistics and enabling uninterrupted operation without manual reloading. Itedoxr Dcwspfx Ac Eop This system ensures seamless integration of the robot into the BACCI DOUBLE JET, which is equipped with two machining heads and twelve interpolated axes, allowing for simultaneous and precise processing of components. Automated material loading and unloading, along with the integrated feeding system, boost production efficiency and repeatability, reduce labor costs, and enhance operator safety. The machine is mainly used in the furniture and joinery industry, where high standards of quality and efficiency are required.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2009, Fonksiyonellik: tamamen fonksiyonel, 4-axis CNC machining center with console table and gluing unit Manufacturer: IMA Model: BIMA 400 V Year of manufacture: 2009 8 manually adjustable supports in X, 3 vacuum suction cups per console, vacuum pump 100 m³/h -2* vacuum connection for templates LED display for suction cup position indication Working range X: 200 – 6150 mm Working range Y: 0 – 1600 mm for milling/drilling, with gluing up to 1525 mm Working range Z: 12 – 125 mm (clearance 150 mm) 14 vertical drilling spindles horizontal drilling and grooving saw unit swivels 90° milling spindle 11 kW / 7.5 kW up to 24,000 rpm with C-axis 360° interpolation, liquid circulation cooling — 18-position tool changer mounted on Y-support, traveling Gluing unit VT 100, 4-sided/contour, rotation range 740 degrees with double roller magazine, automatic granulate feed Adapter aggregates: — Saw, fixed at 90° — 5-axis saw/drill/milling head Vario NC — Horizontal milling unit (corner notching) — Flush milling and profile scraper with extension for flat scraper Control system ICOS open with 17″ TFT ImaWop 6.0 incl. MDC and production list software Chip conveyor belt Itjdjxrltkopfx Ac Ejp Side safety guards and front safety mats; Rear: requires wall installation or separate safety guarding

Durumu: kullanılmış, Üretim yılı: 2017, Numerical control: Xilog Maestro mobile console, TECPAD.\n\nWorking area on the X-axis: 3680 mm\nWorking area on the Y-axis: 1380 mm\nWorking area on the Z-axis: 250 mm\n\nNumber of work zones: 2\nBar worktable with 6 adjustable rails of 1300 mm each.\nStart clamp configuration: 4 pneumatic Bakelite bars for lifting the panel\n3 adjustable suction cups with line laser for virtual zero-point positioning on the Y-axis\n1 prisma KS 5-axis vertical electrospindle with automatic tool changer, 12 kW, 24,000 rpm, HSK 63F, right and left rotation\n\nAutomatic tool changer system with 10 positions located at the front of the machine, HSK-type taper\nAutomatic tool changer system with 16 positions located at the rear of the machine, HSK-type taper\n\nDrilling head F 12L with the following spindle arrangement:\n- 8 vertical spindles on the X- and Y-axis\n- 2 horizontal spindles on the X-axis\n- 2 horizontal spindles on the Y-axis\n\nSaw blade unit for grooving, 1 unit\n\nPro-Speed safety system\nFront bumper protection and safety system\nAutomatic lubrication system\n250 m³ vacuum pump Ijdpfsxrcqgex Ac Eetp

Durumu: kullanılmış, Üretim yılı: 2007, çalışma saatleri: 18.000 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: 0-250-21-0442, X ekseni hareket mesafesi: 3.850 mm, Y ekseni hareket mesafesi: 2.015 mm, Z ekseni hareket mesafesi: 525 mm, hızlı travers X ekseni: 80 m/dak, hızlı tablası Y ekseni: 60 m/dak, hızlı ilerleme Z ekseni: 20 m/dak, besleme uzunluğu X ekseni: 3.850 mm, y ekseni ilerleme uzunluğu: 2.015 mm, Z ekseni ilerleme mesafesi: 80 mm, X ekseni ilerleme hızı: 80 m/dak, Y ekseni ilerleme hızı: 60 m/dak, Z ekseni ilerleme hızı: 20 m/dak, Donanım: dokümantasyon / kılavuz, Sale of a CNC machining center that is fully operational and has been completely overhauled. Homag Weeke Venture 5 Optimat BHC 550 Comprehensive refurbishment was carried out in 2024. The main spindle has been remanufactured. In addition, a new UPS and a new vacuum pump were installed. The frequency inverter was also replaced. The offer also includes a Flex 5 unit (which is not required for standard machining operations); however, this unit is not functional at present—though a repair quote is available. Data sheet for the Weeke Venture 5 Optimat BHC 550 (Year of manufacture: 2007) Technical Main Data Dimensions & Weight Length: approx. 6,350 mm | Width: approx. 2,550 mm | Height: approx. 2,450 mm | Weight: approx. 6,500 kg • Working area (X, Y, Z): X-axis approx. 3,250 mm | Y-axis approx. 1,300 mm | Z approx. 150 mm • Main spindle: Power: 12 kW, liquid-cooled Tool holder: HSK-F63 Continuously variable speed, programmable from 1,250 to 24,000 rpm • Drilling units & milling: - Vertical: 25 spindles (32 mm pitch), depths up to 38/55 mm, tool holder Ø 10 mm, max. drill Ø 35 mm - Horizontal: 4 spindles in X-direction, 2 in Y-direction (32 mm pitch), depths up to 38 mm, max. drill Ø 20 mm - Grooving/Sawing unit: swivels 90° in XY direction, cutting depth up to 30 mm, up to 7,500 rpm, max. tool diameter 1 mm • Workpiece clamping & table: - Pod-and-rail table or console table with 6 adjustable supports in X direction, LED position display - Suction cups: e.g., 12 vacuum cups or various tubeless types - Vacuum pump: approx. 100 m³/h • Tool changer & control system: - Tool changer: 14 positions at front (X direction) and 8 at rear (Y direction) - Control: POWERCONTROL PC 85T (17″ TFT), software WOODWOP 5.0, incl. MDE and production lists • Additional equipment & safety: - FLEX-5 interface for sawing / milling / drilling - Tool-picking function (pick-up), safety mats, safety fence/doors, barcode scanner, etc. Additional technical key data from supplementary sources for the year 2007: • Working area: X ≈ 3,250 mm · Y ≈ 1,220 mm · Z ≈ 125 mm • Tool positions: approx. 16 • Vertical drilling spindles: 12 units • Horizontal drilling spindles: 4 in X, 2 in Y • Main motor: 12 kW, HSK-F63, speed up to 24,000 rpm • Other features: pod-and-rail table, positioning aids, crosshair laser, LED display, HOMAG POWER CONTROL, WOODWOP 5.0 software, safety mats, handheld terminal, UPS, CE certification Ijdpfx Ajxrcf Dec Ejtp

Durumu: iyi (kullanılmış), Üretim yılı: 2012, Fonksiyonellik: tamamen fonksiyonel, CNC machining center with edge banding for contoured workpieces Iedpfxexraimj Ac Eetp Working dimensions for Y1 axis: X-axis: 4,300 mm X-axis pendulum machining: 1,620 mm Y-axis: 1,320 mm Working dimensions for Y2 axis (edge processing): X-axis: 3,300 mm X-axis pendulum machining: 600 mm Y-axis: 1,240 mm Worktable: 8 ATS workpiece supports, each with 3 vacuum cups 8 rear workpiece stops, programmable lowering, integrated in each support 8 workpiece stops, positioned 670 mm from the rear, integrated in each support 2 + 2 lateral workpiece stops 4 removable center stops 6 pneumatic lifting rails, programmable lowering, for positioning heavy workpieces Automatic positioning of workpiece supports and vacuum cups via EPS (Electronic Positioning System) Automatic central lubrication Division of the vacuum system into 2 separate working areas in X direction Auxiliary vacuum system for clamping templates Chip conveyor integrated into the machine table Vacuum pump 90 m³/h Processing head equipment: Mounted on Z2 axis Drilling head BH 26 2L with: 16 vertical drilling spindles, individually selectable 2+2 horizontal drilling spindles, X direction 2+2 horizontal drilling spindles, X direction Grooving saw, 120 mm diameter, fixed in X direction Grooving saw, 120 mm diameter, fixed in Y direction Milling spindle 13.2 kW (11 kW S1 operation), HSK 63 F Mounted on Z1 axis Speed: 1,000 - 24,000 rpm Right and left rotation C axis 360° for adapter units Cleaning nozzle for cleaning the milled edge before the edging process 16-position tool magazine Edge banding unit for workpieces up to 60 mm thick Edgebander CNC-controlled, with 360° continuous rotation Glue application for hot-melt adhesive Double pressure roller, exchangeable and switchable Heating lamp for preheating the edge material Trimming unit for cutting the edge material at an 8° angle to the workpiece edge using circular saw blade Technical data: Plastic edge thickness 0.4 - 3 mm (*) Solid edge thickness 0.4 - 2 mm (*) (Best results with wooden edges with primer from 0.4 - 1.2 mm) Max. edge height: 64 mm Panel thickness min. 14 mm, max. 60 mm Min. internal radius: 18 mm (for edge thickness < 1 mm) Min. internal radius: 30 mm (for edge thickness 2 mm) Minimum panel size for edgebanding: 300 x 300 mm Minimum size for edgebanding interior cut-outs: 350 mm, with plastic edge max. 1 mm thickness and max. panel thickness 18 mm Edge magazine for 2 rolls, positioned outside the machine; this solution restricts pendulum machining. Roll diameter for edge material: 800 mm Safety devices: * Step mats in front of the machine * Safety fence on the right with access door Without tools Control: PC control with BIESSE WORKS ADVANCED Restart after emergency stop BIESSE WORKS office version Units: - Flush/radius milling unit - Combined profile/flat scraper blade unit - Sawing unit

Durumu: kullanılmış, Üretim yılı: 2020, Fonksiyonellik: tamamen fonksiyonel, Wir bieten hiermit dieses gebrauchte Homag Centateq P 110 Flex CNC-Bearbeitungszentrum aus dem Jahr 2020 mit Standort in Polen an. Das Bearbeitungszentrum verfügt über einen Arbeitsbereich von 3100 x 1550 mm und bietet somit ausreichend Platz für die präzise und effiziente Bearbeitung großer Platten. Ausgestattet mit einer leistungsstarken Spindel mit bis zu 7.500 U/min sowie einer zuverlässigen 2,3-kW-Bohr-Einheit gewährleistet diese Maschine exzellente Leistungen beim Sägen, Bohren und Fräsen. Mit der fortschrittlichen Technologie von Homag bietet das Centateq P 110 Flex maximale Flexibilität, Zuverlässigkeit und Produktivität für anspruchsvolle Holzbearbeitungsaufgaben. Ausstattung: - WoodWOP zur grafischen und dialogbasierten Erstellung von CNC-Programmen. - Umfangreiche Programmbibliothek zur Bearbeitung von Konturen, Möbelkorpussen, Arbeitsplatten und Türen. - Mit CAD-Plug-in zur Erstellung von CAD-Konturen und zum Import von CAD-Zeichnungen im DXF-Format. - WOODWOP IMPORT DXF BASIC EINZELPLATZ-LIZENZ. - Schnittstelle zum Übertragen von Zeichnungsdaten aus einem CAD-System im DXF-Format. - Einzelne Zeichenebenen werden entsprechend markiert; damit ist eine automatische Generierung der notwendigen Bearbeitungen aus DXF-Zeichnungen möglich. BARCODE-LESEPAKET. - Produktionsfolgen können durch das Einlesen eines 1D- oder 2D-Barcodes übernommen werden. - Die 'woodScan'-Barcode-Software ermöglicht es, das Steuerungssystem zur automatischen Übergabe von bis zu drei Barcodes vom Lesegerät an das Bearbeitungsprogramm vorzubereiten, z. B. für: Programmname, Zuordnungsmodus, Stückzahl. Itsdpfx Ajxq Hpqjc Esp - Enthält einen kabellosen Handscanner und eine industrielle Basisstation (Datalogic-Produkt). - Eine separate Schnittstelle verbindet den Barcode-Leser mit der Steuerung. Grafisch einfache Zuordnung der ausgelesenen Daten zum Maschinensteuerungssystem, sofern der Barcode alle notwendigen Produktionsdaten beinhaltet.

Durumu: kullanılmış, Üretim yılı: 2011, Fonksiyonellik: tamamen fonksiyonel, Bu ikinci el SCM Tech Z2 CNC işleme merkezi, 2011 yılında üretilmiş olup şu anda Belçika'da bulunmaktadır. Bu ahşap işleme makinesi, 2700 x 1300 mm çalışma alanı, 24.000 dev/dak'ya kadar yüksek hızlı iş mili ve 7,5 kW motoruyla çok çeşitli ahşap uygulamalarında hassasiyet ve verimlilik sunar. Isdpfxsxq Hpdj Ac Eotp Avantajlar: Geniş Çalışma Alanı. Yüksek İş Mili Hızı. Çeşitli Delme ve Freze İşleme Yeteneği. Takımlarda ve Takım Değişiminde Esneklik.

Durumu: mükemmel (kullanılmış), Üretim yılı: 2021, 5 eksenli çalışma merkezi BIESSE Rover 1632 mükemmel durumda. Iodpjxp Rx Hsfx Ac Estp

Durumu: mükemmel (kullanılmış), İşleme merkezi Morbidelli Author 444 4 eksen 4400 x 1300 mm Itsdpfxoxpumbe Ac Esp

Durumu: iyi (kullanılmış), Üretim yılı: 2016, çalışma saatleri: 14.000 h, Fonksiyonellik: tamamen fonksiyonel, makine/araç numarası: AA2/004582, X ekseni hareket mesafesi: 3.120 mm, Y ekseni hareket mesafesi: 1.320 mm, eksen sayısı: 5, Çok iyi durumda kullanılan SCM M100 5 eksenli CNC makinesi satıyoruz. Zorunluluktan değil, farklı gereksinimlere sahip yeni bir makine sipariş ettiğimiz için satıyoruz. Itedpfxjxpt U Ro Ac Ejp - Vakum tutucular dahil - Takımlar hariç - Takılı hava üfleme memesi dahil (yoğun MDF frezeleme sırasında takım aşınmasını olumlu etkiler) Diğer ayrıntılar talep üzerine.

Durumu: mükemmel (kullanılmış),
