Maschinen Fromm

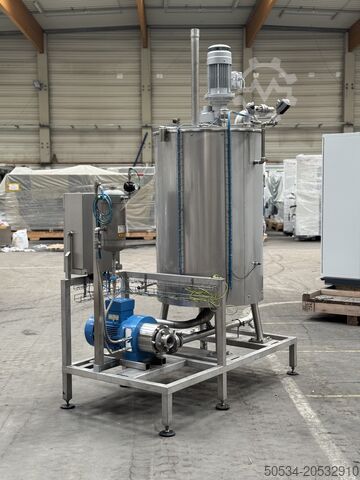

Durumu: kullanılmış, Üretim yılı: 2013, Fonksiyonellik: tamamen fonksiyonel, Akışkan kauçuk-toluen karışımları ve diğer sıvılar için kompakt karıştırıcı ve hat içi miksere sahip kauçuk çözelti karıştırma tesisi ATEX sertifikalı Sürüm Ex II 1/2G c IIB T3 Termosifon sistemli hat içi mikser Tip 450LS Silverson Karıştırma kapasitesi (su): 25.000 l/h Motor devri: 3000 d/d Kompakt karıştırıcı Tip ARW-2081 (EX) Motor devri: 129 d/d Karıştırıcı şaft çapı: 30mm Iiedpfx Ajxwxzrjc Eei Boyutlar ve ağırlıklar Boyutlar (UxGxY): 1800 x 1000 x 1710 mm Ağırlık: yaklaşık. 1320 kilo

Durumu: mükemmel (kullanılmış), Üretim yılı: 1985, Universal Mikser Bu kompakt paslanmaz çelik cihaz (hazne/karıştırma aparatı), katı, sıvı veya yumuşak ürünlerin (uygun karıştırma uçları ile) çok kısa bir sürede ezilmesi, karıştırılması, süspanse edilmesi, homojenizasyonu ve vakumlanması için tasarlanmıştır. Mikser, üretilen ürünlerin büyük bir kısmı için evrensel olarak kullanılabilen standart bir bıçak ile sunulmaktadır. İlave karıştırma uçları üreticiden temin edilebilir. Teknik Özellikler: Kapasite: 12 litre Motor gücü: 1,5 / 1,9 kW Motor devri: 420 ve 2.800 /dak Ek donanım: • vakuma dayanıklı • vakum ölçer • vakum pompası Iijdpfxexrfwis Ac Eoi • Hazne ısıtılabilir/soğutulabilir • Kontrol camlı ve kazıyıcılı paslanmaz çelik kapak

Durumu: kullanılmış, depo kapasitesi: 630 l, GENERAL Design: upright Internal diameter: 800 mm Heating/cooling: available Insulation: available Max. allowable operating overpressure: 1.0 bar Agitator: inclined blade agitator Support type: feet Location: Bremen Technical documents: drawing Cylinder temperature control: double jacket Nameplate: Volume: 630 liters Material (double jacket): V2A 1.4301 (AISI304) Product-contact material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 1,000 mm Previous use: chemicals TANK Number of feet: 4 pcs HEATING/COOLING JACKET Temperature control bottom: double jacket INSULATION Insulation shell material: stainless steel EQUIPMENT Manhole / dome: on top cover Outlet: available Iiodpfxoxqbuuo Ac Eei MATERIAL SPECIFICATION Feet material: stainless steel AGITATOR Agitator arrangement: off-center in top cover

Durumu: kullanılmış, depo kapasitesi: 1.023 l, GENEL Donanım: Hava alımı/çıkışı, Küresel vana Yapı şekli: Konteyner Açıklamalar: Şasi Fe (galvanizli) Devir: 97 d/dk İç çap: 1.080 mm Toplam yükseklik: 1.950 mm Güç: 0,75 kW Karıştırıcı: Kiriş tipi karıştırıcı Taban tipi: Şasi Lokasyon: Bremen Teknik dokümanlar: Çizim, AB Makine Direktifi gereği montaj beyanı, Montaj talimatı Tip etiketi: Hacim: 1.023 litre Ürüne temas eden malzeme: V2A 1.4301 (AISI304) Durum: Fabrika çıkışı yeni Silindirik yükseklik: 1.000 mm TANK Maks. çalışma sıcaklığı tank / °C: 80 °C DONANIM Ijdpjxqbunefx Ac Esii Adam deliği / Kapak: Üst kapağında, el deliği Çıkış: DN50 DIN 11851 MALZEME ÖZELLİĞİ Dış yüzey: Parlak haddelenmiş IIIc KARIŞTIRICI Gerilim Volt: 400 Volt Karıştırıcı konumu: Üst kapakta merkezi

Durumu: kullanılmış, depo kapasitesi: 5.000 l, GENERAL INFORMATION Features: Lifting lugs Design: Suspended Remarks: 2 vessels (6169-3+5) with broken intermediate flange at the gearbox Speed: 26 - 101 rpm Internal diameter: 1,800 mm Explosion protection: Motor is explosion-proof (compliance with the applicable ATEX regulations under local conditions must be verified) Total height: 4,200 mm Heating/Cooling: available Power: 6.8 kW Max. permissible operating temperature: 60 °C Max. permissible working pressure: 10.0 bar Seal: Mechanical seal with thermosiphon vessel Agitator type: Beam agitator Support design: Ring base Location: Bremen Technical documentation: Drawing, TÜV certificates Jacket temperature control: Half-pipe coil Nameplate: Volume: 5,000 liters Jacket volume: 98.0 liters Cylinder wall thickness: 6.0 mm Jacket material: Stainless steel V2A 1.4541 (AISI304) Product-contact material: Stainless steel V2A 1.4541 (AISI321) Condition: used Cylindrical height: 1,750 mm Previous application: Chemicals VESSEL Max. operating temperature vessel / °C: 60 °C HEATING/COOLING JACKET Temperature control bottom: Half-pipe coil EQUIPMENT Manway / Dome: in the top head Outlet: Flange DN80 Note: slight residues MATERIAL SPECIFICATION Foot material: Steel AGITATOR Agitator manufacturer: Ekato Voltage: 380/660 Volt Iodpfjxqbuhjx Ac Ejii Current disruptor: Agitator mounting: center-top TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 5.4 mm Top head wall thickness: 9.0 mm

Durumu: kullanılmış, depo kapasitesi: 8.000 l, GENERAL Equipment: crane lugs Design: suspended Remarks: 3 feet made of V2A Speed: 61 rpm Internal diameter: 2,100 mm Total height: 5,500 mm Power: 22 kW Agitator: paddle agitator Support type: feet (claw feet) Location: Bremen Nameplate: Volume: 8,000 liters Cylinder wall thickness: 6 mm Product-contact material: V2A 1.4541 (AISI321) Condition: used Cylindrical height: 2,500 mm Last application: chemical industry EQUIPMENT Manhole / dome: in the top head Outlet: flange DN100 Note: slight residues MATERIAL SPECIFICATION Feet material: stainless steel AGITATOR Agitator manufacturer: Ekato Voltage: 230/400 V Agitator arrangement: central in the top head Iiodpfx Asxqbrmoc Eoi TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 6 mm Top wall thickness: 8 mm

Durumu: kullanılmış, depo kapasitesi: 1.000 l, GENEL Yapı tipi: dikey Notlar: Tank çıkışı, tank ayaklarının ötesine uzanıyor, tankın kurulumu için uygun şekilde altına destek yerleştirilmeli; Iodpfx Aoxqbq Asc Eoii Teslimat kapsamında 1 adet gevşek karbon çelik ayaklı sehpa dahildir; toplam yükseklik ayaklı sehpa dahil; Devir sayısı: 4,5 - 34 RPM İç çap: 1.100 mm Toplam yükseklik: 3.400 mm Isıtma/soğutma: mevcut güç: 2,2 kW Karıştırıcı: Çapa tipi karıştırıcı Ayak tipi: Ayaklı Lokasyon: Bremen Silindir sıcaklık kontrolü: Çift cidarlı Hacim: 1.000 litre Çift cidar malzemesi: V2A 1.4301 (AISI304) Ürünle temas eden malzeme: V2A 1.4301 (AISI304) Durum: kullanılmış Silindirik yükseklik: 1.100 mm Son kullanım amacı: gıda KARIŞTIRICI Voltaj: 220/380 Volt Taban yatağı: Karıştırıcı düzeni: üst kapakta merkezde Karıştırıcı donanımı: Plastik sıyırıcılı çapa tipi (fotoğraflara bakınız)

Durumu: kullanılmış, depo kapasitesi: 3.000 l, GENERAL Design: upright Outer diameter: 1,450 mm Inner diameter: 1,400 mm Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX directives under local conditions must be verified) Total height: 3,750 mm Heating/Cooling: available Power: 2.2 kW Agitator: anchor agitator Base type: feet Location: Bremen Iiedpfxjxqbqco Ac Eei Cylinder temperature control: double jacket Volume: 3,000 liters Double jacket material: steel Product contact material: V4A 1.4571 (AISI316) Condition: used Cylindrical height: 1,650 mm Last application: chemical VESSEL Number of feet: 3 pieces HEATING/COOLING JACKET Bottom temperature control: double jacket EQUIPMENT Manhole/hatch: in the top cover Outlet (alternative input): 140 mm MATERIAL SPECIFICATION Flange material: steel Feet material: steel AGITATOR Voltage: 380 volts Bottom bearing:

Durumu: kullanılmış, Üretim yılı: 2000, depo kapasitesi: 6.779 l, GENEL BİLGİLER Yapı tipi: asılı Üretim yılı: 2000 Notlar: Taşıyıcı halka Fe'den Devir sayısı: 114 dev/dak İç çap: 1.800 mm Toplam yükseklik: 4.550 mm Güç: 37 kW Karıştırıcı tipi: Kiriş tipi karıştırıcı Taban şekli: Kesilmiş halka Lokasyon: Bremen Tip etiketi: Hacim: 6.779 litre Ürünle temas eden malzeme: V2A 1.4301 (AISI304) Durum: kullanılmış Silindirik yükseklik: 2.200 mm Iedpjxqbp Sjfx Ac Ejii Son kullanım amacı: Kimya DONANIM Adam deliği/kapağı: üst kapakta Çıkış: Flanş DN100 Not: Hafif kalıntılar, adam deliği kapağı eksik KARIŞTIRICI Karıştırıcı üreticisi: Fluid Gerilim: 400/690 Volt Karıştırıcı düzenlemesi: üst kapakta ortada

Durumu: kullanılmış, depo kapasitesi: 3.000 l, GENERAL Design: upright Notes: external steel components sandblasted and primed; top plate also heatable/coolable Outer diameter: 1,450 mm Inner diameter: 1,400 mm Explosion protection: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified) Total height: 4,300 mm Heating/cooling: available Power: 2.2 kW Agitator: anchor agitator Mounting type: feet Cylinder temperature control: double jacket Volume: 3,000 liters Double jacket material: steel Product-contacting material: V4A 1.4571 (AISI316) Condition: used Cylindrical height: 1,650 mm Last application: chemical industry TANK Number of feet: 3 pcs HEATING/COOLING JACKET Base plate temperature control: double jacket EQUIPMENT Manhole / dome: in top plate Outlet (alternative input): 135 mm Note: slight residues Ijdpfx Ajxqbp Eoc Eeii MATERIAL SPECIFICATIONS Material of feet: steel AGITATOR Voltage: 220/380 Volt Agitator arrangement: centered in top plate

Durumu: kullanılmış, depo kapasitesi: 7.500 l, GENERAL Design: vertical Speed: 102 rpm Internal diameter: 1,800 mm Total height: 4,650 mm Power: 2.2 kW Agitator: impeller agitator Mounting type: feet Location: Bremen Nameplate: Volume: 7,500 liters Cylinder wall thickness: 2 mm Product-contacting material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 3,000 mm Previous application: paint industry TANK Number of feet: 3 EQUIPMENT Manhole / dome: in cylinder Outlet: DN50 DIN 11851 Note: light residues Iisdpfsxqbprsx Ac Esi AGITATOR Agitator manufacturer: Inotec GmbH Voltage: 230/400 V TECHNICAL DATA / DIMENSIONS Base wall thickness: 2 mm

Durumu: kullanılmış, depo kapasitesi: 16.000 l, GENERAL Equipment: crane lugs Design: upright Speed: 19.9 rpm Inner diameter: 2,480 mm Total height: 4,900 mm Power: 5.5 kW Agitator: beam agitator Base type: feet Location: Bremen Technical documentation: drawing Nameplate: Volume: 16,000 liters Wetted material: V2A 1.4301 (AISI 304) Condition: used Cylindrical height: 3,000 mm Last intended use: water-soluble paint TANK Number of legs: 3 pcs EQUIPMENT Manhole / dome: on cylindrical shell, on top head (DN 500) Outlet: flange DN125 Iisdpfxexqbplo Ac Eoi Note: slight residues, dents on shell MATERIAL PROPERTIES Leg material: stainless steel AGITATOR Voltage: 380 V Bottom bearing: Agitator mounting: centered in the top head

Durumu: kullanılmış, depo kapasitesi: 950 l, GENERAL Design: vertical Notes: Frame with pedestal made of steel is included in the scope of delivery Speed: 20 - 120 RPM Outer diameter: 1,250 mm Inner diameter: 1,000 mm Total height: 3,350 mm Heating/cooling: available Insulation: available Power: 1.5 kW Top cover: removable / hinged top cover Agitator: paddle agitator Mounting: frame Location: Bremen Cylinder temperature control: half-pipe coil Volume: 950 liters Double-jacket material: V2A 1.4301 (AISI 304) Product-contact material: V4A 1.4435 (AISI 316) Iiodpfjxqbpfox Ac Esi Condition: used Cylindrical height: 1,120 mm Previous application: bitumen HEATING / COOLING JACKET Bottom temperature control: half-pipe coil INSULATION Insulation jacket material: aluminium EQUIPMENT Manhole / cover: handhole Outlet: DN50 flange Note: light residues, pressure marks on the insulation jacket MATERIAL SPECIFICATION Flange material: steel Foot material: steel AGITATOR Voltage: 400 V Agitator installation: centrally mounted in the top cover Agitator details: 1 paddle pair made of mild steel; 1 shaft coupling piece is missing (see photos)

Durumu: kullanılmış, depo kapasitesi: 10.000 l, GENERAL INFORMATION Equipment: Spray head, crane lugs Design: upright Remarks: Sheet metal cutouts in the top cover (see photos); 2 electric immersion heaters each (functionality not guaranteed) Speed: 11 / 17 rpm Outer diameter: 2,680 mm Inner diameter: 2,550 mm Total height: 3,850 mm Heating/cooling: present Insulation: present Power: 2 / 3 kW Agitator: anchor agitator Iodpexqbnbjfx Ac Eeii Base type: height-adjustable feet Location: Bremen Nameplate: Volume: 10,000 liters Product-contacting material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 2,000 mm Last use: bitumen TANK Number of feet: 4 units HEATING/COOLING JACKET Internal temperature control: immersion heaters INSULATION Insulation jacket material: stainless steel EQUIPMENT Manhole / access hatch: on top (DN 500) Outlet (alternative entry): 60 mm Note: slight residues, dents on the insulation jacket MATERIAL SPECIFICATION Feet material: stainless steel AGITATOR Voltage: 380 Volt Bottom bearing: Agitator mounting: off-center on top cover

Durumu: kullanılmış, depo kapasitesi: 17.300 l, GENERAL Design: vertical Remarks: 1 tank (internal no. 7081-3) with a minor dent and a cut-off connection on the top head Speed: 47 / 95 rpm Internal diameter: 2,900 mm Explosion protection: Motor is explosion-proof (compliance with current ATEX directives under local conditions must be verified) Overall height: 5,100 mm Power: 17 / 27 kW Agitator: beam agitator Base type: feet Location: Bremen Technical documentation: Drawing, TÜV certificates Nameplate: Volume: 17,300 liters Cylinder wall thickness: 8 mm Product-contacting material: V2A 1.4301 (AISI304) Condition: used Iedsxqbmwepfx Ac Esii Cylindrical height: 1,800 mm Last application: paint industry TANK Max. operating temperature tank / °C: 100 °C Specific medium weight ( t/m³): 1.2 (t/m³) Number of feet: 4 pieces EQUIPMENT Manhole / dome: in top head (DN 600), handhole Outlet (alternative entry): 50 mm Note: slight residues MATERIAL SPECIFICATIONS Feet material: steel AGITATOR Voltage: 400 Volt Agitator mounting: central on top head TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 4 mm

Durumu: kullanılmış, depo kapasitesi: 17.200 l, GENERAL Design: vertical Remarks: Outlets partially cut off; 1 vessel (internal no. 7083-2) has a dent in the cylinder Speed: 47 / 95 rpm Internal diameter: 2,508 mm Explosion protection: Motor is explosion-proof (compliance with applicable ATEX guidelines under local conditions must be verified) Overall height: 6,000 mm Power: 17 / 27 kW Agitator: Beam agitator Base type: feet Location: Bremen Technical documentation: Drawing, TÜV (German technical inspection association) papers Name plate: Volume: 17,200 liters Cylinder wall thickness: 4.0 mm Product-contacting material: V2A 1.4301 (AISI 304) Condition: used Cylindrical height: 2,750 mm Last application: Paint industry VESSEL Max. operating temperature vessel / °C: 100°C Specific gravity of medium (t/m³): 1.2 (t/m³) Number of feet: 4 pcs EQUIPMENT Manhole / dome: in top head (DN 600), handhole Outlet (alternative entry): 50 mm Note: slight residues/attachments Iodpfx Acsxqbmko Ejii MATERIAL SPECIFICATION Foot material: steel AGITATOR Voltage: 400 Volt Agitator positioning: centered in top head TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 3.5 mm Top head wall thickness: 4.0 mm

Durumu: kullanılmış, depo kapasitesi: 8.000 l, GENERAL Design: vertical Comments: One vessel with a dent in the cylinder and in the fan cover of the agitator motor Speed: 45 / 90 rpm Internal diameter: 1,658 mm Explosion protection: Motor is explosion-proof (compliance with current ATEX regulations under local conditions must be verified) Iiodpexqbl Tsfx Ac Eoi Total height: 5,950 mm Power: 9.9 / 16 kW Agitator: Beam agitator Base type: Feet Location: Bremen Technical documentation: Drawing, TÜV certificates Nameplate: Volume: 8,000 liters Cylinder wall thickness: 5 mm Product-contact material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 3,270 mm Last application: Chemical industry VESSEL Max. operating temperature (vessel) / °C: 100 °C Specific gravity of medium (t/m³): 1.2 (t/m³) Number of feet: 3 units EQUIPMENT Manhole / Dome: Top head (DN 500) Outlet: Flange DN50 Note: slight residues MATERIAL PROPERTIES Foot material: Steel AGITATOR Voltage: 400 Volt Agitator mounting: Centered on top head TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 5 mm

Durumu: kullanılmış, depo kapasitesi: 6.500 l, GENERAL Design: vertical Remarks: minor dents possible; calotte screws partially bent; Speed: 57 rpm Inner diameter: 2,200 mm Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX directives under local conditions must be verified) Total height: 3,750 mm Power: 1.5 kW Isdpfx Acoxqbl Ho Esii Agitator: inclined blade agitator Support type: height-adjustable feet Location: Bremen Volume: 6,500 litres Product-contact material: V2A 1.4301 (AISI304) Condition: used Cylindrical height: 1,500 mm Last application: aerosol production TANK Number of feet: 4 pcs EQUIPMENT Manhole / dome: in top (DN 500) Outlet (alternative input): 50 mm MATERIAL PROPERTIES Feet material: stainless steel AGITATOR Voltage: 230/400 V Interference suppressor:

Durumu: kullanılmış, depo kapasitesi: 3.120 l, GENERAL Design: Suspended Remarks: 1 reflux condenser is included (total height specified including reflux condenser); lugs made of Fe; ground-off connections in the cylinder (see photos) Speed: 13 - 72 rpm Outer diameter: 1,460 mm Inner diameter: 1,400 mm Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified) Total height: 5,400 mm Heating/Cooling: Available Power: 7.5 kW Agitator: Anchor agitator Mounting type: Lugs Location: Bremen Technical documentation: Drawing Cylinder temperature control: Double jacket Volume: 3,120 liters Double jacket volume: 122.0 liters Cylinder wall thickness: 4 mm Double jacket material: V2A 1.4541 (AISI 304) Product-contacting material: V2A 1.4541 (AISI 321) Condition: Used Cylindrical height: 1,610 mm Last application: Adhesive production HEATING/COOLING JACKET Iedpfxexqblgo Ac Eeii Bottom temperature control: Double jacket EQUIPMENT Manhole/dome: In the top head (DN 400) Outlet: Flange DN80 Note: Light residues AGITATOR Voltage: 380/660 Volts Agitator arrangement: Centered in the top head TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 4 mm Top head wall thickness: 6 mm

Durumu: kullanılmış, depo kapasitesi: 1.100 l, GENERAL Equipment: Ball valve Design: Vertical Speed: 0 - 225 RPM Internal diameter: 1,200 mm Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified) Total height: 2,400 mm Power: 1.85 kW Max. overpressure: 1.00 bar Ijdpsxqbk Asfx Ac Ejii Agitator: Inclined blade agitator Support type: Feet Location: Bremen Technical documentation: Drawing Nameplate: Vacuum: 0.50 bar Volume: 1,100 litres Cylinder wall thickness: 4.0 mm Product contact material: V2A 1.4301 (AISI304) Condition: Used Cylindrical height: 850 mm Previous application: Pharmaceutical TANK Max. operating temperature (tank) / °C: 50 °C Number of feet: 4 pcs EQUIPMENT Manhole / dome: In top head (DN 400) Outlet: DN25 DIN 11851 MATERIAL SPECIFICATION Feet material: Stainless steel AGITATOR Voltage: 230/400 Volt Agitator arrangement: Eccentric in top head Agitator documents: Agitator documentation available TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 3.0 mm Top wall thickness: 4.0 mm

Durumu: kullanılmış, Üretim yılı: 2002, depo kapasitesi: 8.640 l, GENEL Ijdsxqbkispfx Ac Eoii Donanım: Havalandırma, vinç halkaları Yapı tipi: dik (dikey) Üretim yılı: 2002 Notlar: Karıştırıcı mili kesilmiş; tankın dış yüzeyinde kaynaklı cıvatalar (fotoğraflara bakınız); içte 1 boru hattı; silindirik menhol yaklaşık 340 x 440 mm Devir hızı: 14 / 30 d/dk İç çap: 1.980 mm Toplam yükseklik: 4.200 mm Güç: 1.2 / 2.2 kW Karıştırıcı tipi: bar tipi karıştırıcı Ayak tipi: Yüksekliği ayarlanabilir ayaklar Lokasyon: Bremen Tip etiketi: Hacim: 8.640 litre Ürüne temas eden malzeme: V2A 1.4301 (AISI304) Durum: ikinci el Silindirik yükseklik: 2.500 mm Son kullanım amacı: Yağlayıcı üretimi TANK Ayak sayısı: 3 adet DONANIM Menhol / Kapak: Silindirde, üst tabanda (DN 500) Tahliye (Alternatif giriş): 50 mm Not: Hafif kalıntılar mevcut, çıkış ucu kesilmiş MALZEME YAPISI Ayak Malzemesi: Paslanmaz çelik KARIŞTIRICI Gerilim Volt: 400 Volt Karıştırıcı yerleşimi: Üst tabanda ortada

Durumu: kullanılmış, depo kapasitesi: 5.500 l, GENEL BİLGİLER Donanım: Vinç halkaları Yapı tipi: Dikey Notlar: Adam deliği çapı yaklaşık 390 mm Devir: 1460 d/dak İç çap: 1.600 mm Toplam yükseklik: 4.350 mm Güç: 15 KW Karıştırıcı: Jet karıştırıcı Ayak tipi: Yüksekliği ayarlanabilir ayaklar Lokasyon: Bremen Hacim: 5.500 litre Ürüne temas eden malzeme: V4A 1.4571 (AISI316) Durum: Kullanılmış Silindirik yükseklik: 2.500 mm Son kullanım amacı: Yağlayıcı üretimi TANK Ayak sayısı: 3 adet DONANIM Adam deliği / Kapağı: Üst kapakta Çıkış: Mevcut Iijdpfsxqbi Sex Ac Eji Not: Hafif yapışmış kalıntılar MALZEME ÖZELLİKLERİ Ayak malzemesi: Paslanmaz çelik KARIŞTIRICI Karıştırıcı üreticisi: Fluid Voltaj: 380 Volt Karıştırıcı yerleşimi: Eksantrik, üst kapakta

Durumu: kullanılmış, depo kapasitesi: 1.100 l, GENERAL INFORMATION Design: Suspended Remarks: Former support brackets were removed during dismantling and are no longer available; one heating connection cut off; vessel exhibits heavier residues. Speed: 274 rpm Outer diameter: 1,090 mm Inner diameter: 1,040 mm Explosion protection: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified) Total height: 3,200 mm Heating/cooling: available Power: 2.2 kW Seal: Mechanical seal with thermosiphon vessel Agitator: Inclined blade agitator Location: Bremen Cylinder temperature control: Double jacket Volume: 1,100 liters Double jacket material: V2A 1.4301 (AISI304) Isdpjxqbi Ejfx Ac Ejii Product-contact material: V4A 1.4429 (AISI316) Condition: used Cylindrical height: 1,200 mm Previous application: adhesive production HEATING/COOLING JACKET Base temperature control: Double jacket EQUIPMENT Manway / dome: in the top head (DN 400) Outlet: flange DN40 Note: Manway cover plated AGITATOR Agitator manufacturer: Stelzer Voltage: 230/400 Volts Agitator arrangement: eccentrically mounted in top head Agitator condition: Agitator element partially bent (see photos)

Durumu: kullanılmış, depo kapasitesi: 6.100 l, GENERAL Equipment: Level indicator (no guarantee) Design: vertical Remarks: Piping inside the tank (see photos); manhole diameter approx. 400 mm Internal diameter: 1,990 mm Total height: 2,800 mm Base type: Height-adjustable feet Location: Bremen Volume: 6,100 liters Cylinder wall thickness: 2.5 mm Product-contact material: V2A 1.4541 (AISI321) Condition: used Cylindrical height: 2,000 mm Iiedpoxqbirsfx Ac Esi Last application: CIP tank in a brewery TANK Number of feet: 4 pcs FEATURES Manhole / Dome: on the cylinder Outlet: Flange DN50 MATERIAL SPECIFICATIONS Feet material: Stainless steel TECHNICAL DATA / DIMENSIONS Bottom wall thickness: 2.5 mm

Durumu: kullanılmış, depo kapasitesi: 4.500 l, GENERAL Equipment: Crane lugs Construction type: upright Remarks: Half-pipe coil only in the lower area of the cylinder Speed: 1445 rpm Internal diameter: 1,500 mm Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified) Total height: 4,550 mm Heating/cooling: present Power: 5.5 kW Max. permissible operating overpressure: 6.0 bar Agitator: inclined blade agitator Support type: feet Location: Bremen Cylinder temperature control: half-pipe coil Nameplate: Volume: 4,500 liters Product-contact material: V4A 1.4401/04 (AISI 316) Iisdpfx Aoxqbilsc Eei Condition: used Cylindrical height: 2,390 mm Last intended use: chemicals VESSEL Number of feet: 4 pcs HEATING/COOLING JACKET Bottom temperature control: half-pipe coil EQUIPMENT Manhole/dome: in cylinder Outlet (alternative input): 55 mm Note: slight residues/adhesions MATERIAL SPECIFICATION Temperature control system material: AISI 316 (V4A) 1.4404 Feet material: stainless steel AGITATOR Voltage: 400 Volts Current interrupter: Agitator arrangement: centrally in the top head
