Yüzey Taşlama Makinesi Ziersch - ZT 24

Ziersch ZT 24

Flat Grinding Machine
Ziersch - ZT 24
MACH-ID 9344
Manufacturer: Ziersch
Model: ZT 24

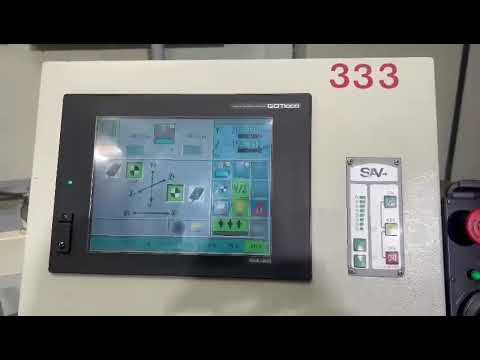

Control: Mitsubishi TOUCH Panel
Year of manufacture: 2010

---

Robust construction of all machine components from cast iron

* High machine weight for maximum rigidity
* Preloaded precision linear guides on the vertical and cross axes (Bosch Rexroth) for highest accuracy
* Scraped and Turcite-coated guideways on the longitudinal axis ensure excellent vibration dampening and a high-quality ground finish
* Hydraulic longitudinal movement with return cooling unit for optimal surface quality
* Electromechanical cross and vertical movements
* Measuring systems on the vertical axis (Heidenhain) for precise positioning
* Maintenance-free paper band filter system with tank up to 500 l and 2-bar pressure pump for effective cooling and flushing
* Integrated flushing channel
* Magnetic separator for pre-filtration in the paper band filter system
* Infinitely variable grinding spindle motor
* Machine lamp
* Table-mounted dressing device for maximum precision and surface quality
* Electro-permanent magnetic chuck (SAV) with integrated pole change and holding force adjustment
* Partial machine enclosure with sliding door and service door
* Effective splash protection and excellent accessibility
* Machine prepared for installation of a coolant mist extraction system

Control features:

* Very user-friendly and easy-to-operate Z control
* Automatic vertical feed increment with dressing amount correction
* Fully automatic grinding cycle with dressing cycles
* Simple operation via touchscreen
* Large, clearly arranged color display (10.4")
* Electronic handwheel usable on the vertical and cross axes

X-axis: 600 mm
Y-axis: 220 mm
Z-axis: 540 mm
Table length: 400 mm
Table width: 250 mm
Table load capacity: 250 kg
X-axis feed: 30,000 mm/min
Lsdpfx Aex Sw H Eeh Dohc
Z-axis feed: 30,000 mm/min
Grinding wheel dimensions: 250 x 38 x 50.8 mm
Power: 3.7 kW
Speed: 4,500 rpm
Coolant system: Yes
Y-axis feed: 30,000 mm/min
Length: 3,050 mm
Width: 2,050 mm
Height: 2,510 mm
Weight: 2,900 kg
