Bernardo Smart 410 x 1500 Pro

Bernardo Universal Lathe Smart 410 x 1500 Pro

Technical Specifications
Distance between centers: 1500 mm
Center height: 210 mm
Swing over bed: 420 mm
Swing over gap: 580 mm
Swing over cross slide: 255 mm
Bed width: 250 mm
Spindle bore: 52 mm
Spindle mount: DIN 55029, D1 – 6
Speed range (16): 45 – 1800 rpm
Longitudinal feed range (17): 0.05 – 1.7 mm/rev
Cross feed range (17): 0.025 – 0.85 mm/rev
Metric threads (42): 0.2 – 14 mm
Imperial threads (45): 2 – 72 TPI
Quill diameter: 50 mm
Quill travel: 140 mm
Quill taper: MT 4
Motor power: 3.0 / 4.5 kW
Machine dimensions (W x D x H): 2570 x 900 x 1600 mm
Weight approx.: 1400 kg

Product Features
• Prism bed made of cast iron, induction hardened and precision ground
• Electromechanical foot brake for reduced setup times

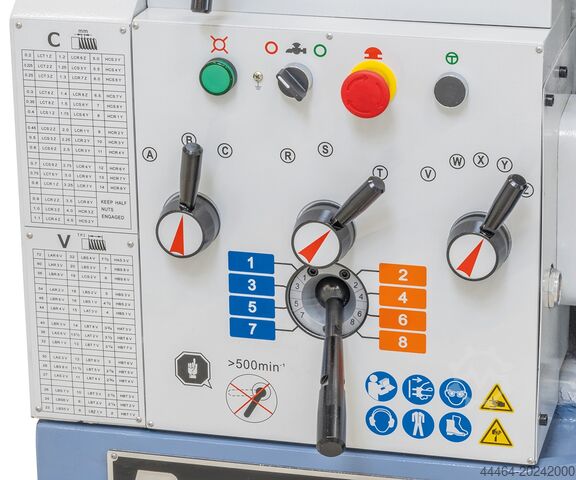

• Central, user-friendly controls for feeds and threads with leadscrew and feed rod
• Modern precision taper roller bearings for main spindle
• Oversized, hardened and precision-ground gears
• Hardened and ground gears and shafts, also in the feed gearbox
• Simple, smooth and precise speed and feed adjustments
• Adjustable tailstock for taper turning, handwheel with fine scale (0.02 mm)
Dcodpfoxl Dwujx Abvsn
• Removable gap bridge for machining large diameter workpieces

Scope of Delivery

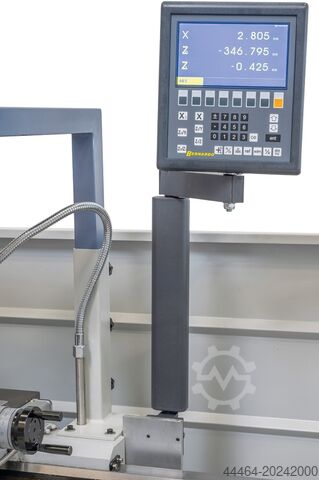

• 3-axis digital readout ES-12 V with LCD display
• 3-jaw chuck DK11-200 mm / D6
• Faceplate 350 mm
• Fixed steady rest – max. passage diameter 135 mm
• Follow rest – max. passage diameter 65 mm
• Coolant system
• Four-way toolpost
• Safety device for four-way toolpost
• Micrometer longitudinal stop
• Slip clutch
• Indexing stop with fine adjustment
• Thread dial indicator
• Motor with magnetic brake according to CE standards
• Foot pedal with brake function according to CE
• Initial fill with Shell Tellus 46
• LED machine lamp
• Change gears
• Reducing sleeve
• 2 center points
• Chip guard/rear splash guard
• Operating tools
