Kompresör + kurutucu + dikey tank seti

CORMAK LUFT 1500 INVERTER + N20S + BUTLA 500L

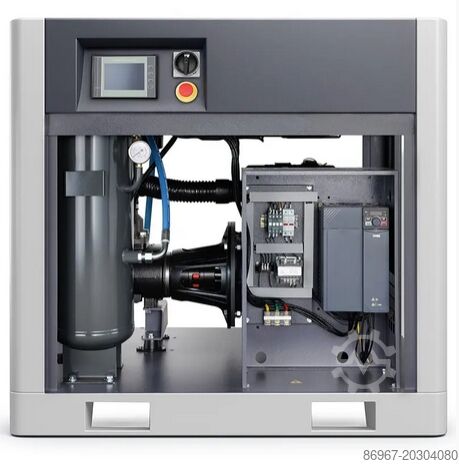

Durumu: yeni, Üretim yılı: 2025, Set including LUFT 1500 screw compressor with inverter, vertical 500 l air receiver with fittings, and IZBERG N20S dryer. The LUFT series screw compressor from the Polish brand CORMAK offers the latest solutions in pneumatics, combined with the use of high-quality materials and components. Low operating costs, user-friendly design, ergonomic and robust construction, as well as high unit efficiency, guarantee effective and trouble-free operation. Technical specifications LUFT 1500 with inverter: Motor power: 11 kW Voltage: 400V/50Hz Output at 0-6 bar: 1620 L/min Output at 6 bar: 1580 L/min Output at 8 bar: 1350 L/min Output at 10 bar: 1230 L/min Discharge connection diameter (G): 1" Dimensions: 1170 x 730 x 1020 mm Weight: 243 kg Technical specifications IZBERG N20S: Inlet/outlet pipe diameter (BSP): 1" Maximum working pressure: 10 bar Maximum inlet air temperature: ≤ 38°C Dew point temperature: 3°C Capacity: 2800 l/min Power: 0.58 kW Supply voltage: 230 V Dimensions (L x W x H): 420 x 700 x 690 mm Weight: 37 kg Refrigerant type and quantity: R134a, 550 g Technical specifications 500 l vertical receiver: Weight (kg): 145 Number of connections: 6 Connection sizes: 1.1/4", 2", 1/2" Dimensions: 209.8 x 60 cm Tank capacity (l): 500 Working pressure (bar): 11 Wall thickness (mm): 4 Diameter (mm): Ø 600 Hjdpfsxnyfmsx Ac Hefn Height (mm): 2098
